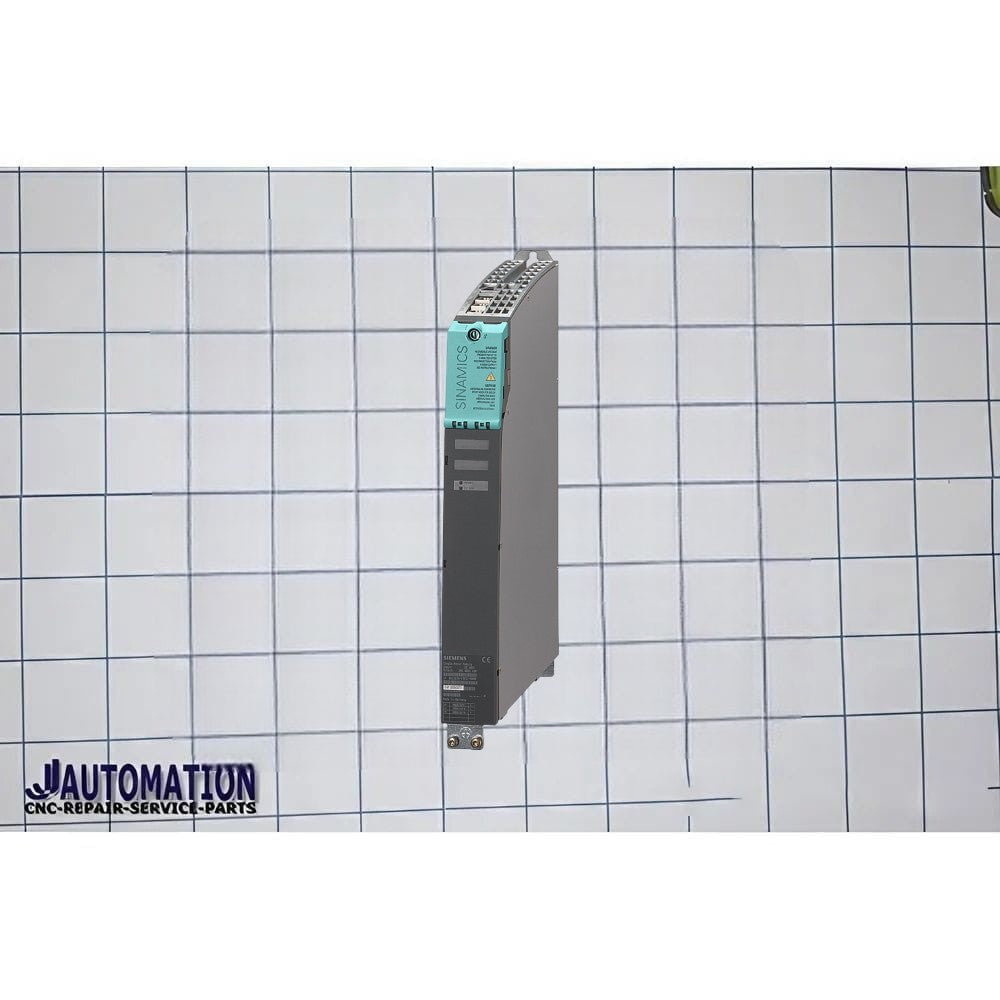

Siemens 6SL3420-1TE15-0AA1 SINAMICS S120 Single Motor Module
The Siemens 6SL3420-1TE15-0AA1 is a compact Booksize SINAMICS S120 Single Motor Module engineered for demanding industrial automation and motion control applications. Operating from a 510–720 V DC link supply, it delivers a 3-phase 400 V AC output with a rated output current of 5 A and a power rating of approximately 2.7 kW. The module features integrated Drive-CLiQ communication, optimized pulse patterns, advanced safety function support, and efficient internal air cooling. Its compact design makes it ideal for machine tools, packaging machinery, robotics, printing equipment, and multi-axis motion systems requiring precise motor control and high dynamic performance.
Key Specifications
| Parameter | Value |
|---|---|
| Product Family | SINAMICS S120 |
| Module Type | Single Motor Module |
| Part Number | 6SL3420-1TE15-0AA1 |
| Input Voltage | 510–720 V DC Link |
| Output Voltage | 3AC 400 V |
| Rated Output Current | 5 A |
| Power Rating | Approx. 2.7 kW |
| Frame Size | Booksize Compact |
| Cooling Method | Internal Air Cooling |
| Communication | Drive-CLiQ |
| Protection Class | IP20 |
| Safety Features | Supports SINAMICS Safety Functions |
Short Description
6SL3420-1TE15-0AA1 – Siemens SINAMICS S120 Booksize Compact Single Motor Module, 510–720 VDC input, 3-phase 400 VAC output, 5 A rated current, integrated Drive-CLiQ interface, internal air cooling, and advanced safety functionality for high-performance industrial motion control systems.
