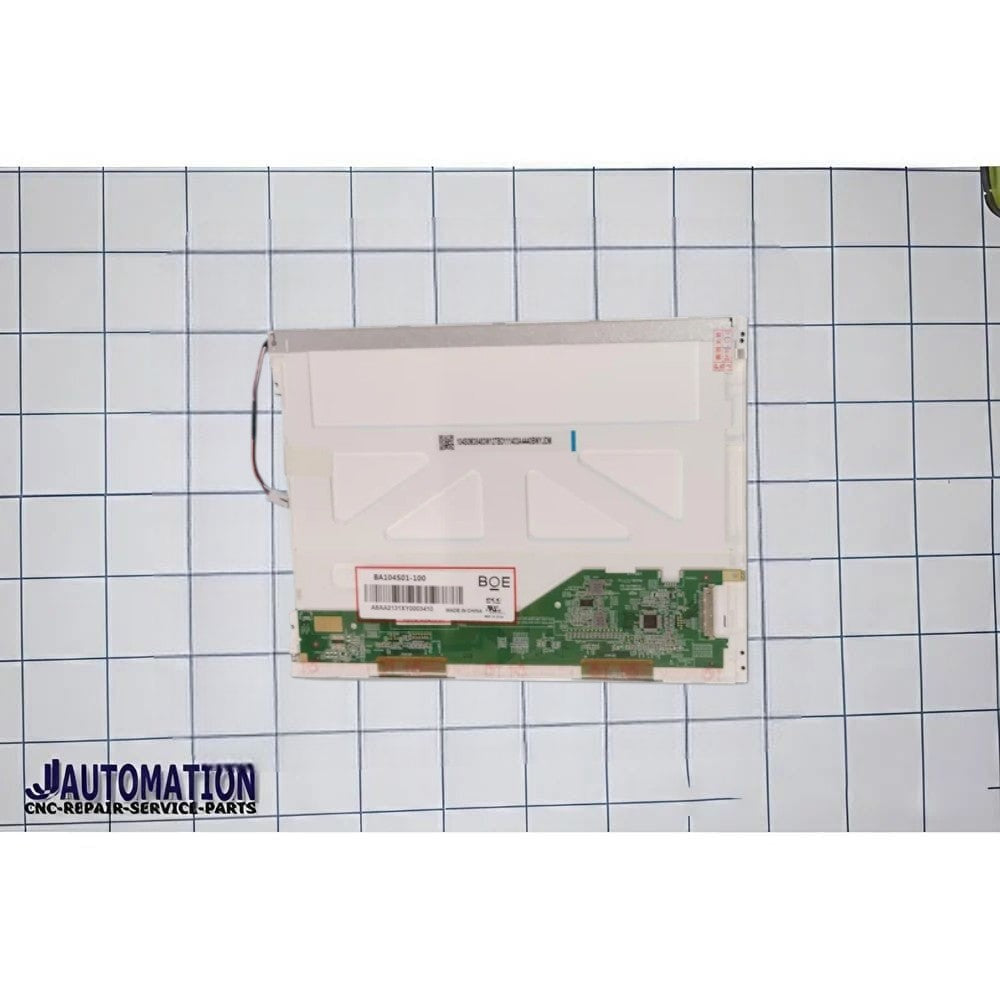

Boe BA104S01‑100 LCD Module
The BOE BA104S01-100 is an industrial-grade LCD panel — a raw display module designed for integration into equipment (e.g., industrial computers, medical displays, automation panels, embedded systems).
📊 Key Specifications
-
Display Size: 10.4″ diagonal (landscape)
-
Resolution: 800 × 600 pixels (SVGA)
-
Panel Type: a-Si TFT-LCD, transmissive, normally white
-
Interface: LVDS (Low-Voltage Differential Signaling), 20-pin connector
-
Brightness: Typically 400–500 cd/m² depending on supplier listing
-
Contrast Ratio: ~400:1 (some sources list 800:1 at typical)
-
Viewing Angles: ~70/70/60/70° (L/R/U/D)
-
Color Depth: ~262K colors (6-bit)
-
Backlight: WLED with long life (~30,000-50,000 h)
-
Dimensions: ~236 × 176.9 × 5.6 mm (panel outline)
-
Active Area: ~211.2 × 158.4 mm
-
Operating Temp: –20 °C to +70 °C
-
Storage Temp: –30 °C to +80 °C
-
Touchscreen: None (panel only)
