Description

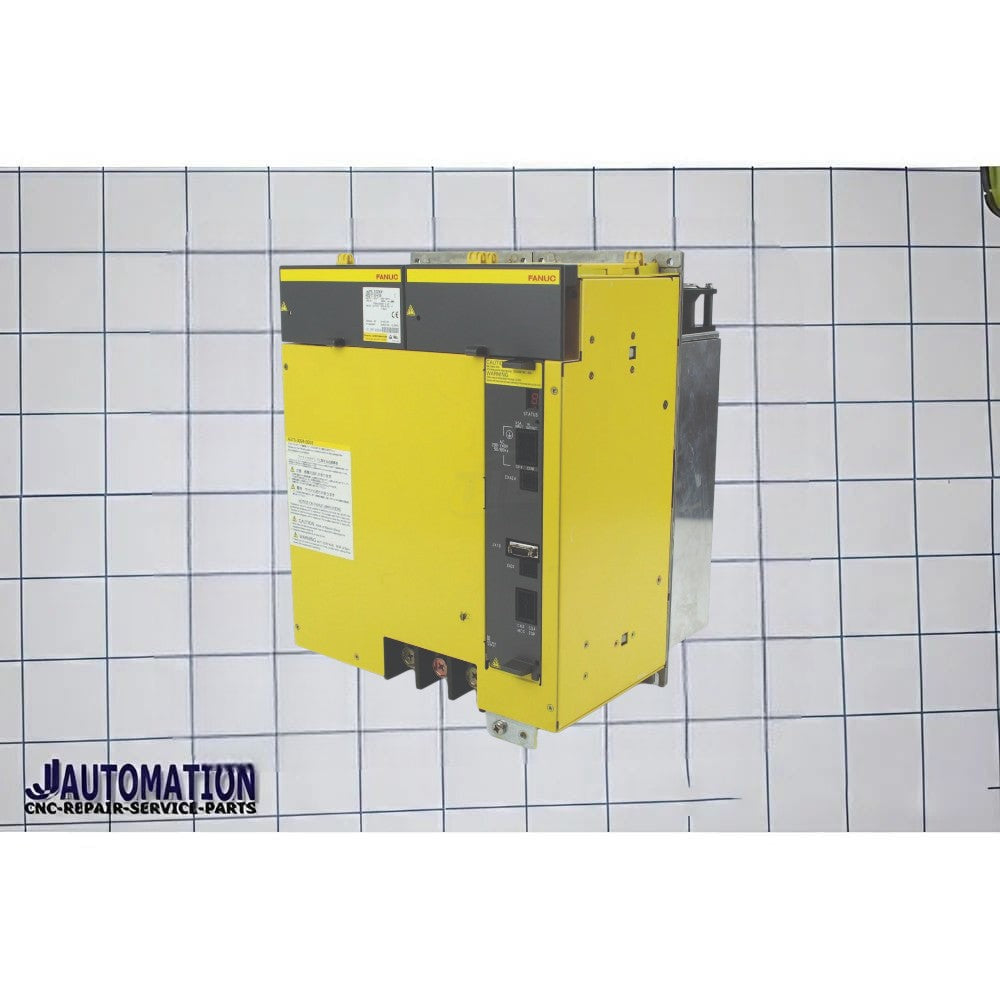

FANUC A06B-6150-H030 Power Supply Module (αi Series – AiPS-30HV)
The A06B-6150-H030 from FANUC is a high-performance αi series power supply module (AiPS-30HV) used in CNC machine tools to generate and regulate the DC bus power required for servo and spindle amplifier systems.
Detailed Product Description (Website Ready)
The FANUC A06B-6150-H030 is a medium-to-high capacity CNC power supply module designed for the αi drive system. It converts 3-phase AC input (400–480V) into a stable DC bus voltage (~565–679V DC), which is then distributed to servo and spindle amplifiers for precise multi-axis machine control.
This module is part of the AiPS-30HV class, widely used in industrial CNC machining centers, where multiple axes and spindle systems require stable and efficient power distribution.
It ensures synchronized operation of all connected drives, enabling accurate motion control, smooth spindle performance, and reliable machining under continuous industrial load.
Key Features & Benefits
AiPS-30HV Power Supply Module
Designed for efficient conversion of AC power into regulated DC bus supply for CNC drive systems.
~35 kW Power Capacity
Suitable for medium to large CNC machines with multi-axis configurations and spindle systems.
Stable DC Output (~565–679V DC)
Provides consistent voltage for servo and spindle amplifiers, ensuring smooth machine operation.
400–480V 3-Phase Industrial Input
Compatible with standard industrial power supply systems.
Multi-Drive Support via DC Bus
Powers multiple servo amplifiers and spindle drives through a shared DC link architecture.
Industrial Cooling System
Forced-air cooling design ensures stable operation under continuous heavy load conditions.
Technical Specifications (Typical)
- Model: A06B-6150-H030
- Series: FANUC αi (AiPS-30HV)
- Type: Power Supply Module
- Input Voltage: 400–480V AC (3-phase)
- Input Current: ~63A @ 400V
- Output Voltage: ~565–679V DC
- Power Rating: ~35 kW
- Frequency: 50/60 Hz
- Cooling: Forced air cooling
- Application: CNC servo & spindle DC bus power system
- Weight: ~11 kg (approx.)
Applications
- CNC machining centers
- Milling and turning machines
- Industrial automation systems
- Multi-axis production machines
- Servo and spindle drive systems
Important Notes
- This is a central DC power supply module, not a servo amplifier or spindle drive.
- It operates as part of a shared DC bus system feeding multiple drive units.
- Commonly serviced via repair or exchange programs due to high-voltage industrial design and wear over time.
