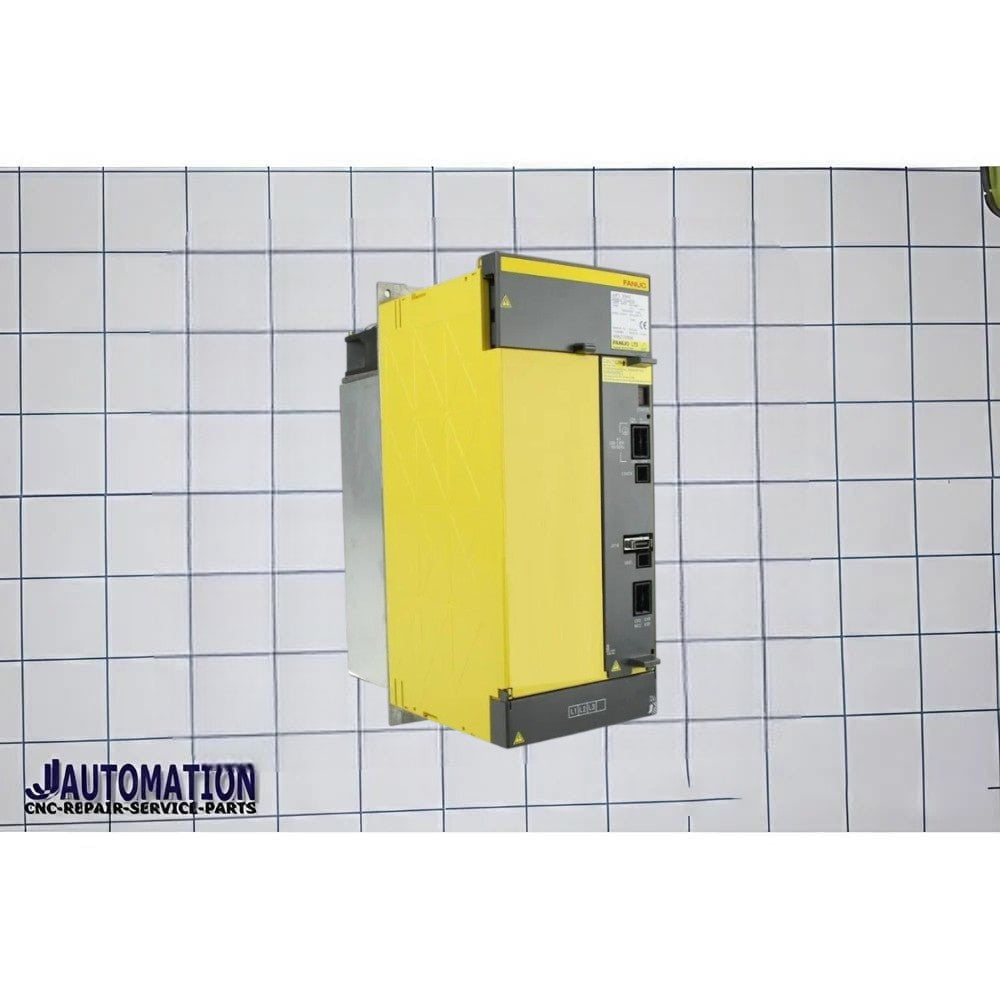

Fanuc ai Power Supply 200VAC-input A06B-6150-H075

A06B-6150-H075 – Description

A06B-6150-H075 is a FANUC Alpha i series power supply module, specifically:

ALPHA i Power Supply Module (AiPS-75HV)

---

🔧 What it is

It is a high-voltage power supply unit (PSM) used in FANUC CNC drive systems.
Its main job is to convert incoming AC power into DC power and distribute it to:

• Servo amplifiers (axis drives)
• Spindle amplifiers

---

⚙️ Key Description / Function

• Supplies stable DC bus power to the entire drive system
• Works as the central power source in Alpha i drive architecture
• Supports multi-axis CNC machines and automation systems
• Ensures continuous, regulated power for precise motion control

---

📊 Typical Technical Details

• Model: AiPS-75HV
• Input: 400–480V AC, 3-phase
• Output: ~565–679V DC
• Power rating: ~82 kW
• Frequency: 50/60 Hz

---

🏭 Where it is used

• CNC machining centers
• Turning centers (lathes)
• Industrial automation systems

It typically works alongside:

• Servo amplifier modules (SVM)
• Spindle amplifiers (SPM)

---

🧠 Simple Explanation

Think of it like this:

👉 A06B-6150-H075 = Main power unit of a FANUC drive system
👉 It feeds energy to all axis and spindle drives so the machine can move and cut
