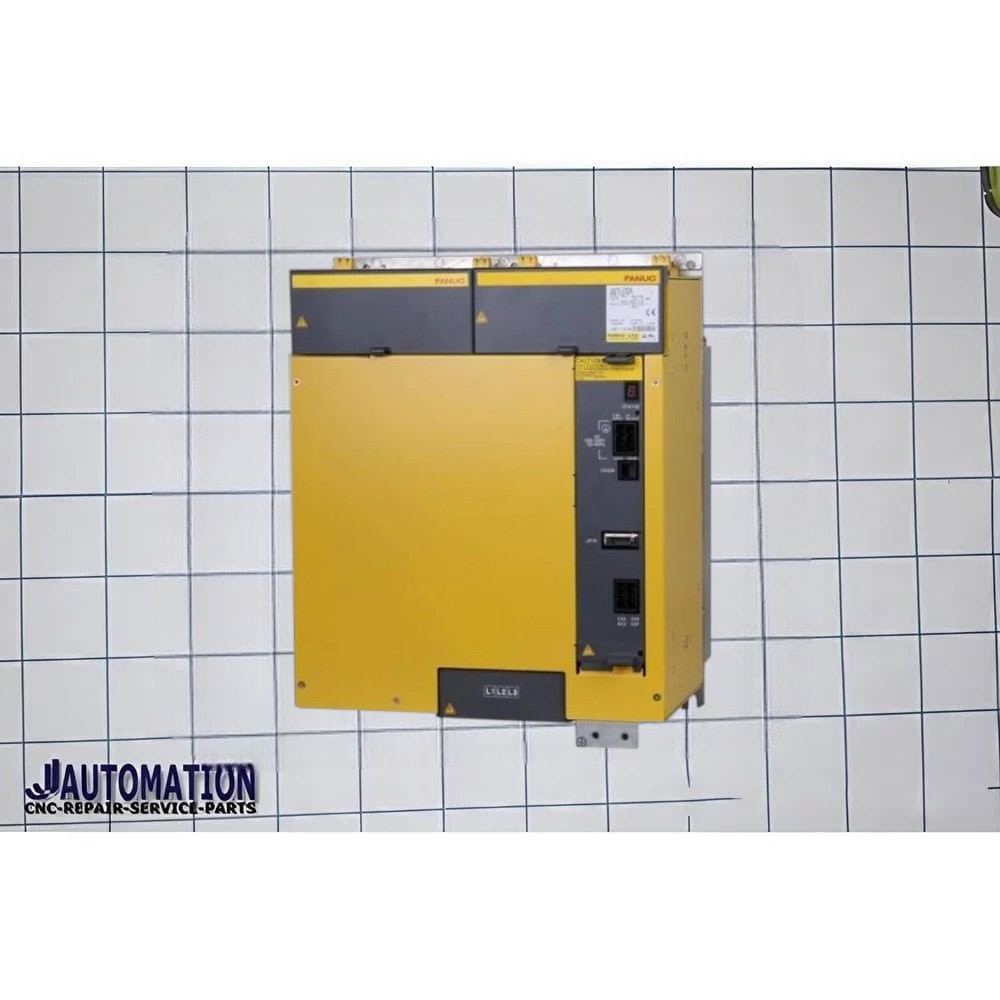

Fanuc ai Power Supply 200VAC-input A06B-6150-H100

A06B-6150-H100 – Description

A06B-6150-H100 is a FANUC Alpha i series power supply module, specifically:

ALPHA i Power Supply Module (AiPS-100HV)

---

🔧 What it is

It is a high-capacity power supply module (PSM) used in FANUC CNC systems.
Its role is to:

• Convert 3-phase AC input → high-voltage DC output
• Supply power to:
  • Servo amplifiers (axis drives)
  • Spindle amplifiers

---

⚙️ Key Function

• Acts as the main DC bus power source for the CNC drive system
• Provides stable, regulated power for high-performance machining
• Designed for heavy-duty industrial applications
• Supports multiple servo and spindle modules simultaneously

---

📊 Technical Specifications (Typical)

• Model: AiPS-100HV
• Input: 400–480V AC, 3-phase
• Output: 565–679V DC
• Current: ~206 A
• Power rating: ~110 kW
• Frequency: 50/60 Hz

---

🏭 Applications

• CNC machining centers
• CNC lathes
• Robotics & automation systems
• High-power multi-axis machines

---

🧠 Simple Explanation

👉 A06B-6150-H100 = Main power supply (bigger capacity version)
👉 It feeds high-voltage DC power to all drives in the machine

---

🔄 Difference vs H075 (important)

• H100 → Higher capacity (~110 kW)
• H075 → Lower capacity (~75–82 kW)

👉 So H100 is used in larger / more powerful machines
