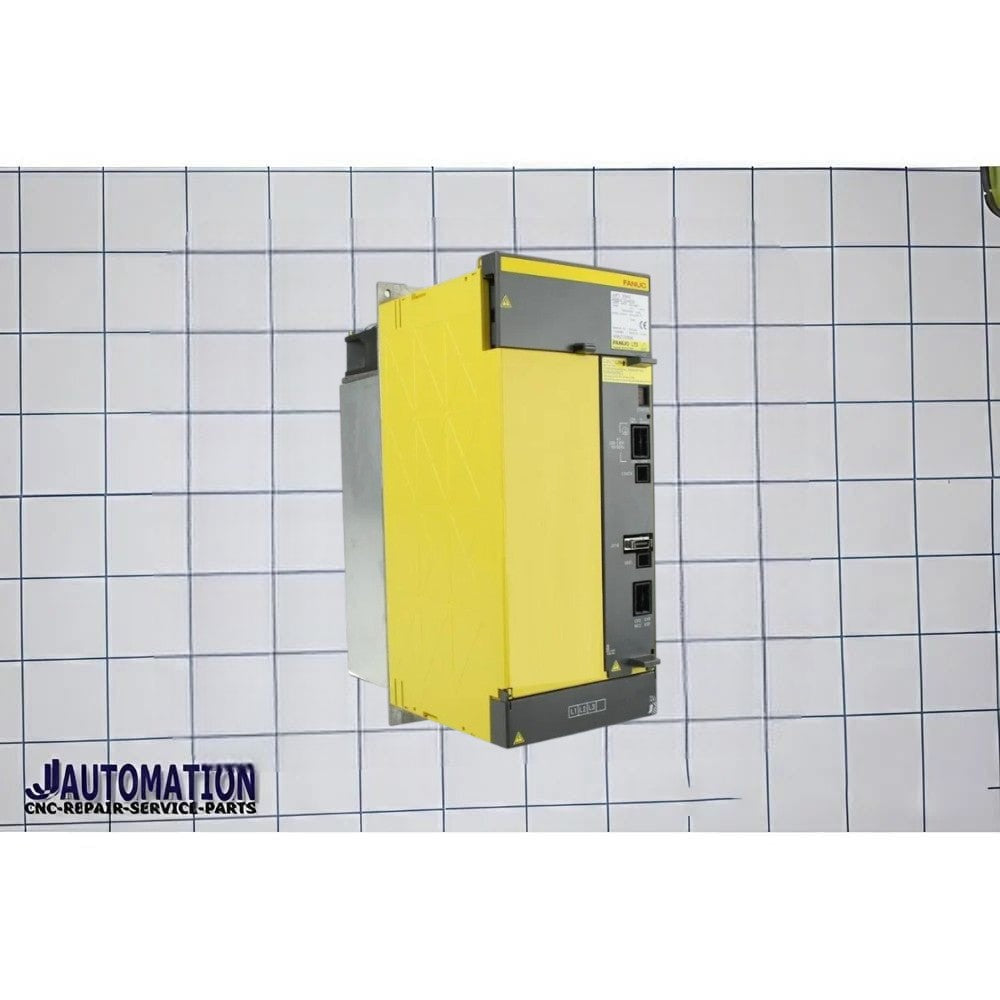

Fanuc ai Power Supply 400VAC-input A06B-6150-C060

A06B-6150-C060 is a higher-capacity module in the FANUC Alpha i 6150 series, and it functions as a power supply module (PSM) for CNC drive systems.

---

🔧 Description (A06B-6150-C060)

Manufacturer: FANUC
Type: Alpha i Power Supply Module (PSM)
Equivalent Model: AiPS-60HV (≈60 kW class)

👉 Simple meaning:
It is a high-power DC supply unit that feeds servo and spindle amplifiers in CNC machines.

---

⚙️ Function

• Converts 3-phase AC (400–480V) into high-voltage DC
• Provides a common DC bus for:
  • Servo amplifiers (axis drives)
  • Spindle amplifiers
• Handles regenerative energy during braking

---

⚡ Typical Technical Characteristics

(based on equivalent H060 model)

• Input: 400–480V AC, 3-phase
• Output: ~565–679V DC
• Power rating: ~60–66 kW
• Designed for medium to large CNC machines

---

🧩 System Role

In a FANUC CNC system:

• A06B-6150-C060 (this unit) → supplies power
• Servo amplifier modules → control axes
• Spindle amplifier → drives spindle

👉 It acts as the central energy source for the entire drive system.

---

📌 About “C060”

• “C060” indicates a 60 kW class configuration/version
• Functionally equivalent to H060 (AiPS-60HV)
• Differences are typically:
  • Hardware revision
  • Firmware / regional variation

---

🔍 Position in 6150 series

• C018 → ~18 kW
• C030 → ~30 kW
• C045 → ~45 kW
• C060 → ~60 kW (this one)

---

✔️ Simple explanation

👉 A06B-6150-C060 is a ~60 kW FANUC CNC power supply module that provides DC power to servo and spindle drives in medium-to-large machines.
