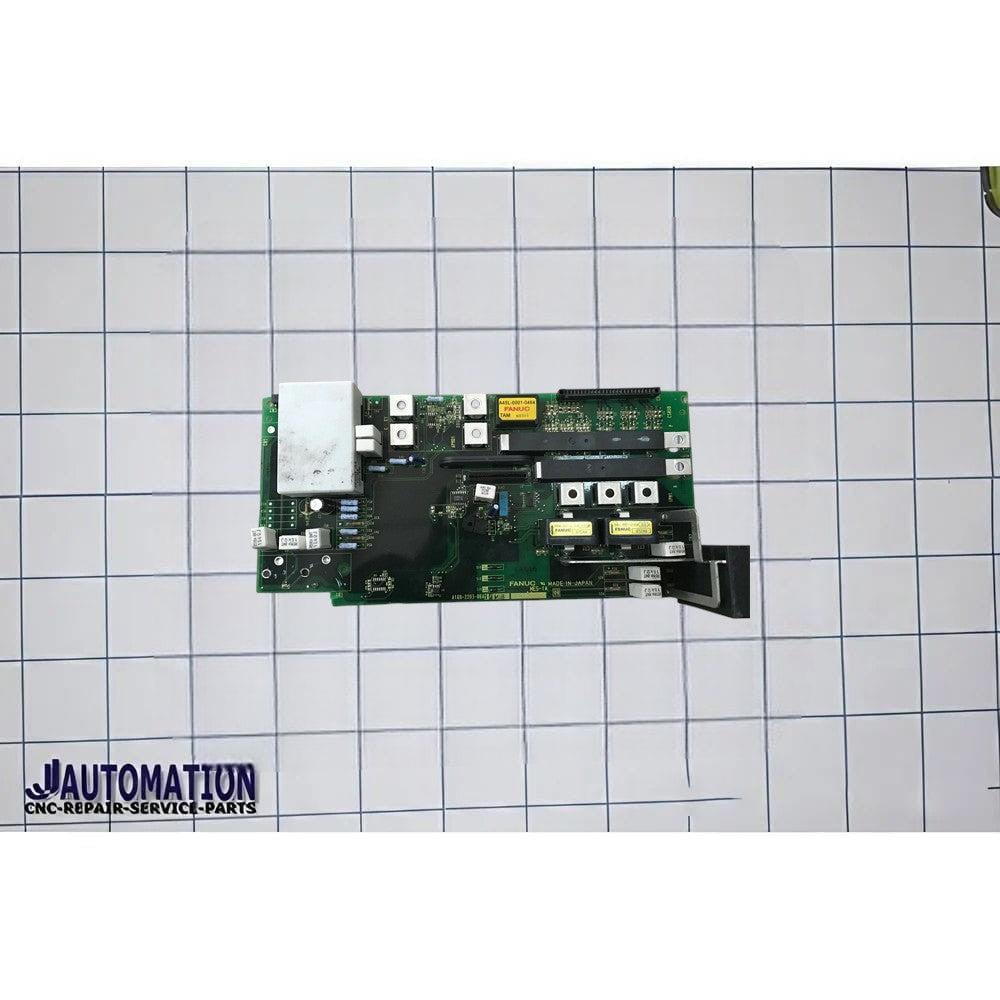

FANUC A16B-2203-0641 PCB / Power Supply Circuit Board (αi Series)
The A16B-2203-0641 from FANUC is an internal power supply PCB (printed circuit board) used in FANUC αi series CNC drive systems. It functions as a main circuit/power distribution board inside power supply modules rather than a standalone unit.
Detailed Product Description
The FANUC A16B-2203-0641 is a power supply PCB designed to manage internal electrical distribution and signal routing within FANUC αi power supply modules. It plays a critical role in ensuring stable power flow between key components such as rectifiers, capacitors, and servo drive interfaces.
This board is typically installed inside power supply modules (PSM / AiPS units) and is responsible for maintaining reliable DC power delivery to connected servo and spindle amplifiers. It supports overall system stability, helping CNC machines achieve consistent performance and precision.
Due to its internal function, this PCB is commonly replaced during repair or refurbishment of the full power module, rather than being used independently.
Key Features & Functions
Power Supply PCB (Main Circuit Board)
Handles internal power distribution and electrical connections within CNC drive modules.
Used in FANUC αi Power Modules
Designed for integration inside αi series power supply systems for CNC machines.
Supports Stable DC Power Flow
Ensures proper voltage regulation and energy transfer to servo and spindle amplifiers.
Industrial-Grade Reliability
Built for continuous-duty operation in harsh manufacturing environments.
Critical for System Operation
Failure of this PCB can impact the entire power module and machine functionality.
Technical Overview (General)
- Model: A16B-2203-0641
- Type: Power Supply PCB / Circuit Board
- Series: FANUC A16B-2203 PCB Series
- Function: Internal power distribution and control signal routing
- Application: Installed inside FANUC αi power supply modules
- Configuration: Non-standalone internal component
Applications
- FANUC αi power supply modules (PSM / AiPS)
- CNC machining centers
- Industrial automation systems
- Servo and spindle drive systems
- Repair and refurbishment of FANUC drive units
Important Notes
- This board is typically not used as a standalone product and is installed within complete modules.
- Often available through repair, exchange, or refurbished parts channels rather than new retail units.
- Variants like A16B-2203-0641-10B may exist depending on system configuration.
