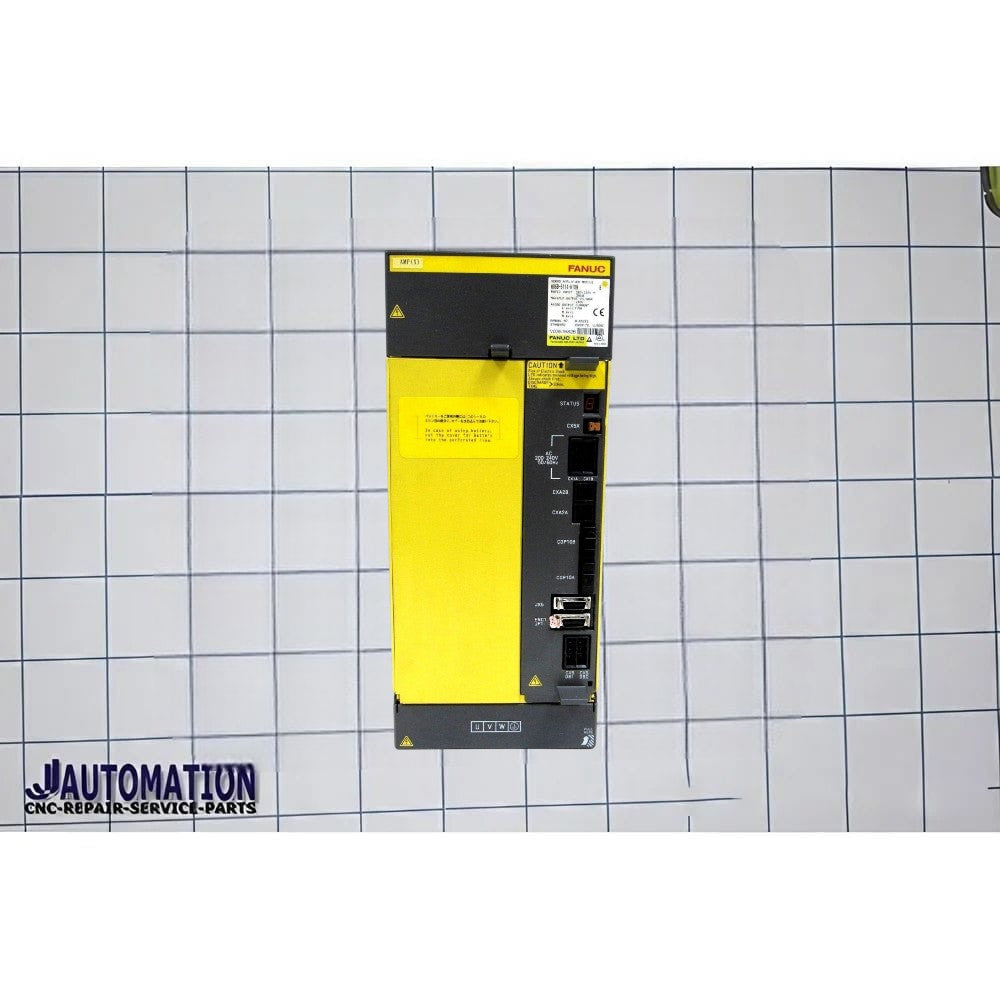

A06B-6114-C109 is a servo amplifier module used in CNC machines manufactured by FANUC.
📌 Basic Information
-
Part Number: A06B-6114-C109
-
Type: Servo Amplifier Module
-
Series: FANUC αi (Alpha-i) Servo Amplifier Series
-
Model: SVM1-360i
-
Category: Axis Drive Unit
⚙️ Main Function
The A06B-6114-C109 servo amplifier is designed to drive and control CNC servo motors that move the machine axes.
Main functions include:
-
Converting CNC controller commands into power for servo motors
-
Controlling axis position, speed, and torque
-
Processing encoder feedback signals
-
Communicating with the CNC system through FSSB (Fiber Serial Servo Bus)
🔧 Key Characteristics
-
Part of the FANUC αi servo amplifier family
-
Designed for high-power servo motor control
-
Installed in the servo drive section of the CNC electrical cabinet
-
Compatible with FANUC αi series servo motors
🧩 Typical Applications
Used in machines such as:
-
CNC machining centers
-
CNC turning centers
-
Heavy-duty machining equipment
-
Industrial automation machines requiring high-power axis control
✅ Simple explanation:
A06B-6114-C109 = FANUC Alpha-i servo amplifier (SVM1-360i) used to power and control high-power CNC machine axis motors. 🔧
