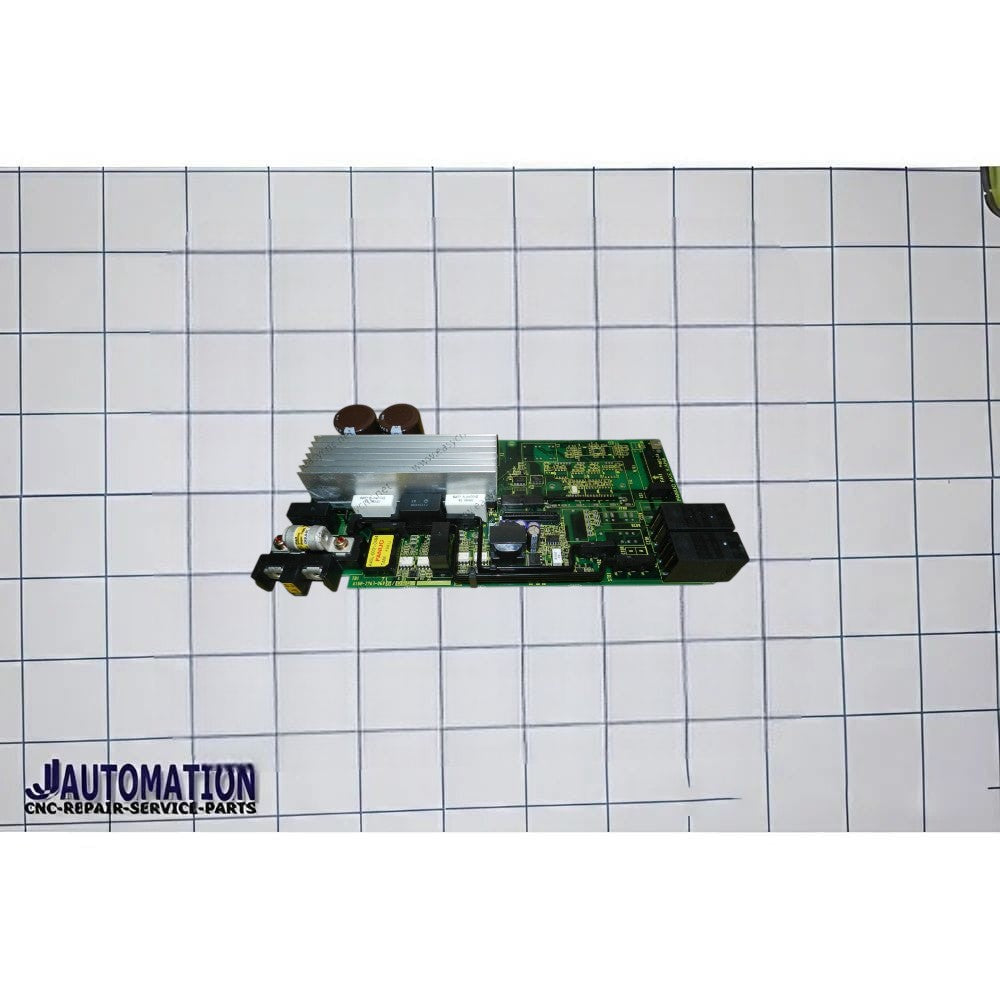

🛠️ FANUC A16B‑2203‑0695 – Internal CNC Drive/Servo PCB
A16B‑2203‑0695 is a printed circuit board (PCB) module used inside FANUC CNC drive systems — specifically within the Series 16 intelligent servo/amplifier framework. This board is part of FANUC’s internal electronics that support servo control functions in controller and drive assemblies rather than being a standalone motor drive unit.
đź“Ś Technical Role & Function
👉 A16B‑2203‑0695 works as a servo control/logic board inside a dual‑axis drive module.
- It typically interfaces with dual‑axis amplifier modules (e.g., 20/20 class) in the FANUC drive cabinet.
- Handles signal and control logic between the CNC controller and the actual power stage of the servo drive.
- It contributes to coordination of two servo axes when integrated into the system.
- Communicates via FANUC’s proprietary FSSB fiber‑optic link within the drive/control system.
This board isn’t a complete amplifier by itself — it’s a PCB component inside a larger electronic assembly that enables servo control processing and interconnect.
⚙️ Typical Specs & Context
- Product Type: Dual‑axis servo PCB / drive board
- Voltage Class: 200 – 230 VAC operation range (matching 20/20 dual‑axis amplifiers)
- Axes Supported: Up to 2 servo axes
- Host Compatibility: Works with older 6114 and 6117 generation drives in Series 16 systems
- Mounting Style: Internal board‑to‑board connections with multi‑pin industrial connectors
- Cooling: Forced‑air shared cooling path inside the drive assembly
- Use Case: Precision motion control (servo feedback + drive logic) in CNC machines.
🏠Applications
- Used in FANUC CNC controllers and servo drive units for machining centers, milling machines, CNC lathes, and other automated motion systems.
- Often stocked as a replacement board for maintenance or repair of FANUC Series 16 servo amplifier units.
đź“Ś Simple Explanation
👉 A16B‑2203‑0695 is an internal control/servo logic PCB used inside FANUC drive electronics.
It provides signal processing and interconnect for a dual‑axis servo module, enabling the CNC to control two axes of motion in machinery. It is not a standalone servo drive, but a key internal board in FANUC’s intelligent amplifier systems.
🛠️ Usage & Maintenance Notes
- This board is usually replaced as part of a larger drive module replacement, not as a separate end‑user component.
- Often available as new, refurbished, or repaired units in aftermarket supply channels.
