Description

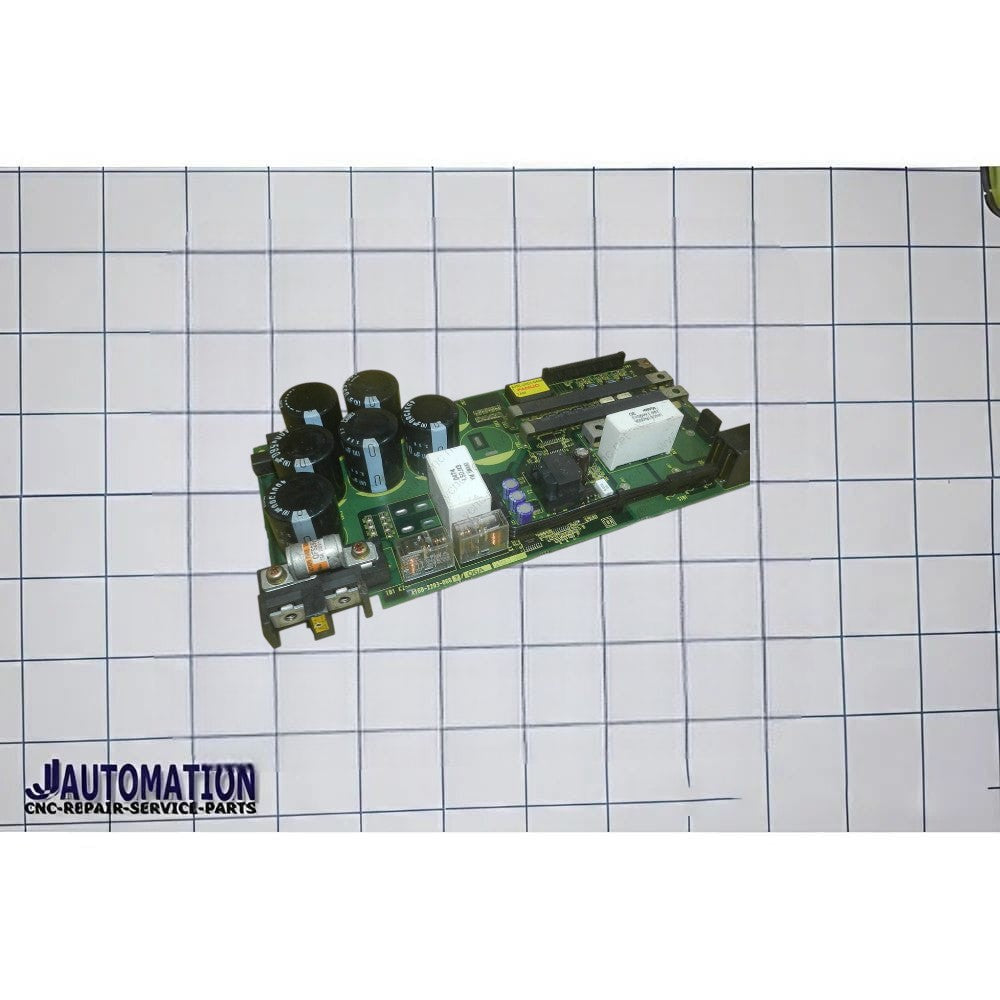

The A16B-2203-0667 is a FANUC control PCB (Printed Circuit Board), part of the A16B series of CNC interface boards. It serves as a servo amplifier/spindle interface board, handling control and feedback signals in FANUC CNC systems.
🔹 Identification
-
Manufacturer: FANUC
-
Series: A16B Control Boards
-
Type: PCB / Interface Board
-
Function: Processes signals between the CNC CPU and servo/spindle drives
-
Revision: Successor or variant of A16B-2203-0666
🔹 Function
The board typically:
-
Transfers commands from the CNC CPU to servo amplifiers or spindle drives
-
Processes feedback from motors and encoders
-
Performs signal conditioning for accurate motion control
-
Acts as a communication bridge in CNC control cabinets
🔹 Technical Overview
-
Integration: Mounted inside CNC cabinet, connected via backplane/ribbon connectors
-
Role: Servo/spindle interface
-
Compatibility: Works with FANUC 0i, 16i, 18i, 21i, and Ai/αi series servo amplifiers
-
Design: Industrial-grade PCB capable of continuous high-speed operation
🔹 Key Features
-
High reliability in industrial CNC environments
-
Precise servo and spindle motion control
-
Modular design for easy replacement
-
Handles high-speed signal processing and motor feedback
🔹 Applications
-
FANUC CNC systems: milling, turning, and machining centers
-
Automation systems requiring accurate axis control
-
Servo amplifier and spindle control modules
🔹 Simple Explanation
-
0667 = control/interface board
-
It’s the “translator” between the CNC brain and the motors, ensuring precise machine motion.
-
Typically an updated revision of 0666 with improved compatibility or reliability.
