Description
🔧 Model Overview

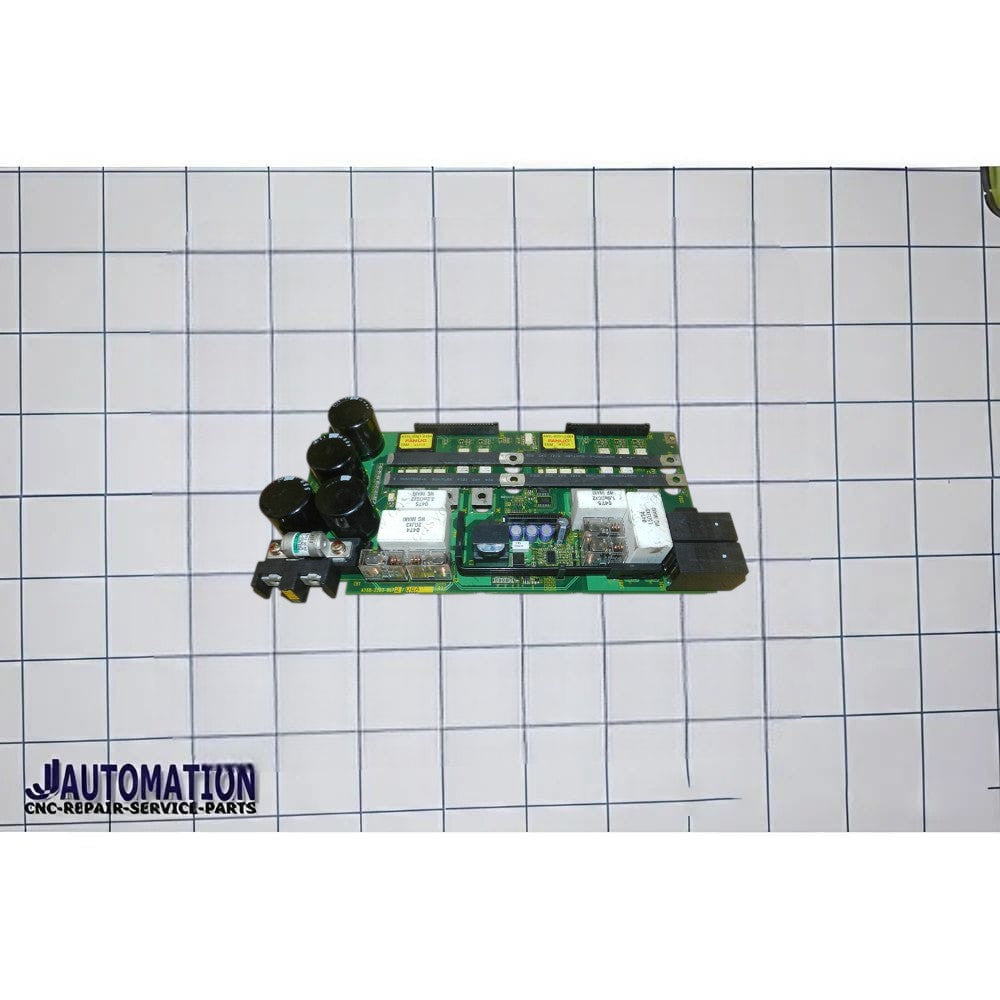

A16B‑2203‑0672 is an internal FANUC printed circuit board (PCB) used in CNC drive and controller systems — specifically as part of the A16B‑2203 electronics family. It’s not a standalone motor drive or power amplifier, but a crucial electronic board within larger FANUC assemblies.
🧠 What It Is
👉 A16B‑2203‑0672 is a FANUC PCB (printed circuit board) that typically functions as a power supply / control board within FANUC servo amplifier modules or CNC electronics. It is used inside internal drive/controller modules (for example in units like the A06B‑6114‑H208 drive).
- It is part of the A16B‑2203 circuit board series — a group of internal logic and power boards in FANUC systems.
- Boards like this are often installed on the internal backplane or inside the chassis of a CNC controller or servo drive assembly.
- They provide power regulation and logic interfacing between the controller’s electronics and other sub‑modules.
⚙️ What It Does
This board is generally responsible for:
✔ Power distribution and regulation within a FANUC servo or drive unit
✔ Supporting internal logic and communication between the CNC controller and power/servo stages
✔ Ensuring stable internal voltages for other PCB components
✔ Helping coordinate signals for motion control and feedback processing
Because it’s an internal board, it is difficult to define a single “output” — its function depends on the electronic assembly it’s part of rather than acting as a discrete module.
🧩 Typical Uses & Context
- Found inside FANUC drive cards or servo amplifier units (e.g., used with modules like A06B‑6114‑H208).
- Employed in industrial CNC machining centers, lathes, and milling machines where FANUC controls are used.
- Often stocked as a replacement part for internal PCBs when repairing or refurbishing drive assemblies.
🔍 Key Features
- FANUC OEM PCB — original board used by FANUC in controller/drive units.
- Power supply / internal logic board — supports essential electrical infrastructure in the module.
- Typically used with Series 16 servo drives or similar FANUC systems.
