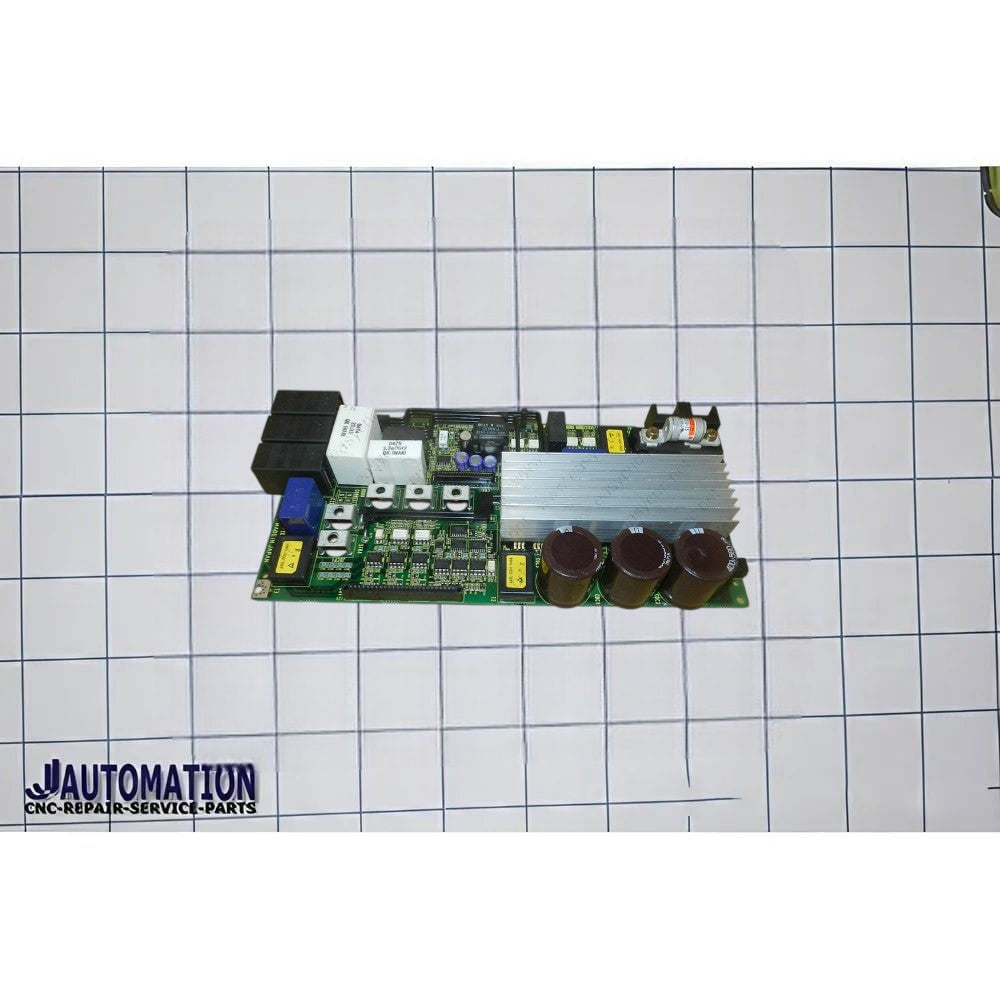

Fanuc ai Servo Amplifier Power PCB 200VAC-input A16B-2203-0680

🔧 FANUC A16B-2203-0680 – Wiring / Drive PCB (3-Axis, Mixed Power)

A16B-2203-0680 is a FANUC internal printed circuit board (PCB) used inside Alpha i (αi) 3-axis servo amplifier modules, specifically for mixed-power configurations.

---

🧠 What It Is

👉 A16B-2203-0680 = Wiring / Interconnection + Drive Interface PCB

• Type: Internal PCB (wiring + interface board)
• Series: A16B-2203
• Used In: 3-axis servo amplifiers (SVM3 type)
• Typical Match:
  • A06B-6114-H304 / C304
  • A06B-6117-H304 / C304
    (20/20/40 configuration)

---

⚙️ What It Does

This board acts as a hybrid internal board combining wiring and interface functions:

🔌 Main roles:

• Distributes power and signals between internal sections
• Connects:
  • Control PCB (A20B-2100 / A20B-2101 series)
  • Power stage (IGBT inverter section)
  • Feedback circuits (encoder signals)
• Supports mixed-axis coordination (different power levels per axis)

👉 Compared to simpler wiring boards, this one handles more complex routing due to uneven axis loads.

---

🏭 Where It Is Used

Installed inside 3-axis mixed-power servo amplifiers:

• SVM3-20/20/40i modules
• Common in:
  • CNC machining centers
  • Vertical machining centers (heavy Z-axis load)
  • Industrial automation systems

👉 Especially where:

• X, Y axes → medium load
• Z axis → higher load

---

🔍 Key Characteristics

• ✔ Designed for 3-axis (SVM3) systems
• ✔ Supports mixed current ratings (20/20/40)
• ✔ Internal PCB (not standalone)
• ✔ Combines:
  • Wiring (signal distribution)
  • Interface (communication routing)
• ✔ Works with αi servo amplifier architecture

---

🔗 Quick Mapping (Very Useful)

👉 This gives you a direct link between amplifier type ↔ internal PCB.

---

🧠 Simple Explanation

👉 A16B-2203-0680 is an internal FANUC PCB used inside 3-axis servo amplifiers with mixed power ratings, handling signal routing and coordination between control and power sections.
