Description

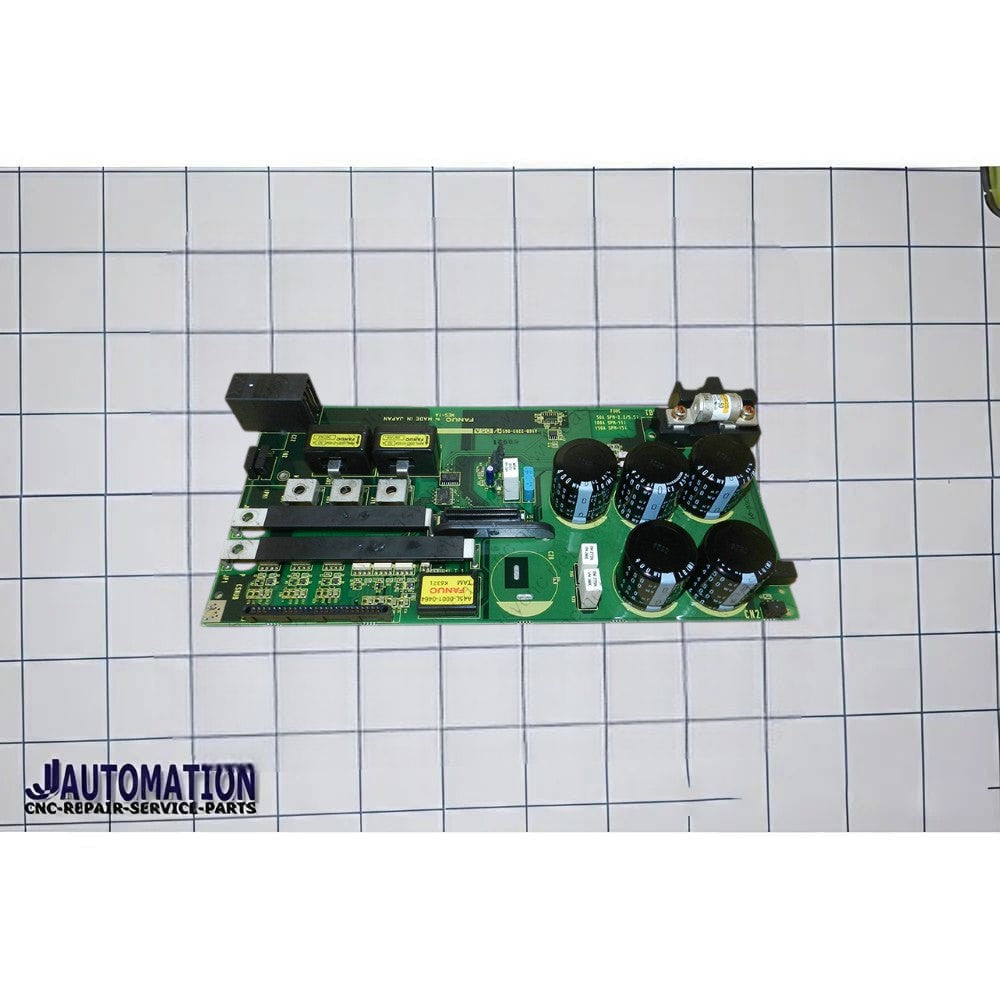

The FANUC A16B‑2203‑0805 is a printed circuit board (PCB) used inside industrial automation equipment, specifically within FANUC servo amplifier electronics. This particular board is identified as a power PCB associated with an Alpha i servo amplifier module — the type of module that drives a servo motor in CNC machines and automated systems.
- Series: A16B‑2203 — FANUC internal control and power PCB family
- Primary Role: Power PCB for Alpha i servo amplifier — manages and stabilizes electrical power and related functions within the servo drive unit.
- Where It Fits: Mounted inside the servo amplifier assembly (not the main CNC controller logic cabinet).
🧠 Typical Function
- Provides power circuitry for the servo amplifier, supporting the main drive electronics.
- Works with control and logic boards inside the amplifier to ensure stable current and voltage distribution.
- Essential for correct and reliable operation of the servo drive, especially in high‑demand axis control tasks.
Unlike simple logic PCBs, this power PCB handles heavier electrical loads and is part of the amplifier’s internal power processing rather than low‑level communication or CPU tasks.
🛠️ Usage Notes
- Typically found inside a FANUC Alpha i servo amplifier module, which in turn is a key part of CNC motion control systems.
- Often replaced or repaired when the servo amplifier exhibits power faults or instability.
- OEM, refurbished, and repaired versions are available from industrial automation parts suppliers.
🧩 Summary
👉 FANUC A16B‑2203‑0805 is a power PCB for an Alpha i servo amplifier — not a standalone control board — and is used inside the servo drive electronics of FANUC automated CNC or motion systems.
