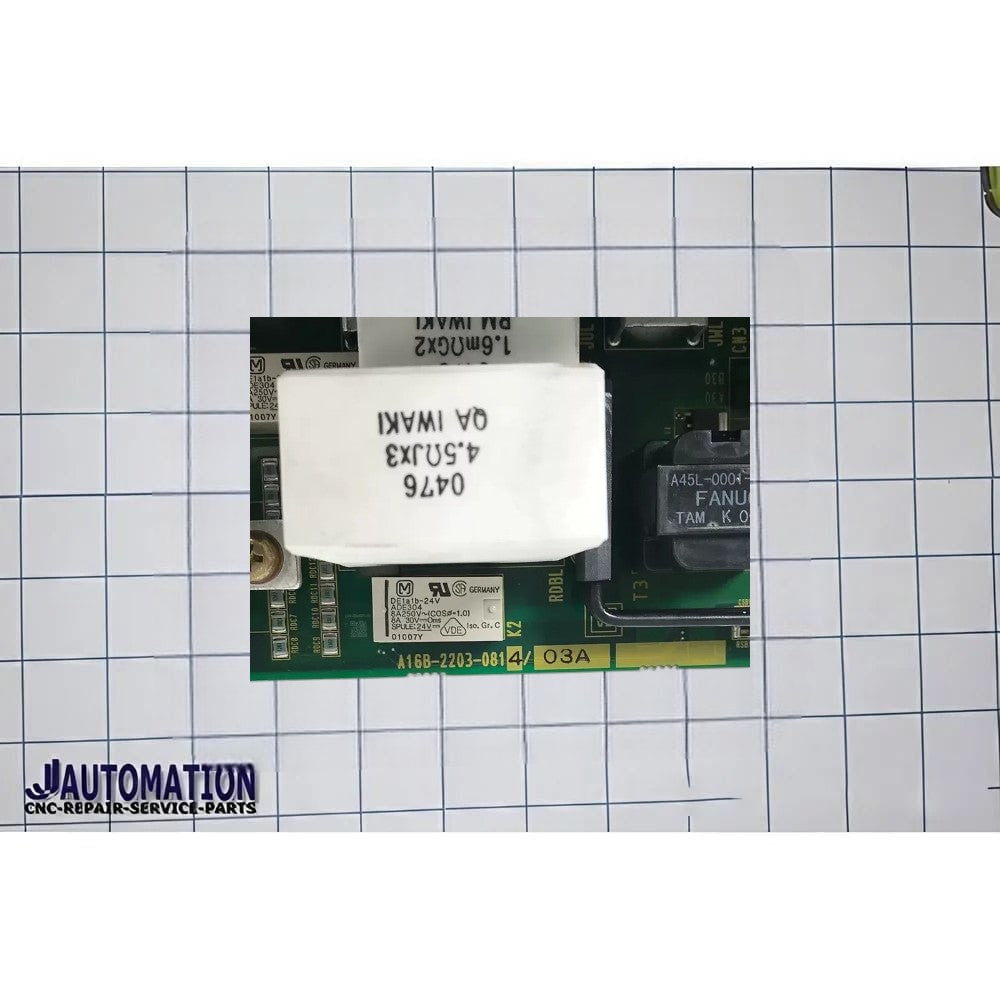

Fanuc ai Servo Amplifier Power PCB 400VAC-input A16B-2203-0814

🔧 A16B-2203-0814 – Description

The part A16B-2203-0814 is a PCB (Printed Circuit Board) used in FANUC servo amplifier systems, manufactured by FANUC.

---

📌 Official / Practical Description:

• Type: PC Board / Servo Amplifier Board
• Series: A16B-2203
• Category: Internal servo amplifier PCB
• Variants: Same family as 0810, 0811, 0812, 0813, 0815

👉 It is commonly identified as a servo amplifier board (servo amp PCB) used in CNC drive systems.

---

⚙️ Main Function:

This board performs critical functions inside the servo amplifier:

• ⚡ Power distribution within the drive
• 🔄 Supports servo motor drive circuits
• 🔌 Handles internal electrical connections and signal routing
• 🔗 Interfaces between CNC controller and servo amplifier

👉 Simple explanation:

It is a power + control board that enables the servo amplifier to run CNC machine axes properly.

---

🧩 Where It Is Used:

• Installed inside FANUC α / αi servo amplifiers
• Used in:
  • CNC machining centers
  • CNC lathes
  • Industrial automation / robotic systems

---

🔍 Technical Notes:

• Classified as a PCB module in FANUC systems
• Some versions (e.g., /03A) are revision updates with minor circuit changes
• Same base board family as:
  • 0810
  • 0811
  • 0812
  • 0813
  • 0815

👉 Difference between these numbers = revision / compatibility version, not major function change.

---

🛠️ Common Failure Symptoms:

If this board is faulty, you may notice:

• Servo amplifier alarms (SV alarms)
• Axis not moving or unstable
• Drive not powering ON properly
• Intermittent CNC stoppage

---

✅ Simple Summary:

A16B-2203-0814 = FANUC servo amplifier PCB (power + drive board) used internally to control and supply power for servo motor operation.
