Description

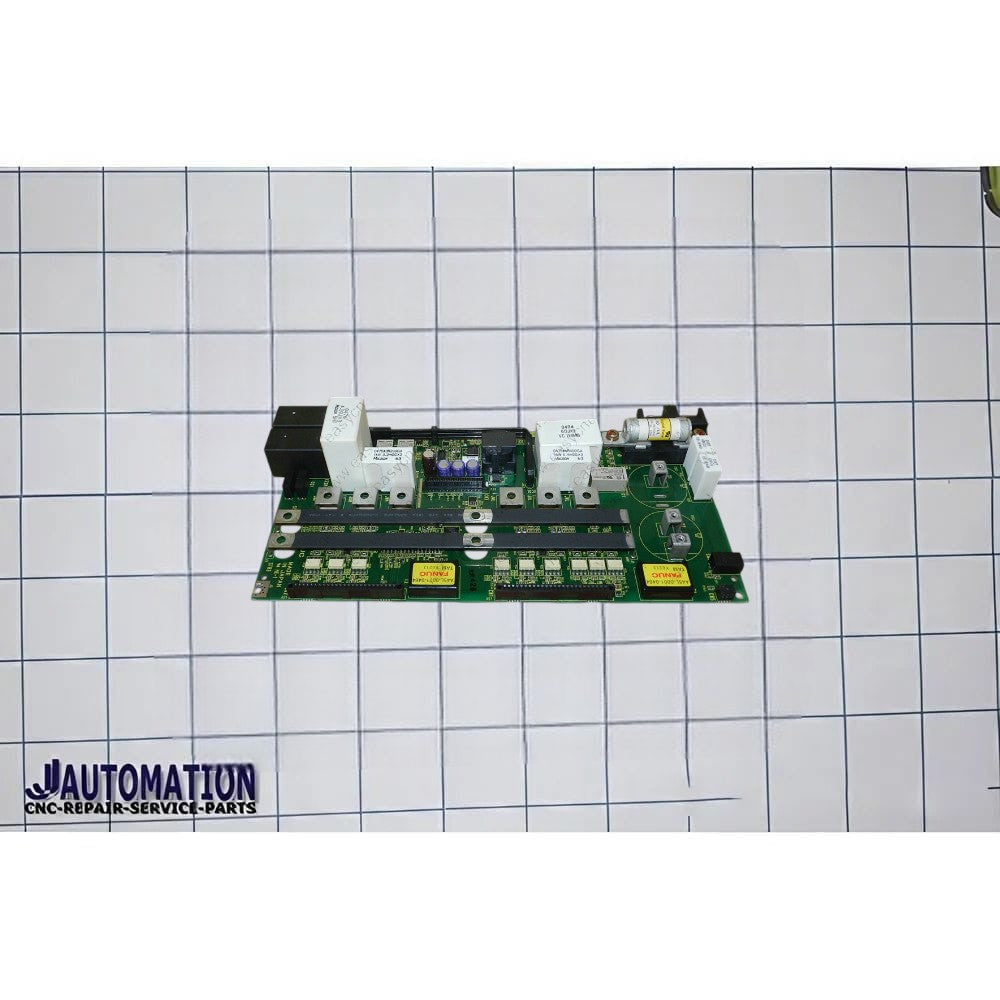

xA16B‑2203‑0817 is a printed circuit board (PCB) used inside FANUC servo amplifier / drive modules and other CNC power electronics as part of the A16B‑2203 series of internal boards. It functions primarily as a power distribution and amplifier support board within a larger module.
📌 What A16B‑2203‑0817 Is
- Type: Internal Power PCB
- Series: A16B‑2203 (FANUC internal board family)
- Application: Installed inside FANUC servo drives or CNC control units to support the unit’s power circuitry.
- Function: Helps manage and route electrical power within the drive to ensure stable operation and correct power delivery to the motor/drive electronics.
👉 In simple terms:
It’s an internal power board that helps a FANUC servo amplifier/distribution module operate reliably.
🧩 Where It Fits
The A16B‑2203 family contains many different PCBs with varied roles, including:
- Power boards
- Control boards
- I/O and signal interface boards (other parts like A16B‑2203‑0020, A16B‑2203‑0431, etc.)
A16B‑2203‑0817 is specifically a power PCB, similar to other variants like 0810–0816, which are tied to specific FANUC servo amplifier configurations.
According to FANUC amplifier manuals, for some servo modules the internal printed circuit board specification lists 0817 alongside particular amplifier models. For example,
- AiSV 20/20HVL (A06B‑6127‑H255) uses the A16B‑2203‑0817 internal board.
⚙️ Typical Use Cases
This board is typically found inside:
- FANUC αiSV series servo amplifiers
- CNC machine drive cabinets
- Motion control systems that need precise power distribution for servo axes
It is not a self‑contained module — it must be mounted inside a larger drive unit.
🚩 When It Fails
If this board develops faults, common symptoms in the machine could include:
- Servo amplifier faults or alarms
- Axis not driving correctly
- Power instability or loss of drive power
- Machine stops due to internal drive errors
Diagnosing faults usually requires checking the amplifier LEDs/alarms and possibly replacing or repairing the PCB.
🛠️ Repair & Availability
- Many service providers offer repair and overhaul services for this board, often including functional testing and reuse of original components where possible.
- Boards are available as new, refurbished, or repaired units through industrial parts suppliers.
✅ Simple Summary
A16B‑2203‑0817 is a FANUC internal power PCB used inside servo amplifiers or drive modules to manage and distribute power within the unit. It’s part of the larger A16B‑2203 board family that FANUC uses for power and control electronics in CNC systems.
