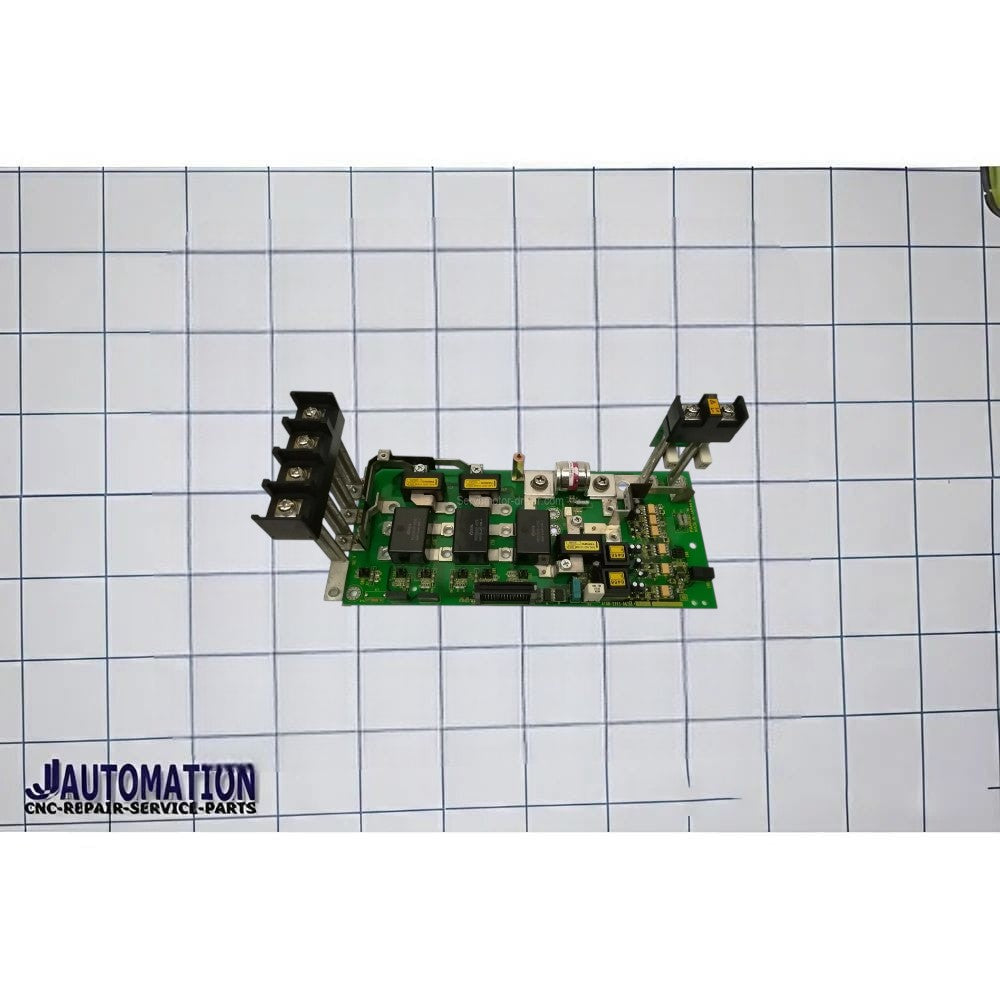

🔧 A16B-2203-0621 — Description
A16B-2203-0621 is a FANUC printed circuit board (PCB) used in CNC systems, specifically associated with spindle amplifier and control electronics.
📌 Full Technical Description
- Manufacturer: FANUC
- Part Number: A16B-2203-0621
- Type: PCB (Printed Circuit Board)
- Category: Drive / spindle / control board
- Series: A16B-2203
⚙️ Function (What it does)
- Acts as a control / wiring / power interface board
- Handles:
- Signal processing inside CNC system
- Electrical interfacing between control and drive sections
- Internal wiring and power distribution
👉 In simple terms:
It is a core internal board used in spindle/drive systems and CNC controllers.
🔍 Specific Role (More precise)
Depending on installation, this board is described as:
- Control board / interface PCB
- Drive / DC servo / spindle PCB
- Wiring / power PCB for spindle amplifier modules (SPM)
👉 This means:
A16B-2203-0621 is typically a wiring/control PCB used inside FANUC spindle amplifier modules (SPM) or CNC systems.
🏭 Where it is used
- FANUC Alpha i spindle amplifiers (SPM series)
- CNC machines like:
- Lathes
- Machining centers
- Example:
- Used in SPM-26i spindle module configurations
🧩 Key Characteristics
- Internal board (not standalone)
- Works with:
- Spindle drive units
- CNC control systems
- Often part of:
- Power + control PCB assembly
⚠️ Important Notes
- ❗ Must match exact part number and machine configuration
- ❗ Usually replaced via:
- Repair
- Refurbished exchange
- ❗ Not interchangeable freely with other A16B boards
👍 Summary
A16B-2203-0621 = FANUC spindle/drive control & wiring PCB
➡️ Used inside spindle amplifier (SPM) or CNC system
➡️ Handles control signals, wiring, and power interfacing
➡️ Critical internal board (not used independently)
