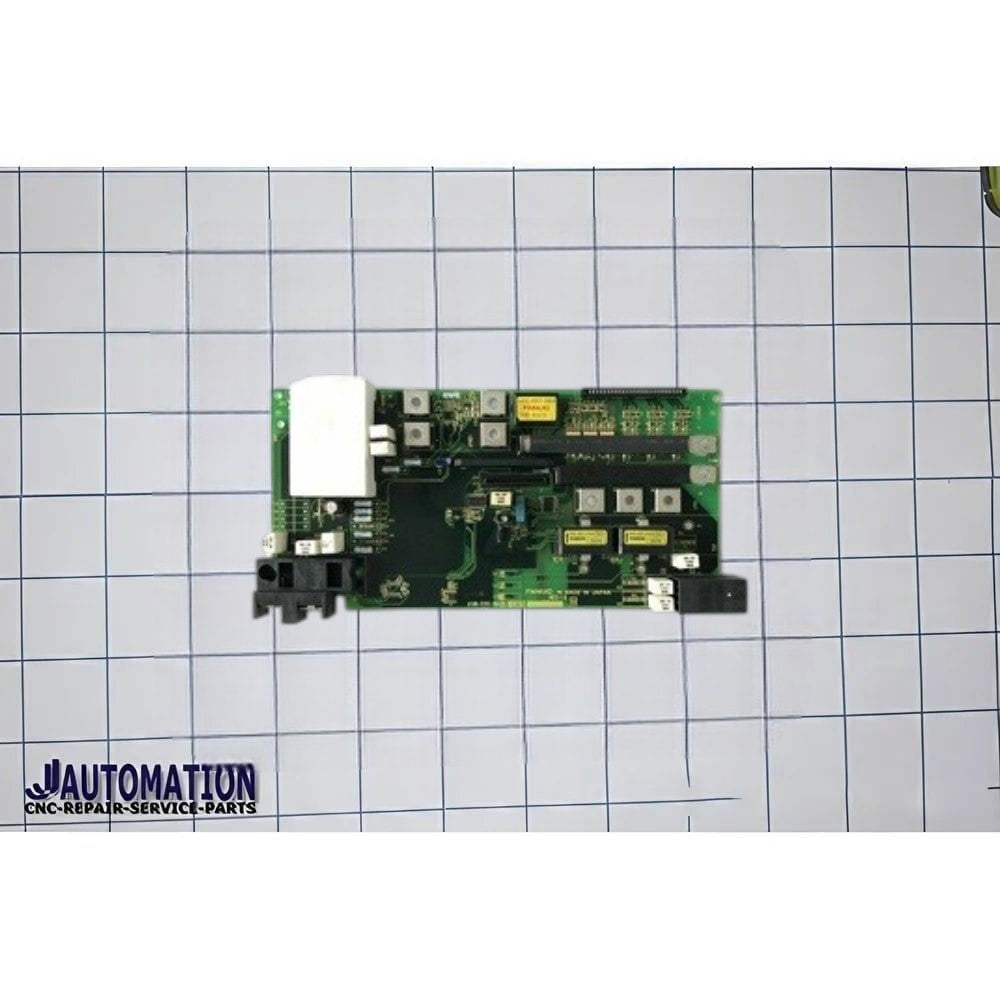

FANUC A16B-2203-0640 PCB / Main Board (αi Series)
The A16B-2203-0640 from FANUC is an internal power wiring PCB / main board used in FANUC αi series CNC drive systems. It is not a standalone module but a critical internal circuit board typically installed inside power supply units.
Detailed Product Description
The FANUC A16B-2203-0640 is a specialized power wiring printed circuit board (PCB) designed for integration within FANUC αi series power supply modules. This board manages internal power distribution, signal routing, and electrical connectivity between major components of the drive system.
It is commonly found in PSMi (Power Supply Module integrated) units, particularly around the 5.5 kW class, where it plays a key role in ensuring stable electrical flow and system reliability.
Due to its role as an internal component, the A16B-2203-0640 is typically supplied as part of a complete module rather than sold separately.
Key Features & Functions
Internal Power Wiring PCB
Acts as the backbone for internal electrical connections within FANUC power supply modules.
Used in αi Power Supply Modules (PSMi Series)
Commonly installed in 5.5 kW class power supply units, supporting stable DC power generation.
Supports Power Distribution & Signal Routing
Ensures proper connection between control boards, power circuits, and drive components.
High Reliability Design
Built with industrial-grade materials for long service life and consistent performance.
Essential for CNC Drive Operation
A failure in this PCB can directly affect the performance of the entire power supply module.
Technical Overview (General)
- Model: A16B-2203-0640
- Type: Power Wiring PCB / Main Board
- Series: FANUC A16B-2203 PCB Series
- Function: Internal power distribution and signal routing
- Application: Installed inside FANUC αi power supply modules (PSMi)
- Typical System Use: CNC drive and servo systems
Applications
- FANUC αi series power supply modules
- CNC machining centers
- Industrial automation systems
- Servo and spindle drive systems
- Maintenance and repair of FANUC drive units
Important Note
- This board is not typically sold separately and is usually replaced along with the complete power supply module.
- Used or refurbished units may be available in the secondary market for repair purposes.
