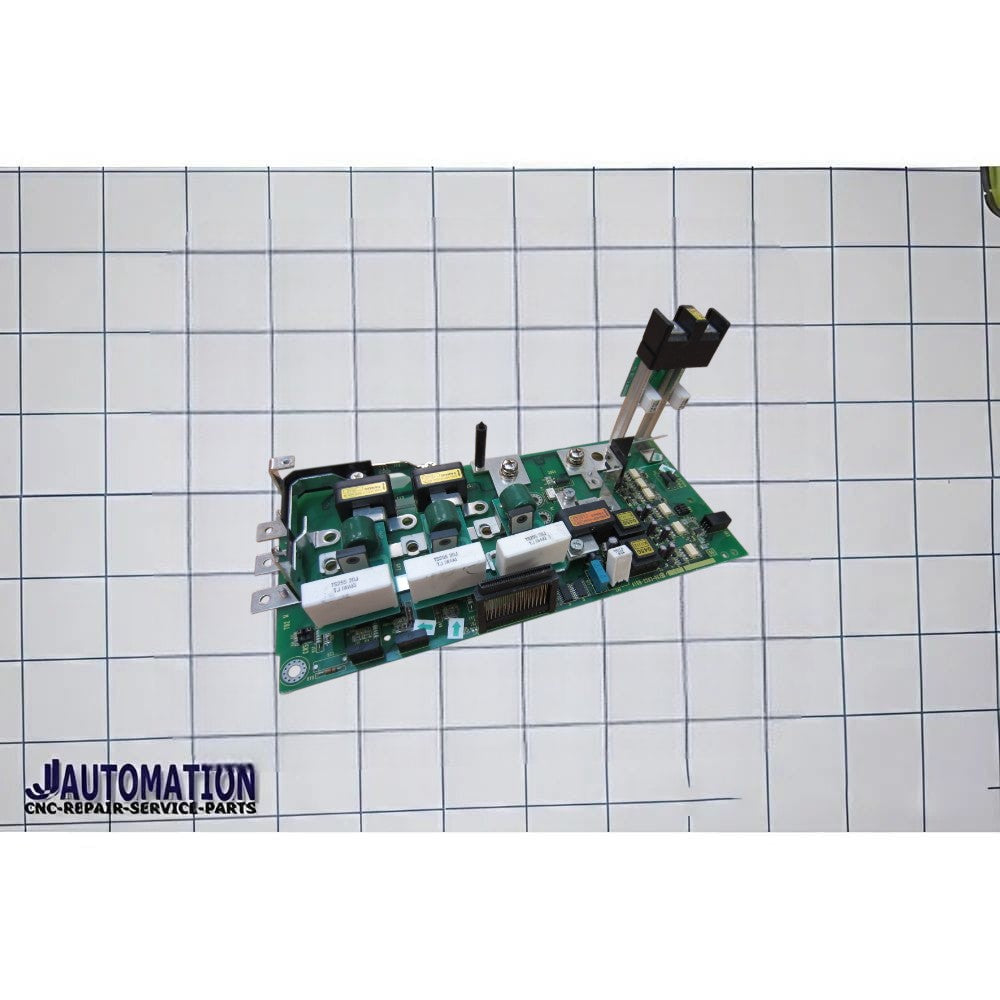

🔧 A16B-2203-0623 — Description
A16B-2203-0623 is a FANUC industrial PCB (printed circuit board) used in CNC drive/control systems, typically inside spindle amplifier or servo/drive modules.
📌 Full Technical Description
- Manufacturer: FANUC
- Part Number: A16B-2203-0623
- Type: Drive / spindle / control PCB
- Series: A16B-2203
- Application: Internal board for CNC amplifier/control units
⚙️ Function (What it does)
- Acts as an internal control and interface board inside FANUC drive systems
- Handles:
- Signal processing between CNC control and drive unit
- Internal power/control routing
- Communication with spindle or servo amplifier sections
👉 In simple terms:
It is a core internal electronics board used to operate CNC spindle/servo drives.
🏭 Where it is used
- Found inside FANUC:
- Spindle amplifier modules (aiSP / SPM types)
- Servo/drive control assemblies
- Used in industrial CNC machines like:
- Machining centers
- CNC lathes
A listing confirms it as a FANUC CNC circuit board used in industrial automation systems and typically supplied tested or refurbished due to its critical role in machine operation .
🧩 Key characteristics
- Not a standalone module
- Installed inside larger amplifier/drive unit
- Must match:
- Exact amplifier model (e.g., A06B-6141 variants)
- Machine configuration
- Often replaced as part of full drive repair/exchange
⚠️ Important notes
- ❗ Usually not field-serviceable at component level
- ❗ Replacement requires exact compatibility match
- ❗ Common failure symptoms:
- Spindle/axis not enabling
- Drive alarms
- Communication faults between CNC and amplifier
👍 Summary
A16B-2203-0623 = FANUC internal spindle/servo drive PCB
➡️ Used inside CNC amplifier systems
➡️ Handles control + signal + power interfacing
➡️ Critical board for spindle/drive operation
