🔧 A16B-2203-0653 — Description

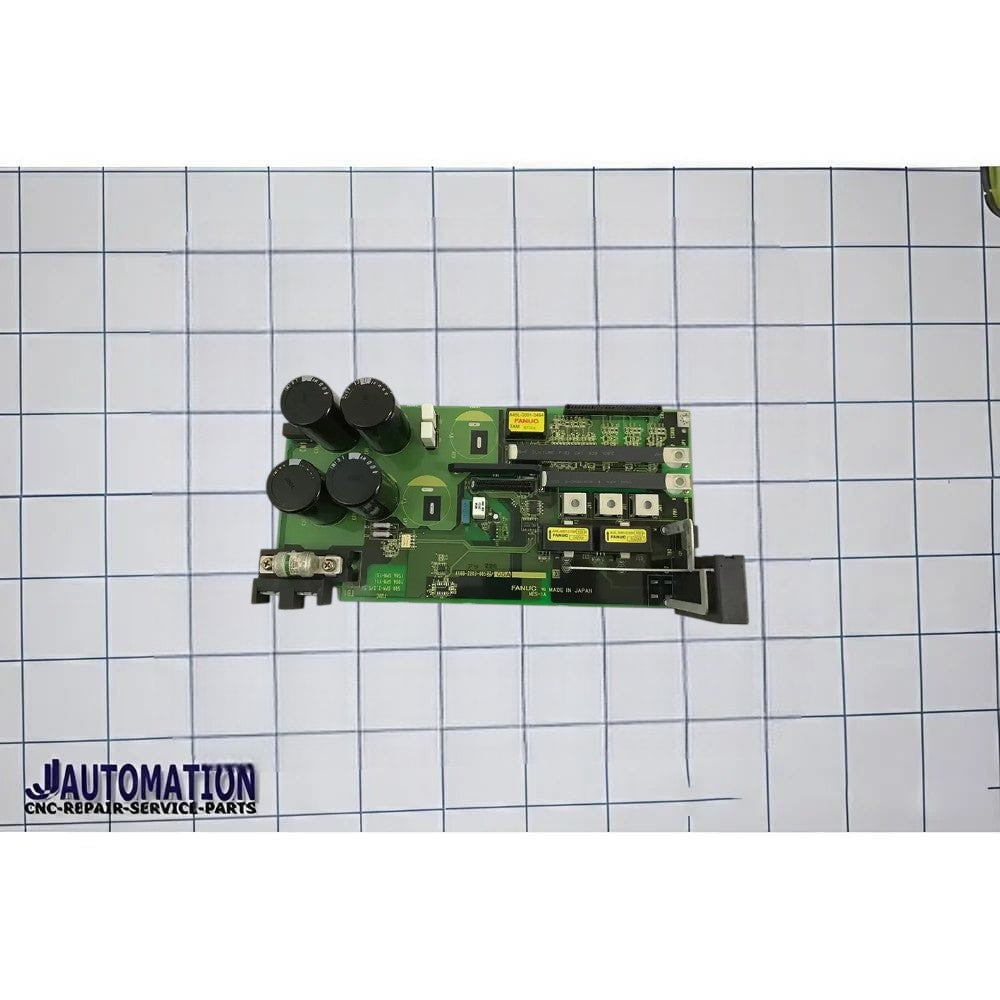

A16B-2203-0653 is a FANUC internal circuit board (PCB) used inside spindle amplifier modules of CNC machines.
📌 Full Technical Description
- Manufacturer: FANUC
- Part Number: A16B-2203-0653
- Type: Internal PCB / wiring & power board
- Series: A16B-2203 (spindle/drive PCB series)
- Application: Installed inside spindle amplifier units (aiSP / SPM modules)
⚙️ Function (What it does)
- Works as an internal electrical interface board inside the spindle amplifier
- Handles:
- Power distribution within the amplifier
- Signal routing between control board and power module
- Internal wiring connections to spindle motor output
👉 In simple terms:
It is a base/internal board of the spindle drive, not used independently.
🔍 Series context (important)
- Part of the same family as:
- A16B-2203-0650
- A16B-2203-0651
- A16B-2203-0652
- A16B-2203-0653
👉 These are variant base/wiring PCBs used in different spindle amplifier configurations
🏭 Where it is used
- Installed in:
- FANUC Alpha i spindle amplifiers (SPM / aiSP series)
- Associated with models like:
- A06B-6111 / A06B-6112 spindle modules (various power ratings)
🧩 Key identification
- Commonly listed simply as:
- “FANUC circuit board” or “spindle PCB”
- Physically a mounted board inside the drive unit, not visible externally unless opened
⚠️ Important notes
- ❗ Not typically replaced alone (usually part of full amplifier repair)
- ❗ Must match:
- Exact spindle amplifier model
- Power rating/version
- ❗ Common failure symptoms:
- Spindle not running
- Drive alarm / power fault
- Burnt PCB or short circuit
👍 Summary
A16B-2203-0653 = FANUC spindle amplifier internal PCB (wiring/power board)
➡️ Used inside Alpha i spindle drive modules
➡️ Handles internal power & signal connections
➡️ Variant of 0650 / 0651 / 0652 boards
