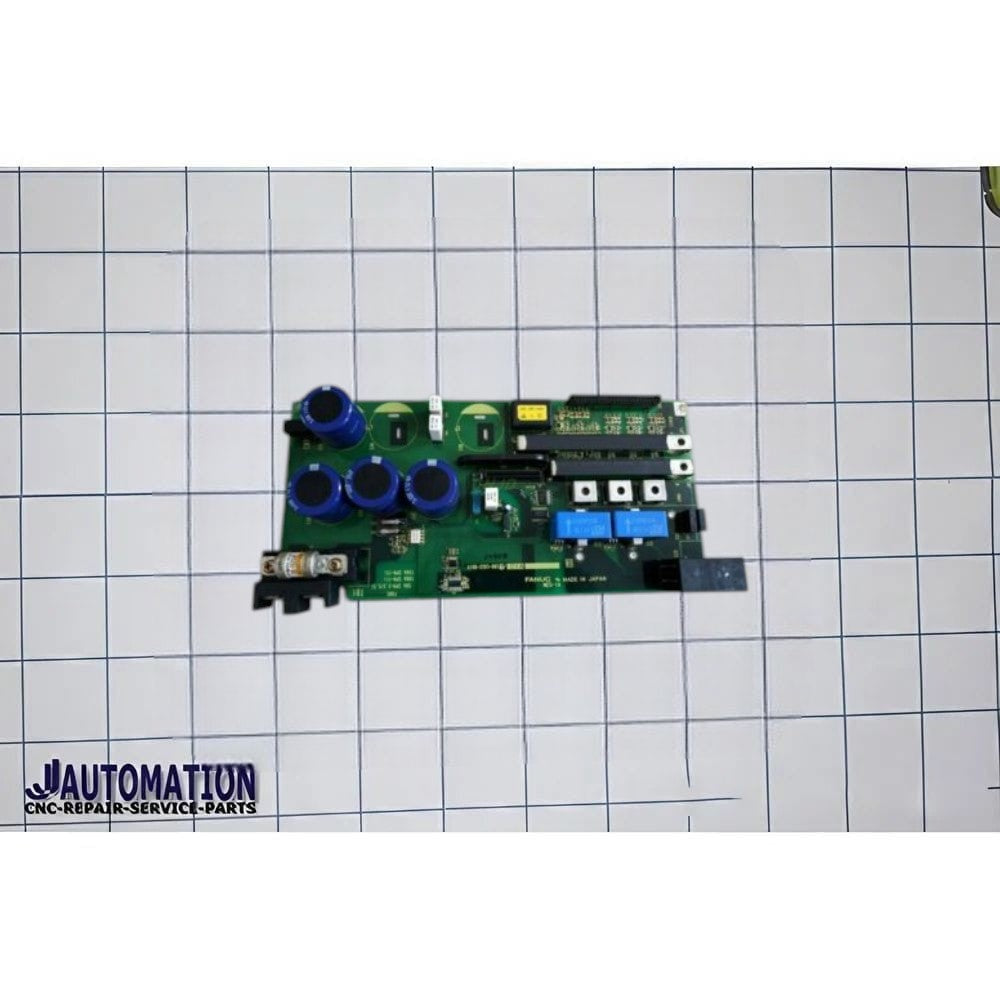

🔧 A16B-2203-0657 — Description
A16B-2203-0657 is a FANUC internal PCB (printed circuit board) used in CNC spindle amplifier / drive modules, typically in the Alpha i spindle amplifier (aiSP / SPM series) and related A06B-6141 systems.
📌 Full Technical Description
- Manufacturer: FANUC
- Part Number: A16B-2203-0657
- Type: Internal spindle amplifier control PCB
- Series: A16B-2203
- Application: CNC spindle drive electronics (industrial machine tools)
⚙️ Function (What it does)
- Acts as an internal control/interface board inside the spindle amplifier
- Handles:
- Signal processing between CNC controller and spindle drive
- Internal communication between power and control sections
- Drive logic and monitoring functions for spindle operation
👉 In simple terms:
It is a core electronic board inside the spindle amplifier that helps control the spindle motor in a CNC machine.
🏭 Where it is used
- Installed inside:
- FANUC Alpha i spindle amplifier modules (A06B-6141 series)
- aiSP / SPM spindle drive units
- Used in:
- CNC machining centers
- CNC lathes
- Industrial milling machines
(Industry listings show it as a refurbished/spare spindle amplifier PCB used in FANUC CNC systems )
🧩 Key characteristics
- Not a standalone unit (internal PCB only)
- Part of a larger spindle amplifier assembly
- Must match:
- Exact amplifier model (e.g., A06B-6141 variants)
- Machine configuration and power rating
- Typically repaired or exchanged as a module, not replaced at component level
⚠️ Important notes
- ❗ Usually discontinued or service-exchange only
- ❗ Compatibility is strict (suffix matters)
- ❗ Failure symptoms may include:
- Spindle not enabling
- Drive alarms
- Communication or power faults in spindle unit
👍 Summary
A16B-2203-0657 = FANUC spindle amplifier internal control PCB
➡️ Used inside A06B-6141 / aiSP spindle drives
➡️ Handles control + communication + monitoring functions
➡️ Critical internal board, not a standalone module
