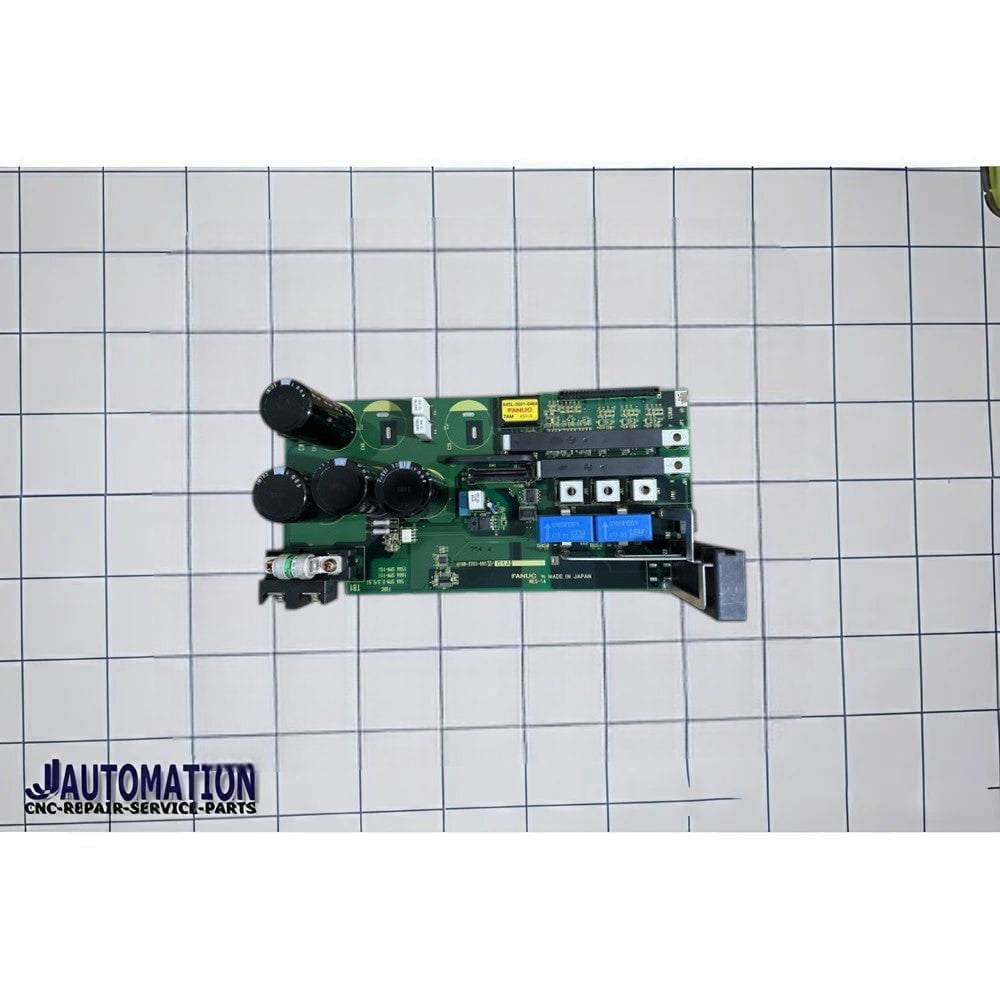

🔧 A16B-2203-0659 — Description
A16B-2203-0659 is a FANUC spindle amplifier internal PCB (printed circuit board) used in CNC machine tool drive systems, especially in Alpha i spindle amplifier (aiSP / SPM series) configurations.
📌 Full Technical Description
- Manufacturer: FANUC
- Part Number: A16B-2203-0659
- Type: Internal spindle drive PCB / backplane board
- Series: A16B-2203
- Application: CNC spindle amplifier module (industrial machine tools)
⚙️ Function (What it does)
- Acts as a main internal interface / backplane board inside the spindle amplifier
- Handles:
- Signal distribution between control and power sections
- Internal communication inside the drive module
- Connection routing for other A16B-2203 sub-boards
👉 In simple terms:
It is the central “backplane” board inside the spindle amplifier that connects and coordinates other internal PCBs.
🏭 Where it is used
- Installed inside:
- FANUC Alpha i spindle amplifier modules (A06B-6141 series and related aiSP units)
- Used in CNC machines such as:
- Machining centers
- CNC lathes
- Milling systems
👉 Real-world listings confirm it as a FANUC servo/spindle drive backplane PCB used in industrial CNC systems
🧩 Role in the A16B-2203 family
Within this PCB family:
- 0620–0623 → control / interface logic boards
- 0650–0653 → wiring / power distribution boards
- 0656–0658 → control & support variants
- 0659 → backplane / main internal interconnect board
👉 It is one of the key structural boards that ties the whole spindle amplifier electronics together.
⚠️ Important notes
- ❗ Not a standalone module (only works inside amplifier unit)
- ❗ Must match exact spindle amplifier model (e.g., A06B-6141 variant)
- ❗ Typically replaced via:
- complete amplifier exchange
- or board-level refurbishment
- ❗ Failure can cause:
- spindle drive not powering up
- multiple internal communication alarms
- complete spindle shutdown
👍 Summary
A16B-2203-0659 = FANUC spindle amplifier backplane PCB
➡️ Central internal interconnect board
➡️ Links multiple control and power PCBs inside spindle drive
➡️ Critical for full spindle amplifier operation
