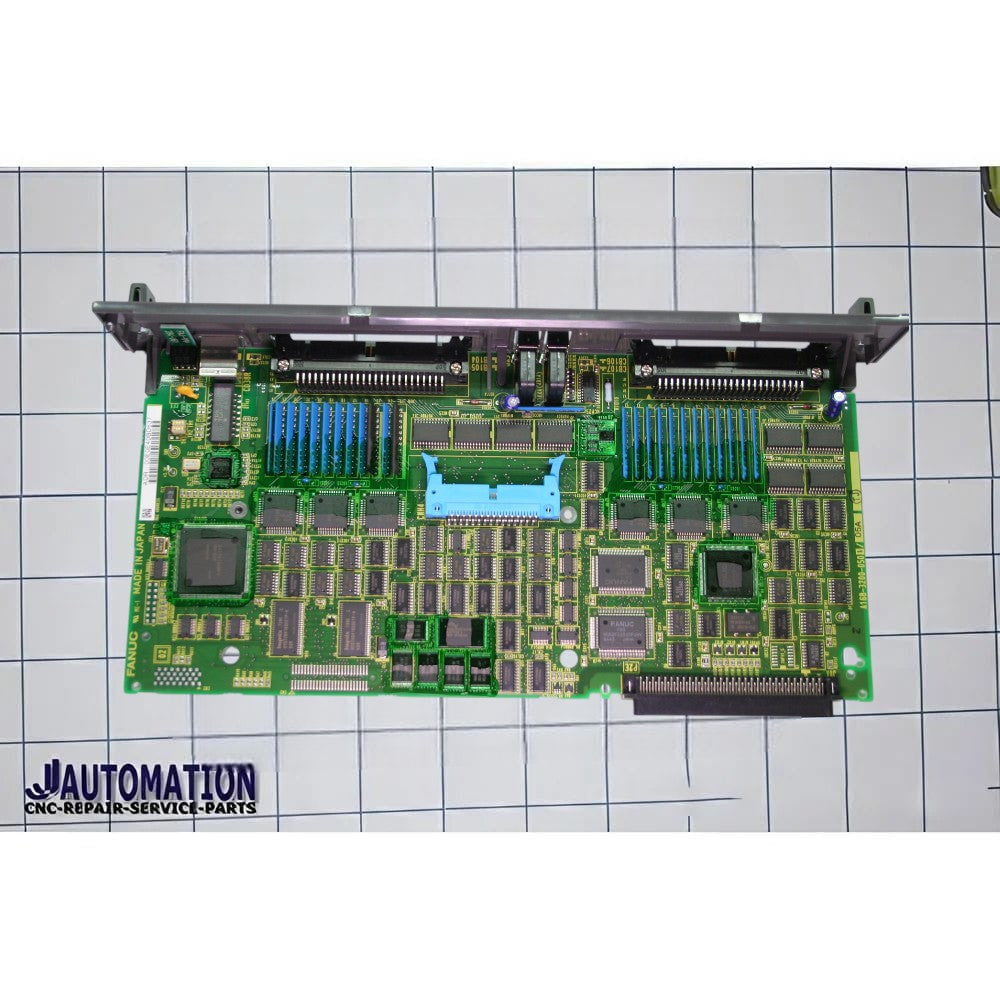

📌 FANUC A16B‑3200‑0501 — ZERO iB I/O PCB with Data Server
Description:
The FANUC A16B‑3200‑0501 is an I/O interface printed circuit board (PCB) used in FANUC ZERO iB series CNC controllers. It functions as an I/O board with integrated data server capabilities, handling input/output signal routing between machine field devices (sensors, switches, actuators) and the CNC’s internal logic, while also providing data communication support to the controller.
Key Features & Purpose:
-
🧠I/O Interface Module: Acts as the primary input/output board for the controller, connecting discrete signals and machine interface wiring to the CNC’s internal processing system.
-
💾 Data Server Capabilities: Includes a data server function — enabling enhanced I/O data handling, communication, and possibly logging/interface tasks within the ZERO iB controller architecture.
-
🔌 Control Series: Designed for use with FANUC ZERO iB CNC systems (a variant of FANUC’s 0i series) that require I/O expansion with data management functions.
-
📊 Integration: Typically installed on the CNC’s internal backplane and works with other main control boards such as the CPU and memory modules to form the complete control electronics network.
Typical Applications:
-
CNC machine tools with a ZERO iB control architecture, where this board handles machine I/O and links it efficiently to the rest of the controller.
-
Environments where both real‑time I/O processing and data serving/communication between modules or with external devices are needed.
