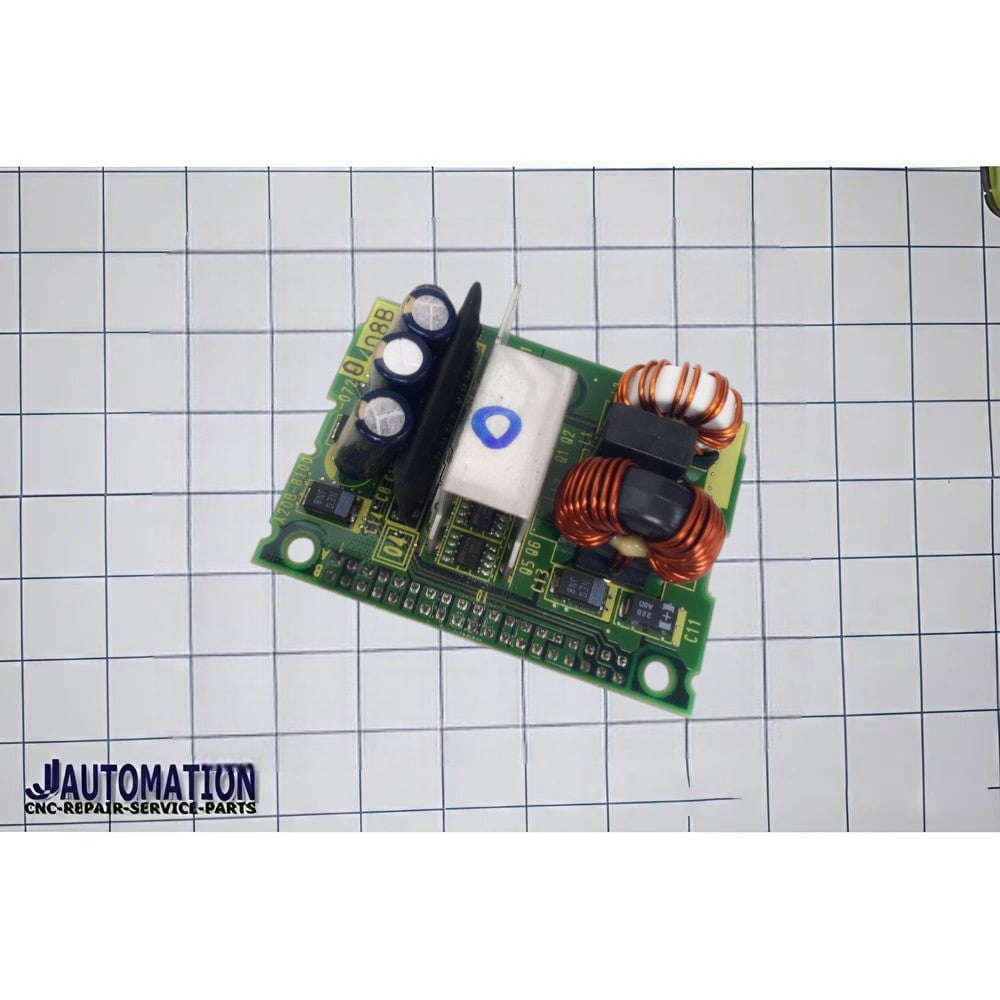

A20B-8100-0720 is a Panel-i terminal interface printed circuit board (PCB) used in CNC operator display systems made by FANUC.
📌 Description
-
Part Number: A20B-8100-0720
-
Board Type: Panel-i terminal interface PCB
-
Series: A20B-8100 board series
-
Application: CNC operator display / Panel-i interface system
⚙️ Function
This board is used inside the Panel-i display unit and is responsible for:
-
Handling communication between the CNC control and the display panel
-
Managing operator interface signals (keyboard, soft keys, screen data)
-
Supporting the terminal interface processing of the operator display system
🧩 Typical System Use
The board is commonly installed in display units used with FANUC i-Series CNC controls, such as:
-
16i
-
18i
-
21i
-
some 0i models
It usually works together with other display boards like:
-
A20B-8100-0800 (main CPU board for the Panel-i terminal)
-
LCD control boards in the display module.
🧠 Summary
A20B-8100-0720 = Panel-i terminal interface PCB used in FANUC CNC display units to manage communication and operator interface signals between the control and the display panel.
