Description
📌 What This Part Is

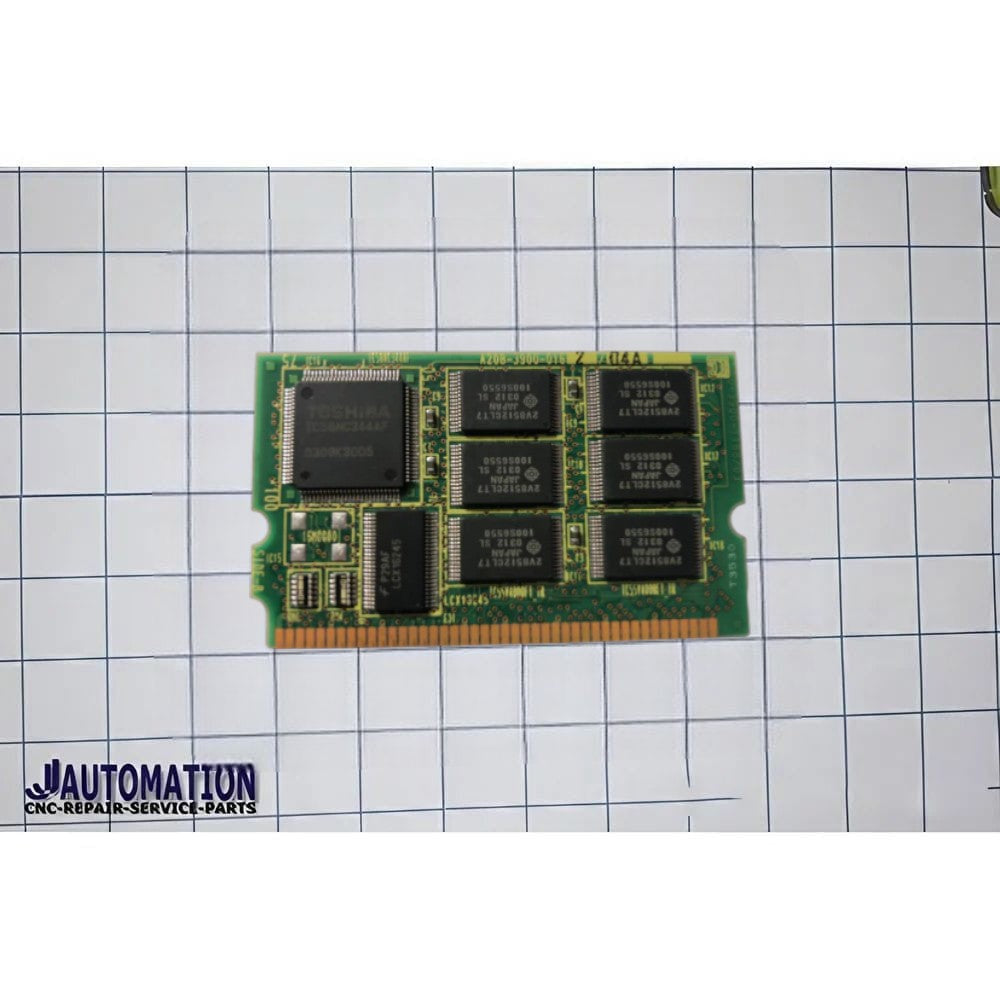

The FANUC A20B‑3900‑0162 is a memory board/module used in industrial FANUC CNC controller systems. It combines Flash ROM (FROM) and Static RAM (SRAM) on one module to store essential controller firmware, configuration data, and runtime information.
🧠 Key Functions
-
💾 Data Storage: This module typically includes 16 MB of Flash ROM (FROM) — used for storing the CNC controller’s firmware and system programs.
-
⚡ Working Memory: It also includes 3 MB of SRAM — used as working memory for runtime data and controller variables.
-
📋 Critical Role: Without a functioning memory module like this, a FANUC CNC controller may fail to initialize properly or could lose stored parameters and system programs if the memory data is corrupted or missing.
-
🔌 Integration: Installed inside the controller electronics rack or motherboard assembly, this module interfaces with the main logic/CPU boards to provide the controller with persistent storage and operational memory.
🛠️ Typical Use
-
Designed for use in FANUC Series 20 and i‑Series “B” controllers (including 16i‑B, 18i‑B, 21i‑B and similar legacy systems), where systems require non‑volatile firmware storage and volatile SRAM for runtime tasks.
-
Often found in older or legacy CNC controller hardware that uses FROM/SRAM modules for core memory rather than modern flash or SSD storage.
