Description

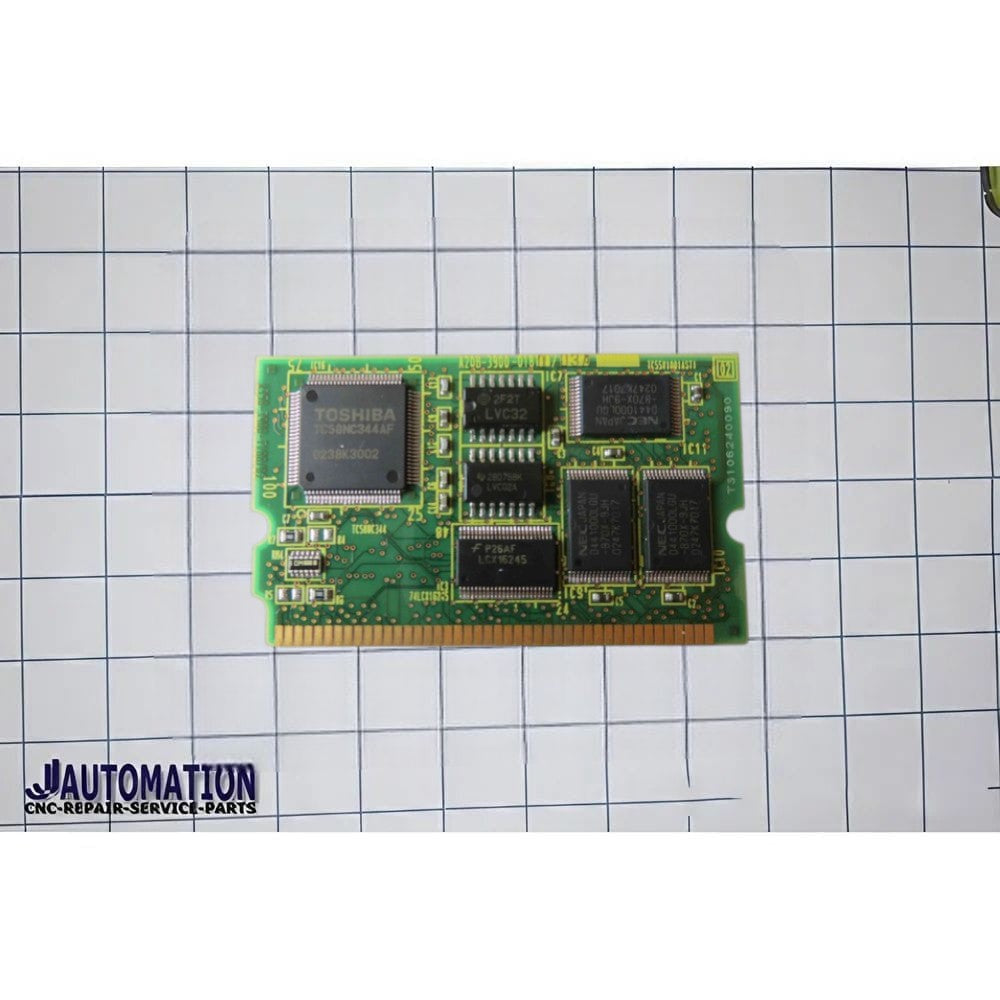

A20B-3900-0180 is an internal memory board (FROM + SRAM) used in various FANUC CNC controllers. It stores essential system firmware and battery-backed runtime/parameter data that the controller needs to operate correctly.
📌 What It Is
-
Part Number: A20B-3900-0180
-
Type: FROM/SRAM memory module (PCB)
-
Memory Specs:
-
FROM (Flash ROM): 16 MB — contains the CNC controller’s core software/firmware.
-
SRAM: 256 KB — battery-backed memory that retains parameters and settings.
-
-
Product Series: FANUC A20B-3900 family of memory boards used in CNC control electronics.
🧠 Function in CNC Controllers
This module sits inside the CNC controller electronics and provides both non-volatile storage (FLASH) for firmware and volatile (but battery-backed) RAM for machine parameters and runtime data. Without it (or if it fails), the controller may:
-
Fail to boot up properly
-
Lose machine configuration and parameter data
-
Display memory-related alarms on startup
🛠 Installation & Use
-
-
It typically plugs into a memory slot on the main controller board or backplane alongside other control modules.
-
When replacing this module, it’s important to restore FROM files and parameter backups to the controller afterward; otherwise factory/old parameters might be lost.
-
