Description

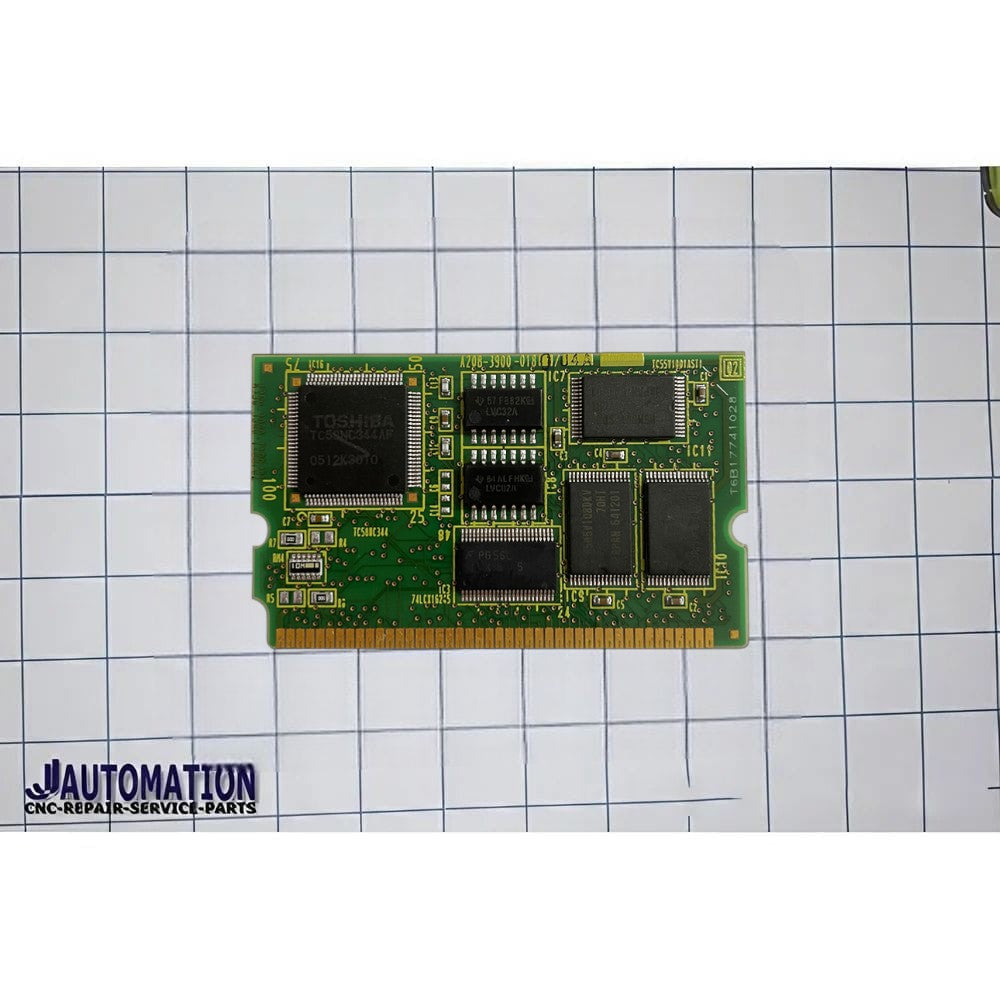

The FANUC A20B-3900-0182 is a memory module used in industrial FANUC CNC controller systems. It combines Flash ROM (FROM) for firmware/program storage and SRAM for parameter/runtime data needed by the controller electronics.
đź“Ś What It Is
-
Part Number: A20B-3900-0182
-
Type: FROM + SRAM memory module (printed circuit board)
-
Memory Configuration:
-
32 MB Flash ROM (FROM) — holds the CNC controller’s core firmware and system programs.
-
256 KB SRAM — battery-backed memory used for storing runtime data, machine parameters, and settings.
-
🧠Function in FANUC CNC Controllers
This module sits inside the controller’s electronics alongside CPU boards and other control modules. Its role is critical because:
-
FROM stores the firmware and control software that the CNC needs to boot and operate.
-
SRAM retains configuration data, parameters, and runtime variables, often backed by a battery so this information isn’t lost when the machine is powered off.
If this memory module fails or is missing, the CNC controller may fail to initialize, lose saved machine parameters, or throw memory-related alarms at startup.
⚙️ Installation & Notes
-
When replacing the A20B-3900-0182 module, all FROM files, parameters, and programs must generally be reloaded from backups after installation to restore the controller to correct operation.
-
It’s part of the broader A20B-3900 series of FANUC memory modules, which come in various combinations of FROM and SRAM sizes for different controller models.
