Description

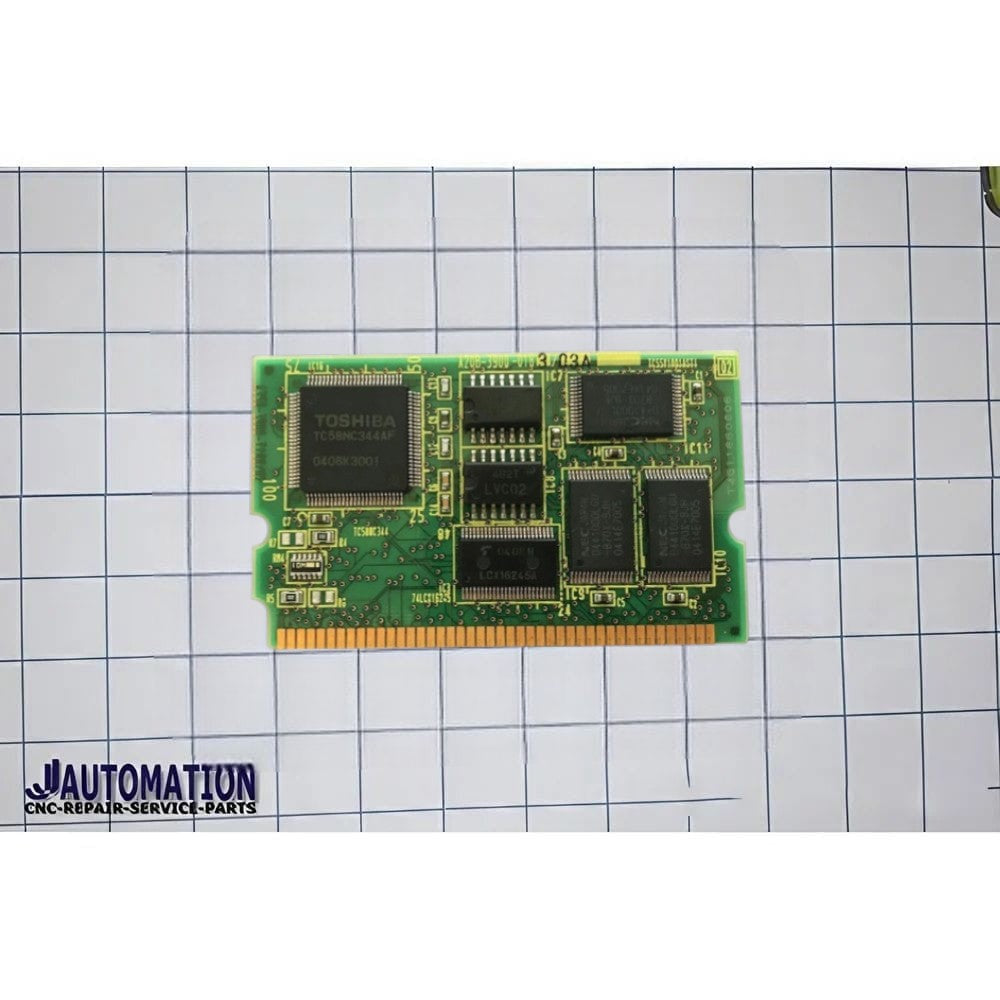

The FANUC A20B-3900-0183 is a memory card/module used inside industrial FANUC CNC controller systems. It combines Flash ROM (FROM) and Static RAM (SRAM) on a single board — providing both permanent storage for firmware and a reservoir for runtime data and machine parameters.
📌 What It Is
-
Part Number: A20B-3900-0183
-
Type: FROM + SRAM memory module (printed circuit board)
-
Memory Configuration:
-
32 MB Flash ROM (FROM) — stores essential firmware and system programs
-
512 KB SRAM — battery-backed memory for parameters and runtime variables
-
🧠 Function in a FANUC CNC Controller
This module sits inside the controller electronics alongside CPU cards, servo/axis modules, and other memory boards. Its roles include:
-
💾 Firmware Storage: Holding the CNC’s operating software and control routines that the system loads at startup.
-
⚡ Parameter Memory: Storing machine settings, configuration parameters, and other runtime information that must be retained even when the controller is powered off — supported by a backup battery on the SRAM portion.
-
⚠️ Controller Boot & Operation: Without a functioning memory module like this, a FANUC CNC controller may fail to boot or throw memory/parameter errors.
📋 Typical Compatibility
Memory modules from the A20B-3900 series are used in a variety of FANUC controller families that employ modular memory cards, including older “B” and Series 20 CNC controls such as:
-
FANUC 16i-B
-
FANUC 18i-B
-
FANUC 21i-B
