Description
📌 FANUC A20B-3300-0363 — Display Control Module
Part: FANUC A20B‑3300‑0363
Description:

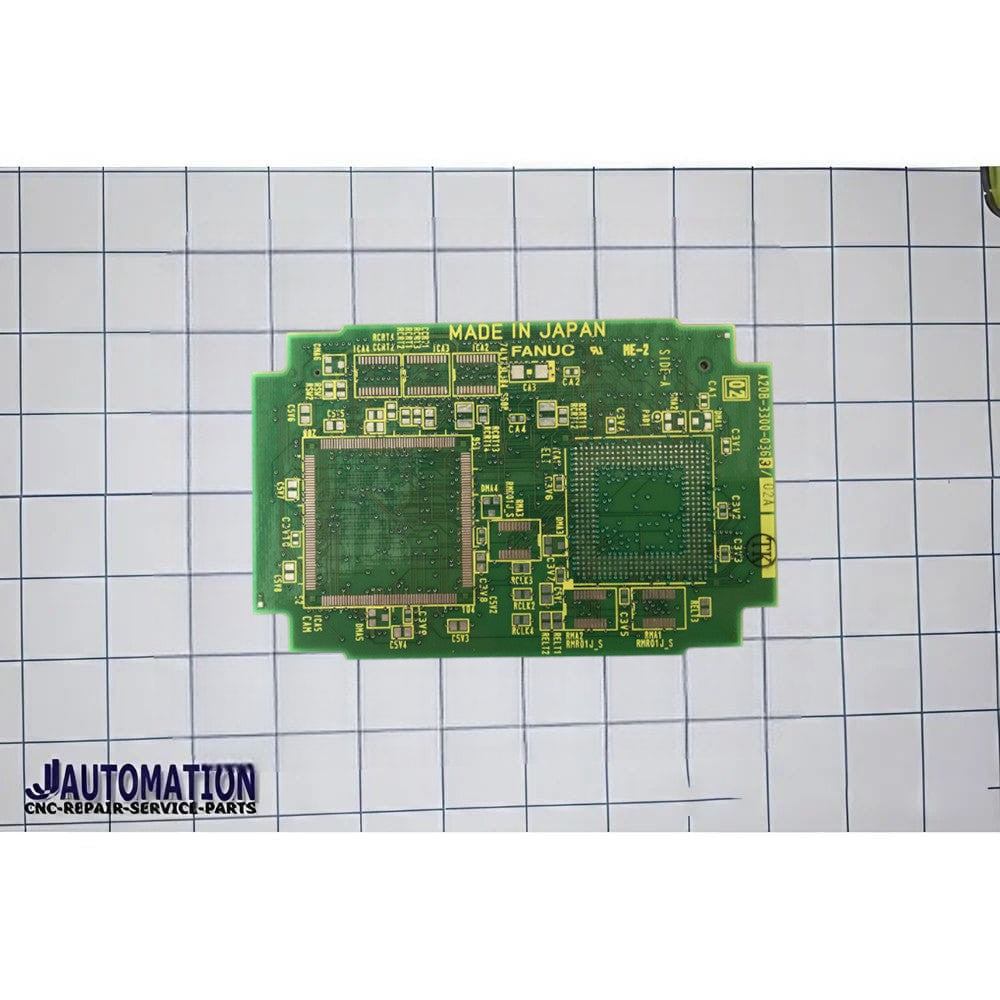

The A20B-3300-0363 is a display control module (display interface PCB) used in FANUC CNC controllers as part of the A20B-3300 series of modular control boards. It is responsible for managing and driving the operator display system, translating internal video/graphics signals into the format needed by the machine’s display hardware.
Function & Use:
-
🖥️ Display Control: Acts as the display control interface for CNC operator screens, helping generate visual output such as machine status, program information, menus, and alarms.
-
🛠️ Integration: Plugs into the controller’s internal backplane or CPU assembly alongside other system boards — works with the CNC’s main CPU and other interface cards to support the human-machine interface (HMI).
-
🔌 Modular Series: Part of the A20B-3300 family of FANUC control PCBs that includes CPU modules, axis control cards, and display modules for older/modular FANUC systems.
