Fanuc Graphic Card for 16i/ 18i/ 21i A20B-3300-0301

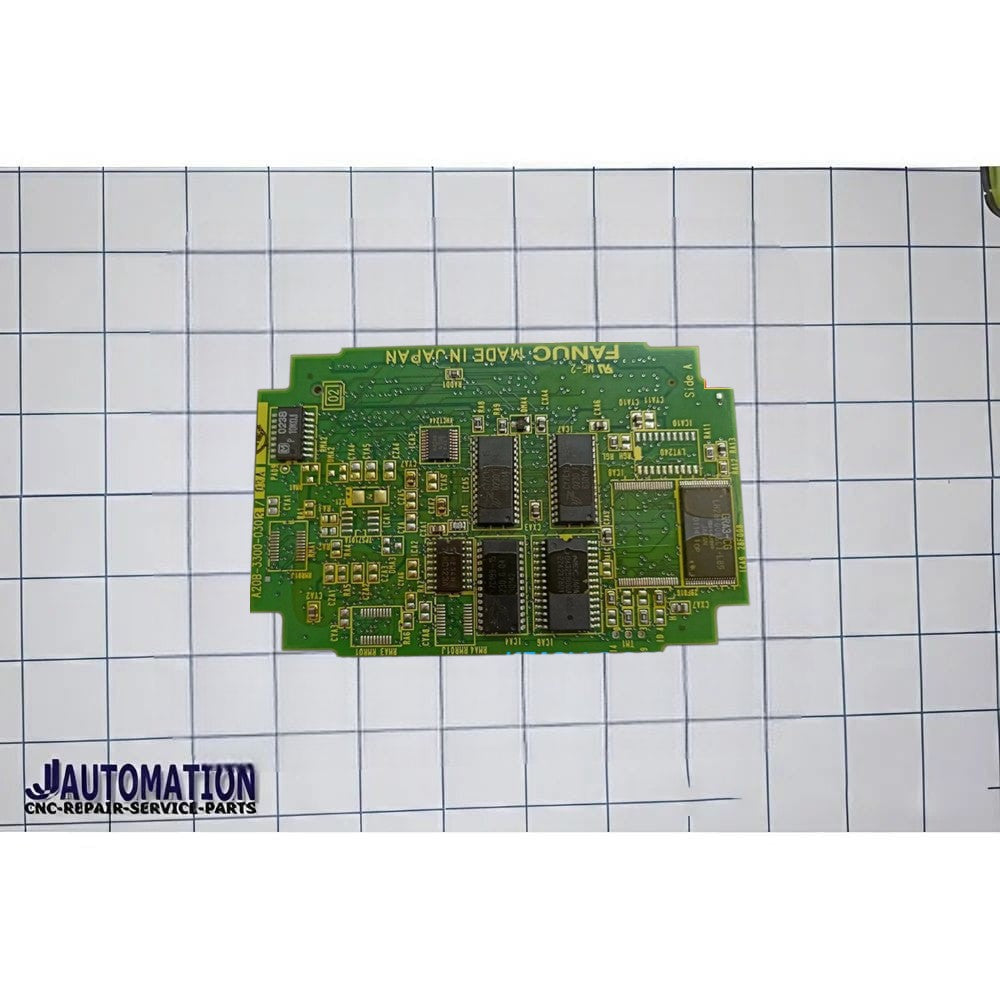

A20B-3300-0301 is a printed circuit board (PCB) used in CNC control systems made by FANUC.

---

📌 Basic Information

• Part Number: A20B-3300-0301

• Type: Printed Circuit Board (PCB)

• Category: Control / Interface Board

• Used In: FANUC CNC controllers (commonly Series 0i / 16i / 18i / 21i / 30i, depending on machine configuration)

---

⚙️ Main Functions

The A20B-3300-0301 board is used for internal system communication and control processing within the CNC controller.

Typical functions include:

• Data communication between CNC system modules

• Signal processing for machine control

• Interface management with other CNC boards

• Supporting overall CNC control system operations

---

🧩 Installation Location

This board is normally installed:

• Inside the CNC control cabinet

• On the main control rack or motherboard

• Connected through the FANUC backplane system

---

🔎 Relation to Similar Boards

The A20B-3300-03xx PCB series includes several similar boards, such as:

• A20B-3300-0300

• A20B-3300-0301

• A20B-3300-0302 (and other revisions)

Differences usually involve hardware revisions, firmware compatibility, or specific machine configurations.

---

✅ Simple explanation:
A20B-3300-0301 = FANUC internal CNC control PCB used for communication and signal processing inside the CNC controller. 🔧

---

If you want, I can also show you which A20B-3300 boards are CPU boards, I/O boards, or communication boards in FANUC CNC systems, which is useful when troubleshooting or replacing parts.
