Description

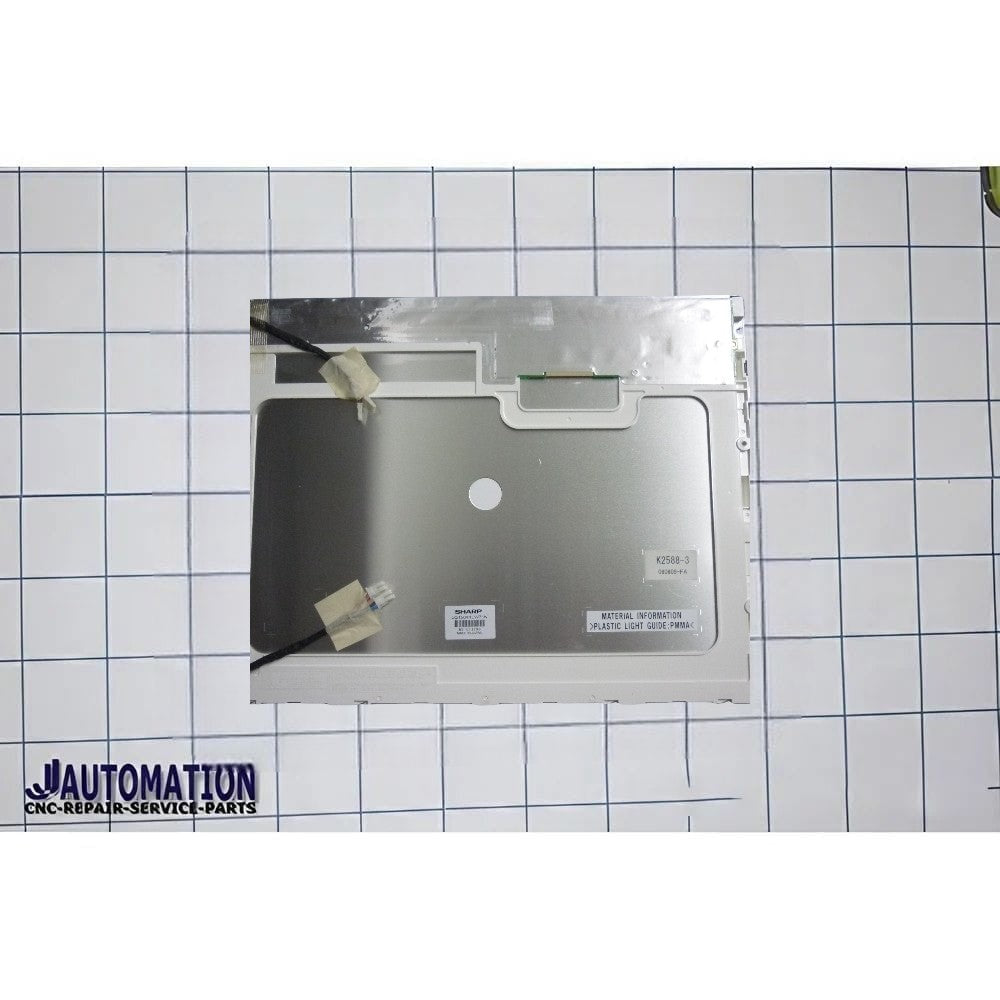

The LQ150X1LW71N is a 15.0-inch industrial TFT LCD display module from Sharp designed for professional and industrial applications such as HMIs, embedded systems, operator panels, CNC/PLC interfaces, and custom display equipment. It’s a bare panel — meaning it doesn’t include a housing, enclosure, controller board, or touchscreen by default.
📊 Key Specifications
-
Screen Size: 15.0 inch diagonal
-
Resolution: 1024 × 768 (XGA) — 4:3 aspect ratio
-
Panel Type: a-Si TFT-LCD, RGB vertical stripe
-
Active Area: ~304.1 × 228.1 mm
-
Brightness: ~250 cd/m² (typical)
-
Contrast Ratio: ~400 : 1 (typical)
-
Display Colors: ~16.2 million (≈70 % NTSC)
-
Viewing Angle: ~85°/85°/85°/85° (L/R/U/D) (typical)
-
Response Time: ~25 ms (Tr+Td)
-
Surface Treatment: Matte with anti-glare (Haze ~25 %) and hard coating (3H)
-
Signal Interface: LVDS, 20-pin (1-channel 8-bit)
-
Backlight: CCFL (4 lamps, ~50,000 h) without driver
-
Refresh Rate: 60 Hz
-
Operating Temp.: ~0 °C to 60 °C
-
Storage Temp.: ~-25 °C to 60 °C
-
Panel Dimensions: ~331.6 × 254.76 × 13 mm (W×H×D)
-
Weight: ~1.30 kg
🔌 Interface & Integration:
-
The panel uses an LVDS digital interface (20-pin) for video input.
-
Since this is a bare panel, it must be connected to a compatible LCD controller board (e.g., LVDS to HDMI/VGA/DisplayPort) and a backlight driver/inverter if you plan to drive it from standard video sources like PC, SBC (Raspberry Pi), or embedded boards.
