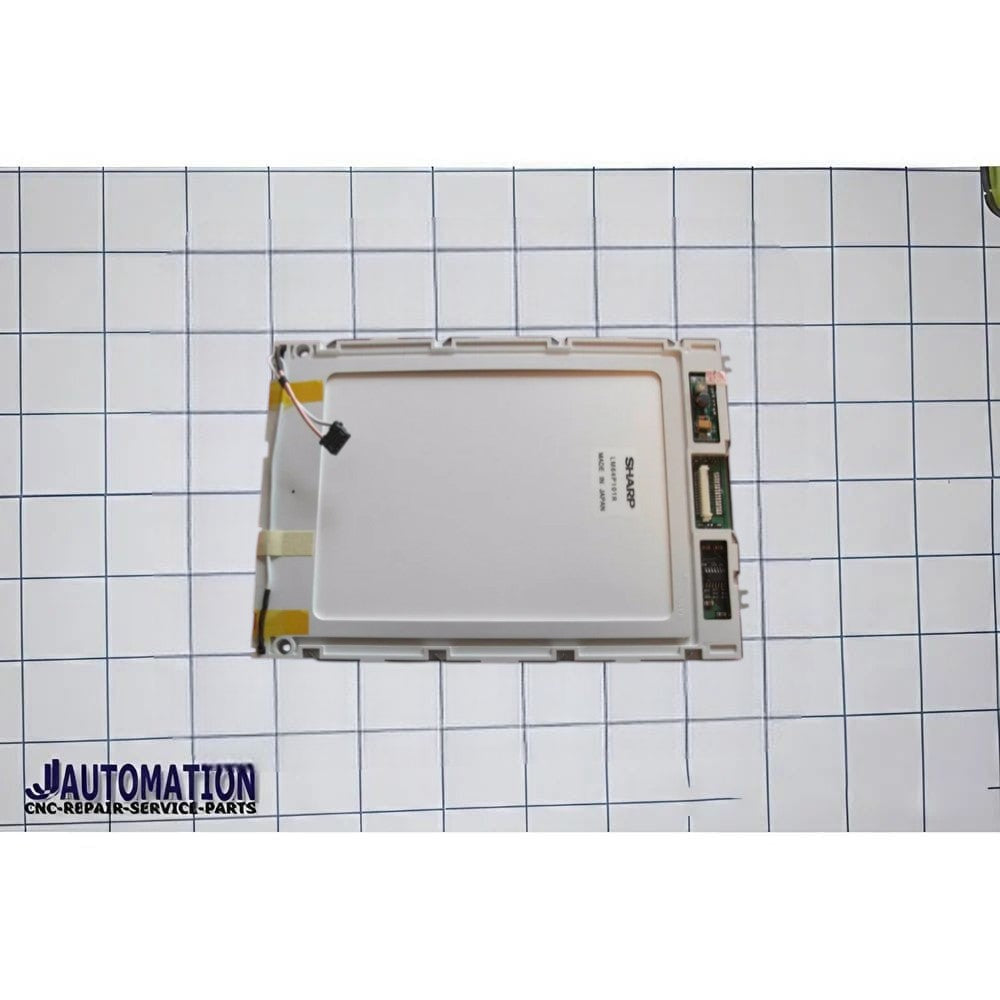

📺 Sharp / NTS LM64P101R — 7.2″ FSTN Monochrome LCD Panel
The LM64P101R is a 7.2-inch monochrome industrial LCD module made by Sharp and sold under various distributors (like NTS). It’s designed primarily for industrial equipment displays and embedded systems where a durable, readable black-and-white screen is needed — such as CNC machine interfaces, legacy HMIs, control panels, measurement instruments, and similar embedded devices.
🧠 Key Specifications
-
Screen Size: 7.2 inch diagonal (landscape)
-
Resolution: 640 × 480 (VGA) — classic industrial graphics size
-
Display Technology: FSTN-LCD (Film-compensated STN) — monochrome, transmissive, normally white
-
Display Colors: Monochrome (black & white)
-
Brightness: ~70 cd/m² (typ.)
-
Contrast Ratio: ~18 : 1 (typ.)
-
Active Area: ~147.18 × 110.38 mm
-
Pixel Pitch: ~0.23 × 0.23 mm (~110 PPI)
-
Backlight: 1 × CCFL lamp (Cold Cathode Fluorescent — inverter/driver required)
-
Signal Interface: Parallel Data via 15-pin connector (typically 4-bit parallel)
-
Display Mode: STN, black & white
-
Orientation: Landscape type
-
Applications: Industrial PC displays, embedded equipment readouts, HMI operators
