Description

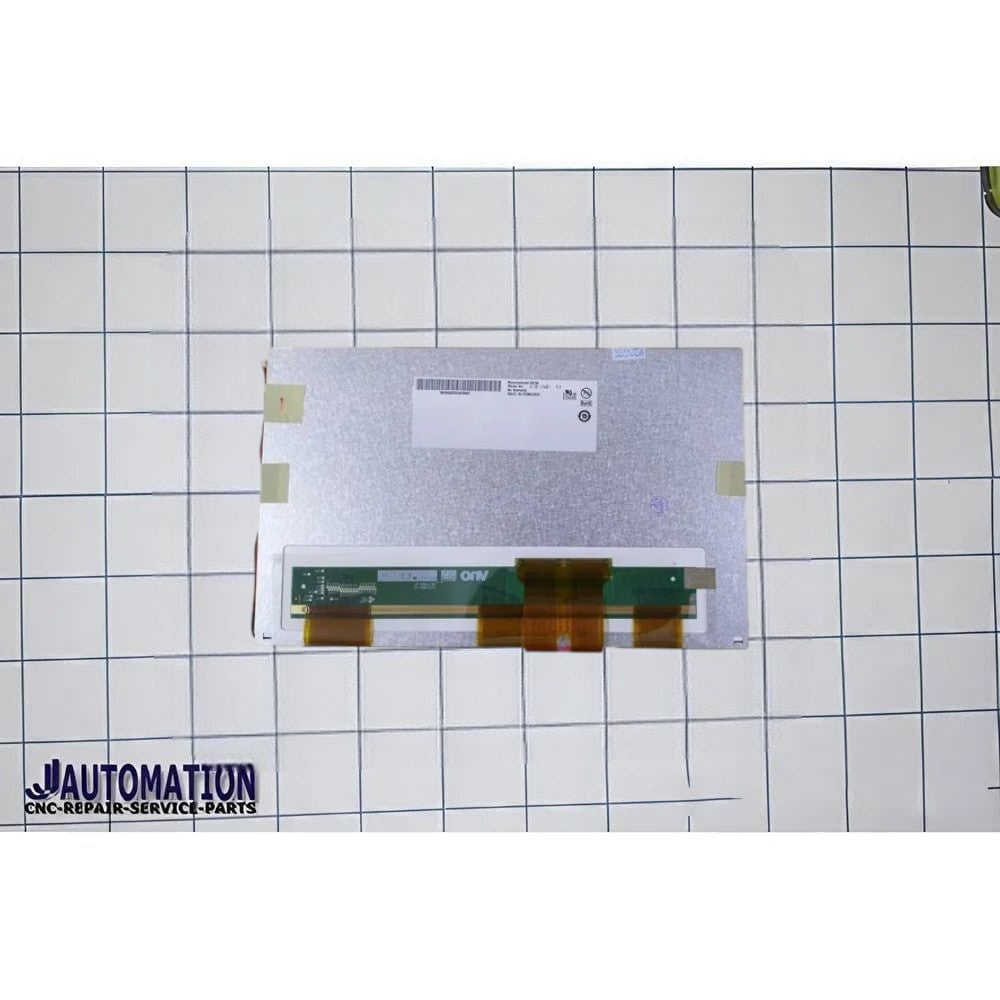

The A101VW01 family from AU Optronics (AUO) is a line of 10.1-inch TFT LCD display modules widely used in industrial, embedded, and consumer electronic applications like digital photo frames, portable DVD players, and custom display integrations. The V.3 variant is one of the common versions with an LED backlight.
🧠 Core Specifications
-
Display Size: 10.1 inch diagonal, landscape format
-
Resolution: 800 × 480 pixels (WVGA) — wide aspect ratio (~15:9)
-
Panel Type: a-Si TFT-LCD, TN, transmissive, normally white
-
Colors: ~262 K (6-bit)
-
Brightness: ~300 cd/m² (typical)
-
Contrast Ratio: ~500:1 (typical)
-
Viewing Angles: ~65° left/right, ~45° up (typ), ~65° down
-
Response Time: ~12/18 ms (Tr/Td)
-
Backlight: WLED (20 k hours typical) — no driver included
-
Interface: Parallel RGB (1-ch, 6-bit) via 60-pin FPC
-
Active Area: ~219.6 × 131.76 mm
-
Outline: ~235 × 145.9 × ~5.4 mm
-
Surface: Matte / anti-glare
-
Operating Temp: ~-10 °C to +60 °C; Storage ~-20 °C to +70 °C
-
Usage: Embedded systems, industrial controls, DVD players, digital frames
