Description

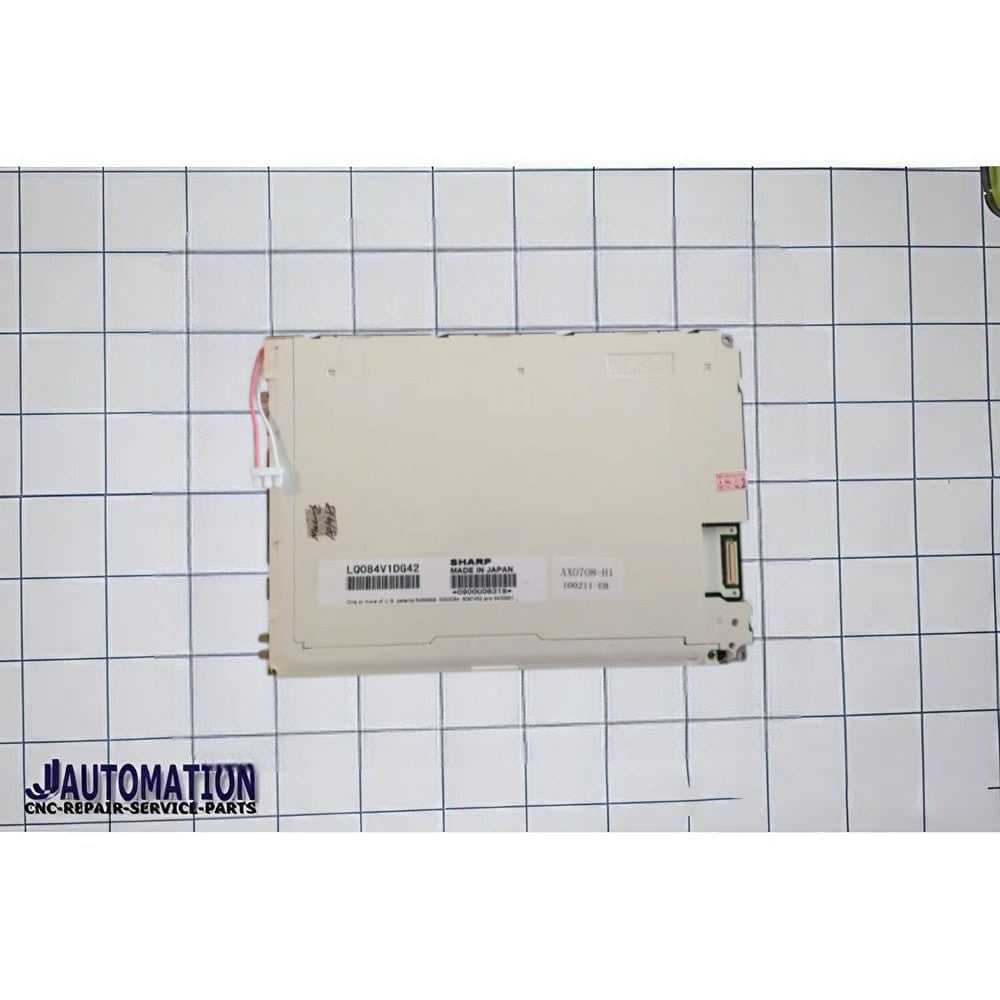

The Sharp LQ084V1DG42 is an industrial-grade 8.4-inch TFT LCD display module from Sharp — a robust panel designed for integration into systems such as CNC machine interfaces, industrial PCs, HMI (Human-Machine Interface) equipment, and other embedded electronics. It is not a complete monitor with enclosure or video ports; you’ll need the appropriate driver/controller board and power supply to use it with standard video sources.
📊 Key Specifications
-
Display Size: 8.4 inch diagonal TFT-LCD
-
Resolution: 640 × 480 (VGA) (RGB vertical stripe)
-
Panel Type: a-Si TFT-LCD, TN, normally white, transmissive
-
Active Area: ~170.88 × 128.16 mm
-
Display Colors: ~262K (~6-bit)
-
Brightness: ~400 cd/m² (typical)
-
Contrast Ratio: ~600 : 1 (typical)
-
Viewing Angles: ~60°/60°/40°/60° (L/R/U/D) (CR ≥ 10)
-
Backlight: 1 × CCFL lamp (Cold Cathode Fluorescent, backlight driver/inverter not included)
-
Signal Interface: Parallel RGB (1-ch, 6-bit) connector
-
Operating Temp: approx. -30 °C to +80 °C (wide industrial range)
-
Storage Temp: approx. -30 °C to +80 °C
-
Pixel Density: ~95 PPI
-
Aspect Ratio: 4:3
