Description

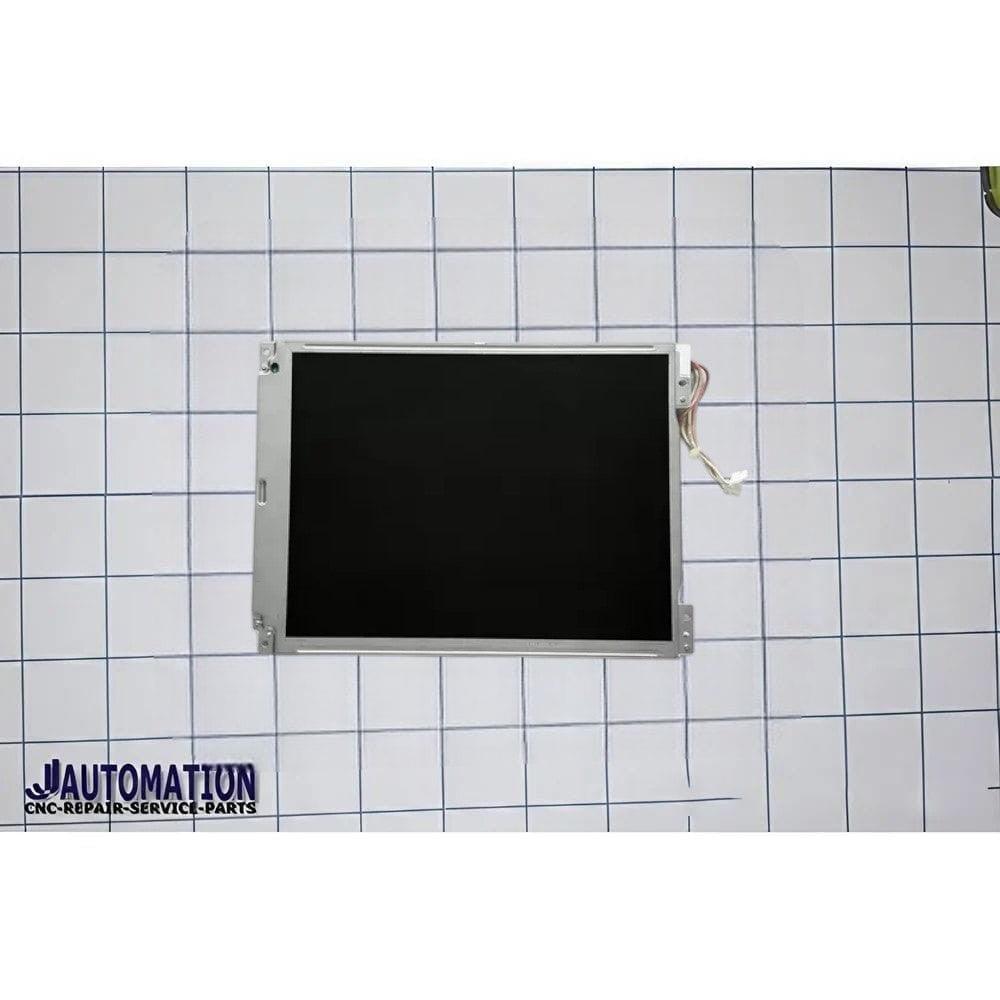

The LQ104V1DG51 is an industrial-grade a-Si TFT-LCD display panel made by Sharp. It’s a bare display module designed for integration into systems like HMIs, embedded controllers, CNC interfaces, industrial PCs, medical or telecom equipment — not a finished monitor with a housing or controller board.
🔍 Key Specifications
-
Screen Size: 10.4 inch diagonal (264 mm)
-
Resolution: 640 × 480 pixels (VGA)
-
Display Type: a-Si TFT-LCD, color, transmissive, normally white
-
Active Area: 211.2 × 158.4 mm
-
Pixel Format: RGB vertical stripe (6-bit color, ~262K colors)
-
Brightness: ~350 cd/m² (typical)
-
Contrast Ratio: ~300 : 1 (typical)
-
Viewing Angle (typ.): 70° left/right, 40° up/down (CR ≥ 10)
-
Response Time: ~20 / 40 ms (rise/fall)
-
Signal Interface: Parallel RGB (1-ch, 6-bit) via 31-pin connector
-
Backlight: 2 × CCFL lamps (~50 000 h life) without driver
-
Outline Dimensions: ~246.5 × 179.4 × 15.5 mm
-
Surface: Matte, hard-coated (3H), anti-reflective
-
Operating Temp.: ~-10 °C to +65 °C
-
Storage Temp.: ~-30 °C to +70 °C
-
Best Viewing Direction: Around 6 o’clock
