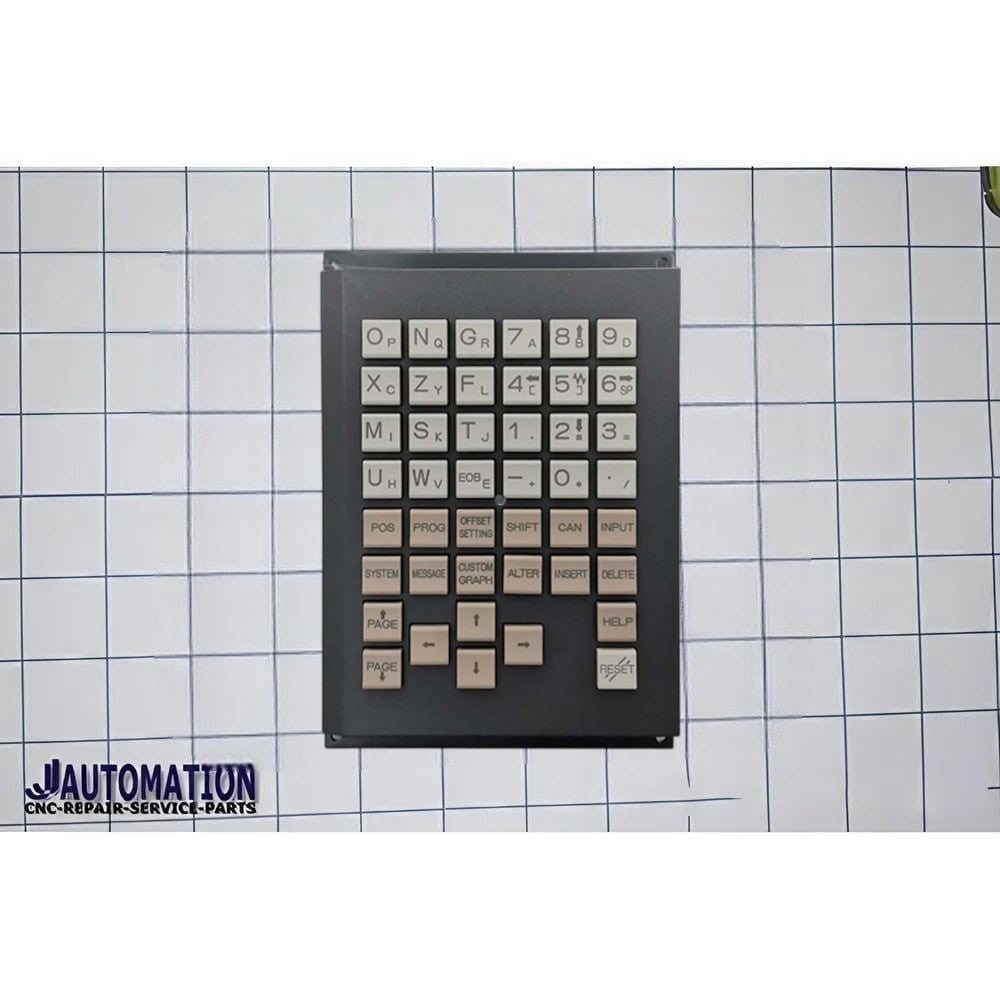

A02B-0281-C120#TBR is a CNC control unit / operator panel module used in CNC systems manufactured by FANUC.
📌 Basic Information
-
Part Number: A02B-0281-C120#TBR
-
Type: CNC Display / Operator Panel Unit
-
Series: FANUC Series 0i-D
-
Category: CNC operator interface module
⚙️ Main Function
The A02B-0281-C120 unit is the display and operation interface for the CNC machine. It allows the operator to interact with the CNC controller.
Main functions include:
-
Displaying CNC screens and machine status
-
Allowing the operator to enter and edit NC programs
-
Showing alarms, diagnostics, and system information
-
Providing manual machine control (MDI, jog, etc.)
-
Communicating with the main CNC controller
🖥️ Typical Features
This module usually includes:
-
Integrated LCD screen
-
Operator keypad / control buttons
-
Interface connection to the CNC main control unit
-
Support for FANUC CNC operation screens
🔎 Meaning of “#TBR”
In FANUC part numbers:
-
#TBR indicates a specific configuration or option of the operator panel.
-
It may define:
-
Display type
-
Keyboard layout
-
Installed interface options
-
Machine builder customization
-
✅ Simple explanation:
A02B-0281-C120#TBR = FANUC 0i-D CNC operator panel with LCD display used for machine operation, program editing, and system monitoring. 🔧
