Description

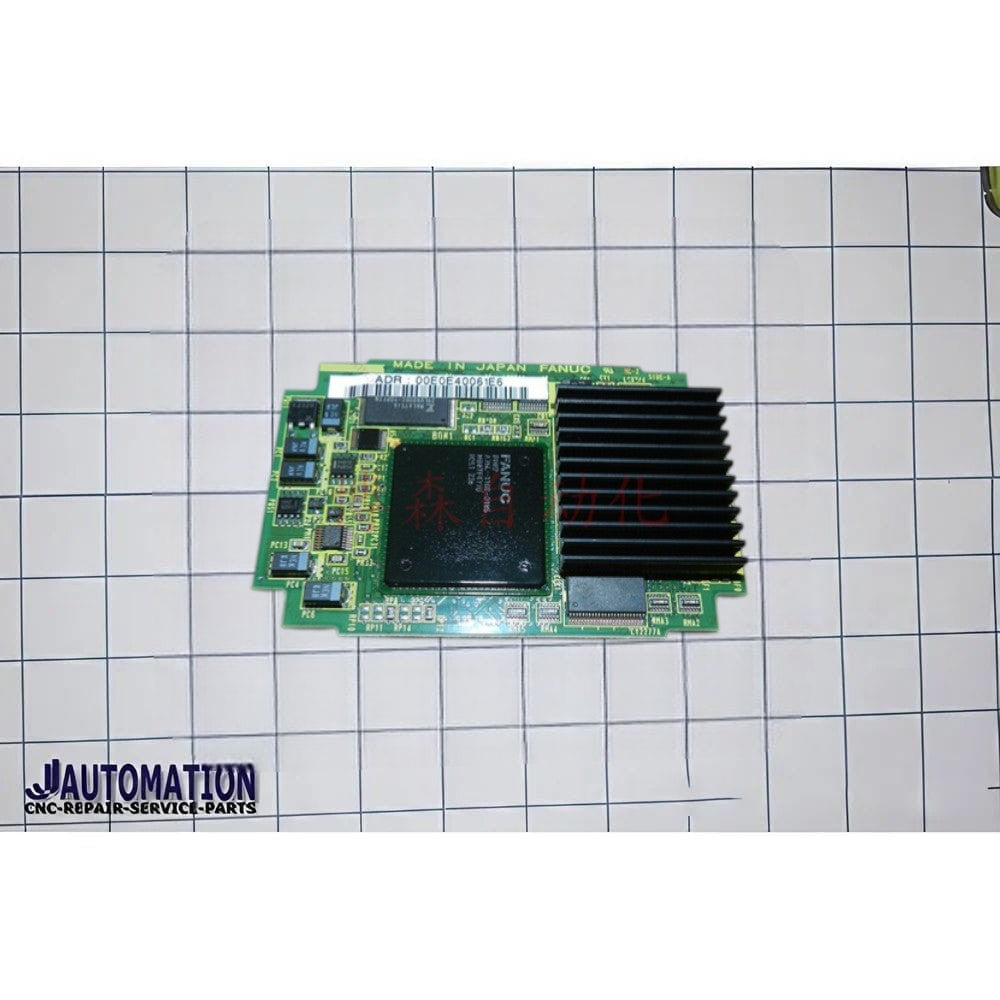

FANUC A20B-3300-0310 is a central CPU module / printed circuit board (PCB) used in industrial CNC controller systems by FANUC — specifically designed for the 16i-B and 18i-B series controls found on many machine tools.
📌 Overview of A20B-3300-0310
-
Part Type: CPU module / control PCB
-
Processor: Pentium-based controller with onboard DRAM (16 MB) for processing CNC logic and system functions.
-
Memory: 16 MB DRAM integrated directly on the board.
-
Usage: Installed internally in the CNC cabinet as the core processing unit that executes control logic, G-code interpretation, and communication with I/O and servo/drive systems.
-
Compatibility: Designed for FANUC Series 16i-B and 18i-B controllers (older “i-B” generation CNC systems) used on milling machines, lathes, and other industrial automation equipment.
-
Form Factor: Printed circuit board that plugs into the controller’s main board or CPU slot.
🧠 What It Does
-
Acts as the primary computing brain of the CNC controller, handling core processing tasks such as motion control algorithms, program execution, and system interrupts.
-
Works alongside other boards in the control system — such as power supplies, I/O modules, graphics or communication interfaces — to fully operate the machine tool.
-
When this board fails or is faulty, machines typically won’t boot or may throw CPU-related alarms.
🛠️ Typical Context & Notes
-
It’s a legacy part for older FANUC CNC systems (Series 16i/18i).
-
Often available new, surplus, or refurbished through third-party vendors, sometimes with repair or testing options.
-
Replacing this board usually requires restoring backed-up machine parameters and programs, since the controller may lose configuration data when CPU/Dram modules are swapped.
