Description

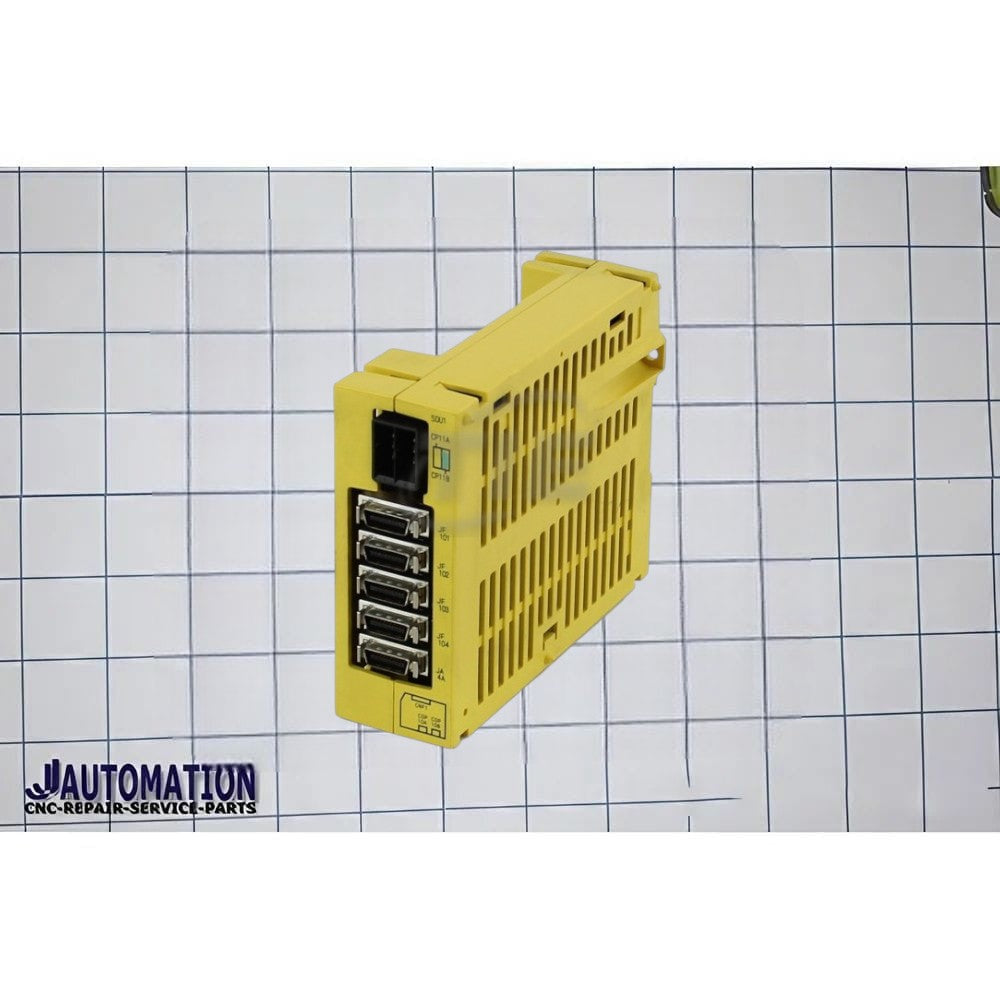

The FANUC A02B‑0236‑C203 is a feedback interface / position detector interface module used in CNC systems. It’s part of FANUC’s A02B‑0236 series of control circuit boards designed to interface position feedback signals from motion components (like encoders) to the CNC controller.
🧠 Function
-
🔄 Separate Detector Interface Module: Acts as an interface for position feedback detection from drives/servo systems to the CNC control system.
-
🛠️ Supports up to 4 Axes: Handles position feedback for four axes, useful in multi‑axis CNC machines.
-
🖥️ Often referred to as SDU1 (Separate Detector Unit 1) or a position feedback interface board.
📌 Typical Use
This board is mounted inside the CNC control cabinet and connects the CNC controller to axis encoders or position detectors on drives/servo amplifiers. It plays a key part in ensuring precise motion control and accurate position reporting in machining operations with FANUC controllers such as the FANUC 16i, 18i, 21i series, and more.
📍 Summary
-
Manufacturer: FANUC
-
Part: Interface PCB / Position Detector Interface Unit
-
Axes: Up to 4‑axis support
-
Used in: CNC machine control cabinets for feedback signal integration and CNC motion control systems.
