Description

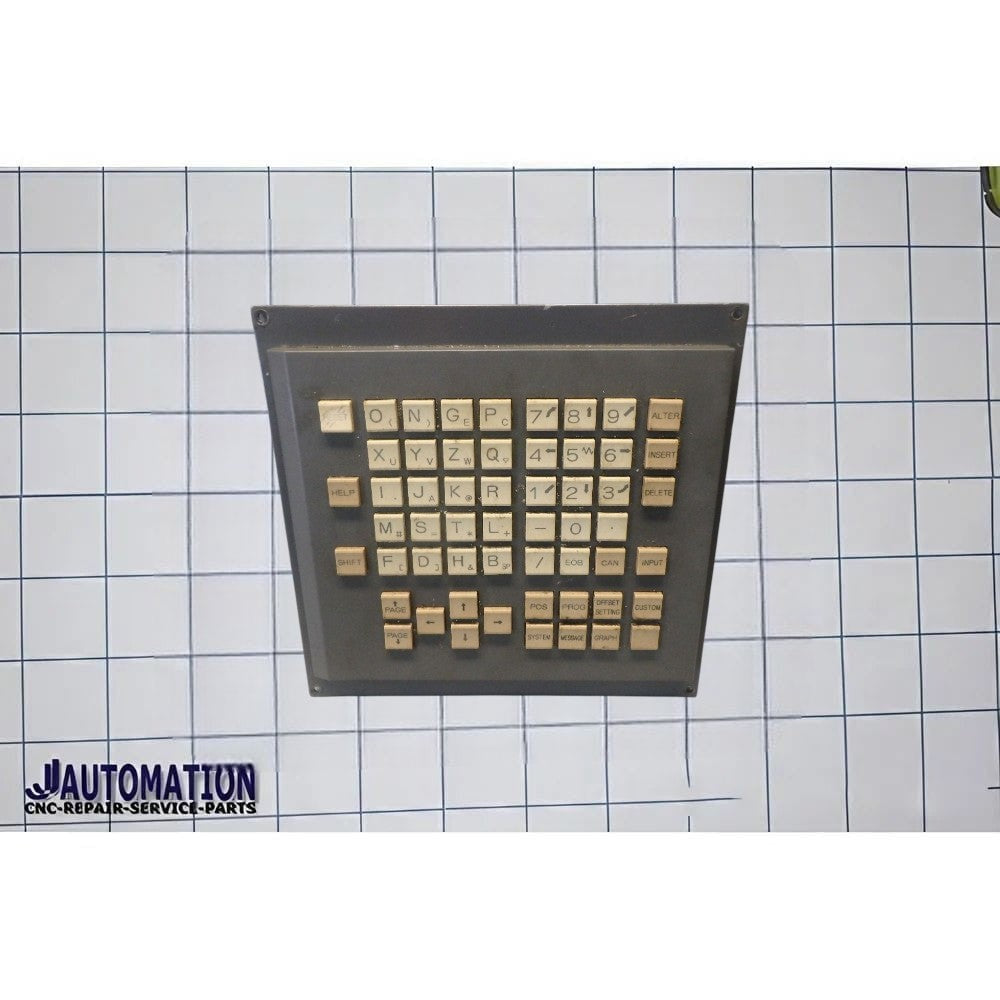

A02B-0281-C120#MBR is a CNC operator panel with integrated LCD display used in CNC machines running controllers from FANUC.
📌 Basic Information
-
Part Number: A02B-0281-C120#MBR
-
Type: CNC Operator Panel / LCD Display Unit (HMI)
-
Controller Series: FANUC Series 0i-D
-
Category: Human–Machine Interface module
⚙️ Main Functions
The A02B-0281-C120 panel is the main operator interface of the CNC machine. It allows operators to monitor and control machine operations.
Key functions include:
-
Displaying CNC operation screens
-
NC program input and editing
-
Showing machine status, alarms, and diagnostics
-
Enabling manual control modes (MDI, jog, handwheel, reference return)
-
Communicating with the CNC main controller
🖥️ Typical Components
This module typically includes:
-
Integrated LCD screen
-
Operator keypad
-
Function keys and soft keys
-
Interface connection to the CNC control unit
🔎 Meaning of “#MBR”
In FANUC part numbers:
-
#MBR indicates a specific configuration version of the operator panel.
-
It may define differences such as:
-
Keyboard layout
-
Regional/language configuration
-
Display options
-
Machine builder customization
-
🧩 Related Models
Within the A02B-0281 operator panel series, similar models include:
-
C120
-
C121
-
C125
These are different versions of FANUC 0i-D operator panels, usually differing in hardware revision, display type, or keyboard configuration.
✅ Simple explanation:
A02B-0281-C120#MBR = FANUC 0i-D CNC operator panel with LCD display used for machine operation, program editing, and monitoring CNC status. 🔧
