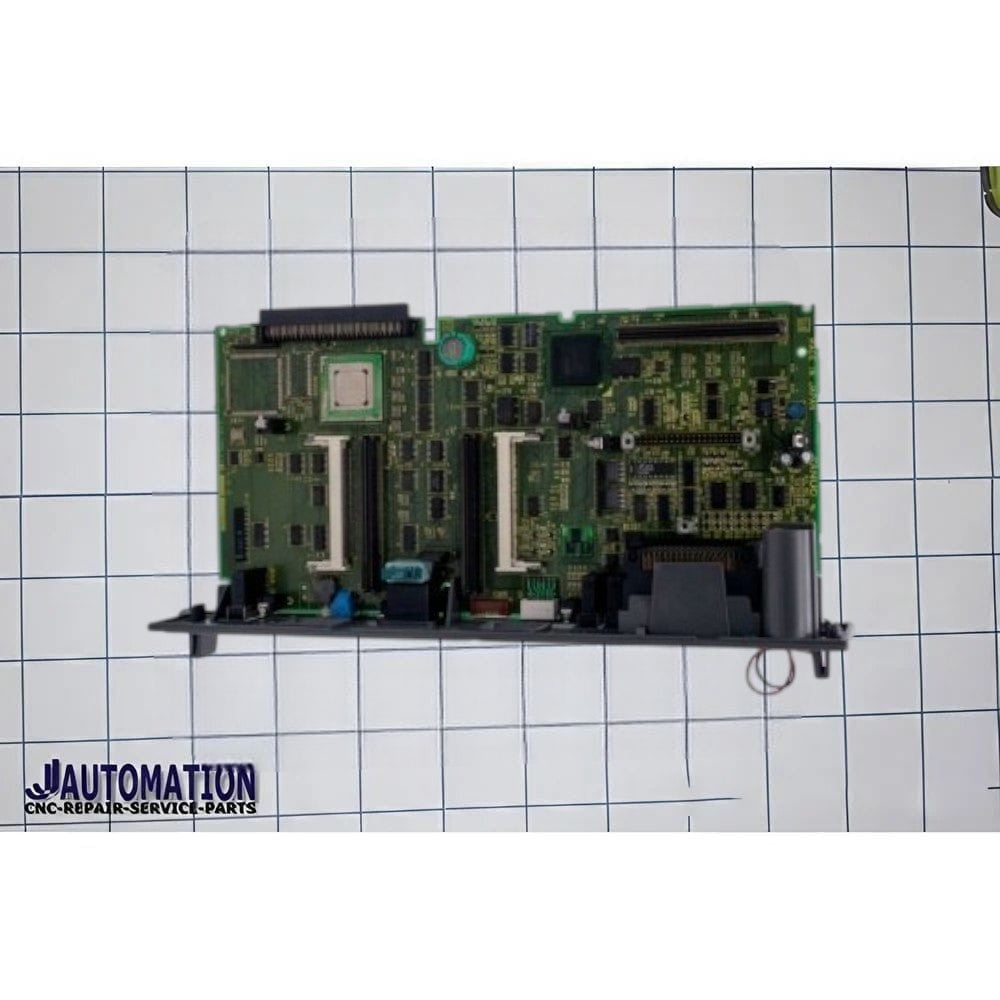

๐ FANUC A16B-3200-0491 โ Main CPU PCB (ZERO i-B / 0i-TB)
Description:
The FANUC A16B-3200-0491 is a main CPU printed circuit board (PCB) used as the central processing board in FANUC CNC controllers, particularly for the 0i-B / 0i-TB family (Series 0i) of control systems. It serves as the brain of the CNC, handling command processing, motion control calculation, system logic, communication, and coordination of other subsystems (memory, I/O, PMC, etc.).
Key Functions & Features:
-
๐ง Main CPU Board: Acts as the primary control board in the CNC, executing firmware instructions, interpreting G-code, and managing machine operation.
-
๐ Integrated with PMC-SB7: Typically designed to work with a PMC-SB7 module for ladder logic processing and auxiliary I/O logic functions.
-
๐ Modular Design: Often supplied without SMD memory modules (SRAM, Flash FROM/DRAM) โ these are installed separately depending on the machineโs configuration.
-
๐ Control Compatibility: Commonly used in FANUC 0i-B / 0i-TB controllers found on milling machines, lathes, machining centers, and similar machine tools.
-
โ ๏ธ Programming Required: After installation/replacement, you must reload all system parameters and programs from backup, as the board itself typically does not contain the machine-specific data.
Typical Application:
-
Serves as the master controller in FANUC CNC systems controlling up to 6 axes (depends on software and option cards).
-
Interfaces with memory modules, I/O boards, spindle/servo electronics, operator displays, and peripheral communication modules.
