Description

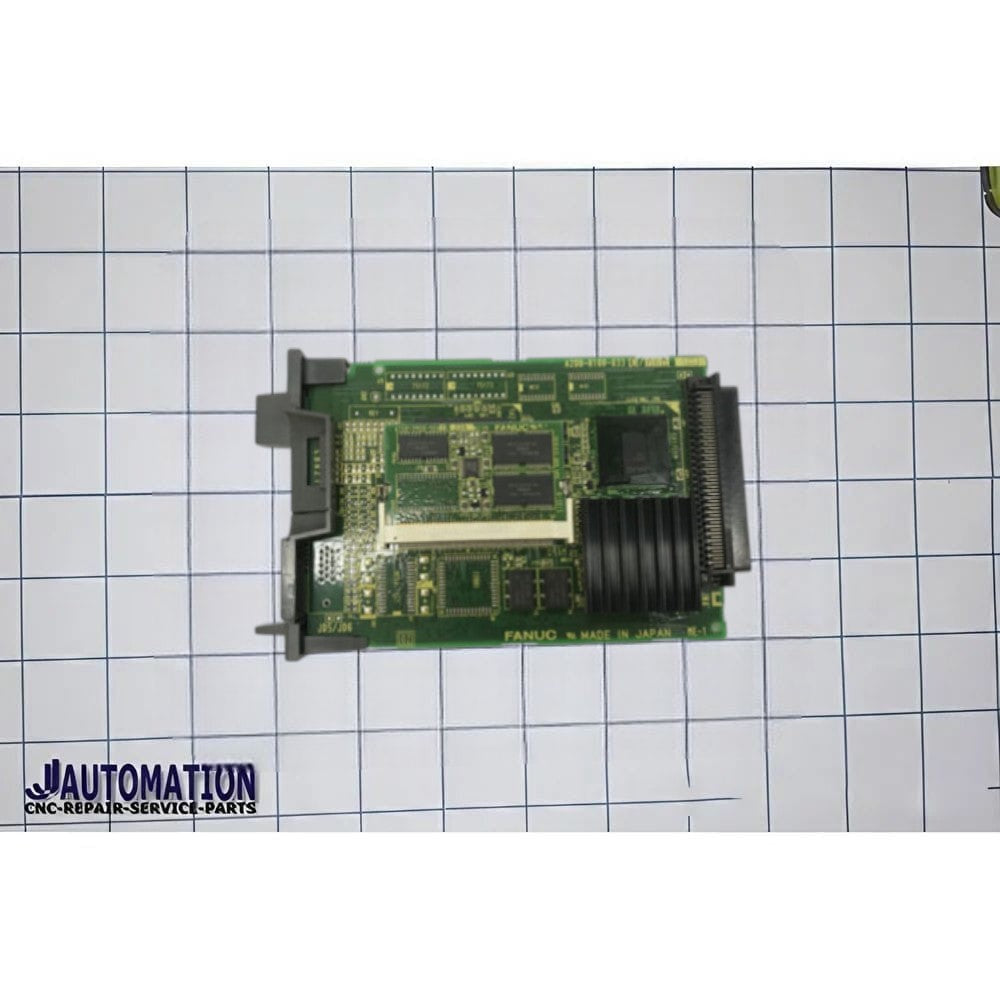

xThe A20B‑8100‑0336 is a communication interface printed circuit board used in industrial FANUC CNC controller systems to provide serial communications via the RS‑485 standard, often used for DNC (Direct Numerical Control) and other data transfer functions.
🔌 What This Board Does
-
RS‑485 / DNC1 Serial Communication Module: This board adds a robust RS‑485 serial communication port to a FANUC controller, allowing the CNC to communicate with external devices such as PCs, DNC hosts, PLCs, or other automation systems over a multi‑drop, industrial‑grade serial network.
-
Part of the A20B‑8100 Family: FANUC’s A20B‑8100 series includes various option and interface cards for controller systems — such as serial communications, Profibus, DeviceNet, etc. This particular variant (0336) is designated for RS‑485/DNC1 operation.
-
Integration: Installed inside the CNC controller’s electronics cabinet in a dedicated communication slot or backplane connector, where it interfaces with the controller logic and other PCBs.
🛠 Typical Use
This board is especially useful in setups where the CNC must exchange program data, status information, or custom messages with external systems — for example:
-
DNC networking with a host computer
-
Program uploads/downloads to and from a factory network
-
Communication with PLCs or other automation equipment using RS‑485 signaling
⚙️ Practical Notes
-
🧰 Core Exchange: Some suppliers require you to return your old core board when purchasing a replacement.
-
🛠 Repair Availability: Repair options may be limited or not offered by some vendors — often you’ll find refurbished or tested boards instead.
-
📡 Not a CPU or motion board: This part does not perform motion control or CNC core processing, but strictly communication tasks.
