Fanuc Controller for 0i-C A02B-0309-B522

📌 Overview

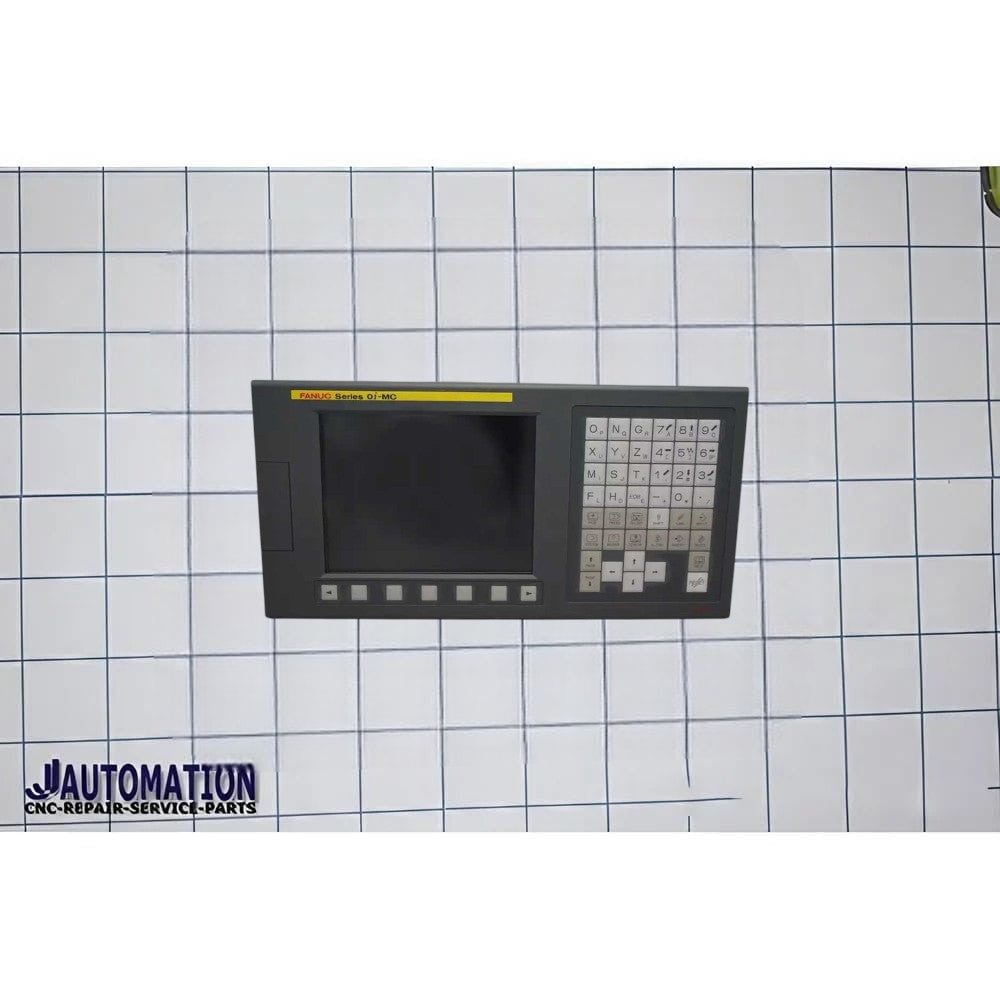

FANUC A02B‑0309‑B522 is a basic control unit used in FANUC’s 0 i‑C / 0 i‑MC series CNC controller systems. It serves as the operator interface / control chassis for a CNC controller, forming the main structural/control backbone on which other boards and modules are installed to create a complete CNC control system.

🧠 Description

• Type: Control basic unit / operator interface unit for FANUC Series 0 i‑C CNC controls.

• Role: Acts as the core controller housing and interface panel — often including slots for installing additional PCBs (CPU board, I/O boards, memory, etc.).

• Operator Interface / MDI: Designed to support manual data input (MDI) and display functions, providing interaction for the machine operator.

• Slots/Expansion: Typically includes two slots for additional CPU and expansion cards required to complete the control system.

• Software: Because it’s a basic unit, it generally requires a complete set of PCBs and software (reload of controller software) before full CNC functionality is available.

⚙️ Typical Application

This unit is used as part of the CNC control assembly on machine tools such as:

• Machining centers

• Milling machines

• Drilling machines

• Other automated CNC systems that utilize FANUC’s Series 0 i‑C controls.

🛠️ Key Points

• Standalone role: It acts as the basic frame/interface but does not include all necessary functional PCBs (you add CPU, axis cards, I/O modules, etc.).

• Operator interaction: Often referred to as the operator interface unit because it supports display and input (MDI) features.

• Modular controller: Installation of additional modules and software is needed to make it a complete operational CNC controller.

• Discontinued: New units may be discontinued by FANUC, but they remain widely available through third‑party vendors and repair/refurbish markets.
