Description

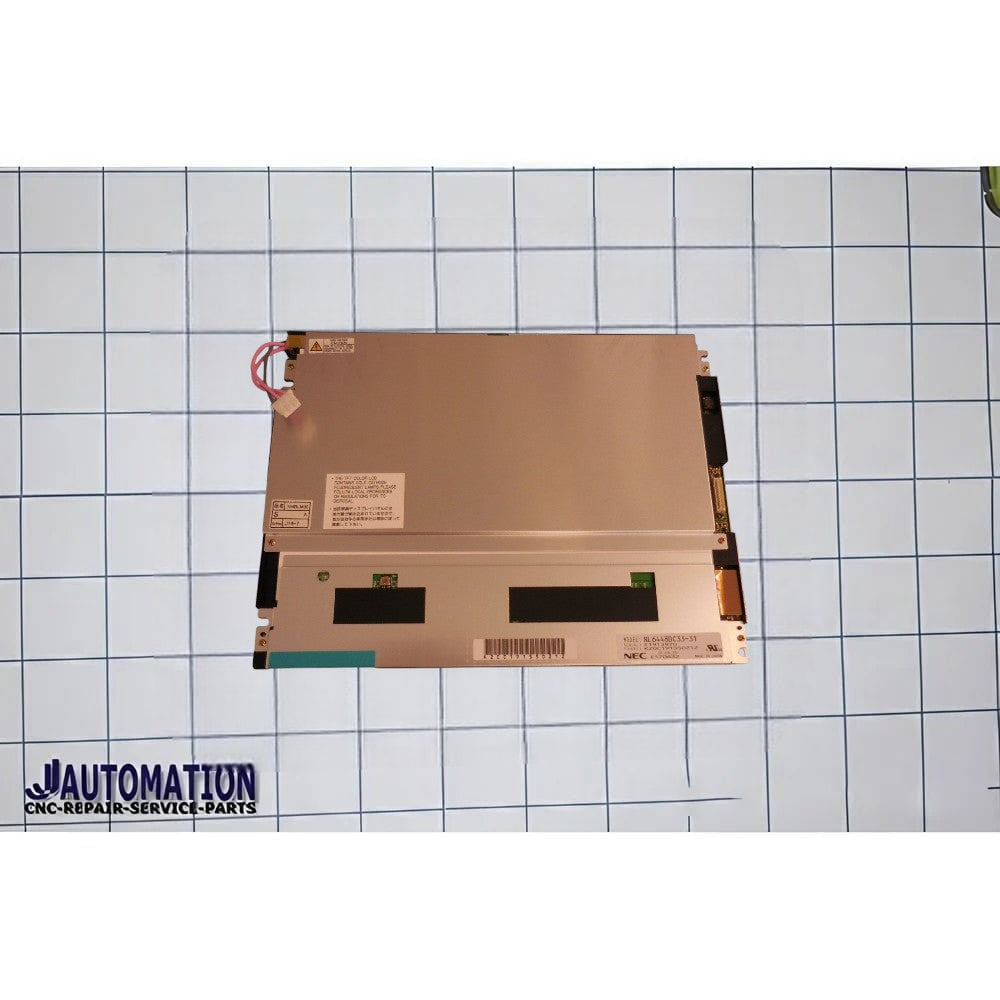

NEC NL6448BC33‑31 is a 10.4-inch color LCD display panel used mainly in industrial and embedded applications. It’s a TFT LCD module — the kind of screen you’d find in machine HMIs, control systems, process displays, etc.
📊 Basic Specs (from datasheet)
• Size: 10.4 inch diagonal TFT LCD panel
• Resolution: 640 × 480 (VGA)
• Colors: ~262K (6-bit RGB)
• Brightness: ~350 cd/m² (typical)
• Contrast Ratio: ~350:1 (typical)
• Panel Type: a-Si TFT-LCD, transmissive, normally white
• Backlight: Two CCFL lamps (Cold Cathode Fluorescent, replaceable)
• Signal Interface: CMOS 31-pin digital RGB
• Viewing Angles approx: 50/50/40/45 (L/R/U/D)
• Operating Temp: 0 °C to 50 °C; Storage: -20 °C to 60 °C
• Active area: ~211.2 × 158.4 mm
➡️ These types of panels are typically supplied without a housing, controller board or touch overlay — ideal for integration into a device or custom system.
