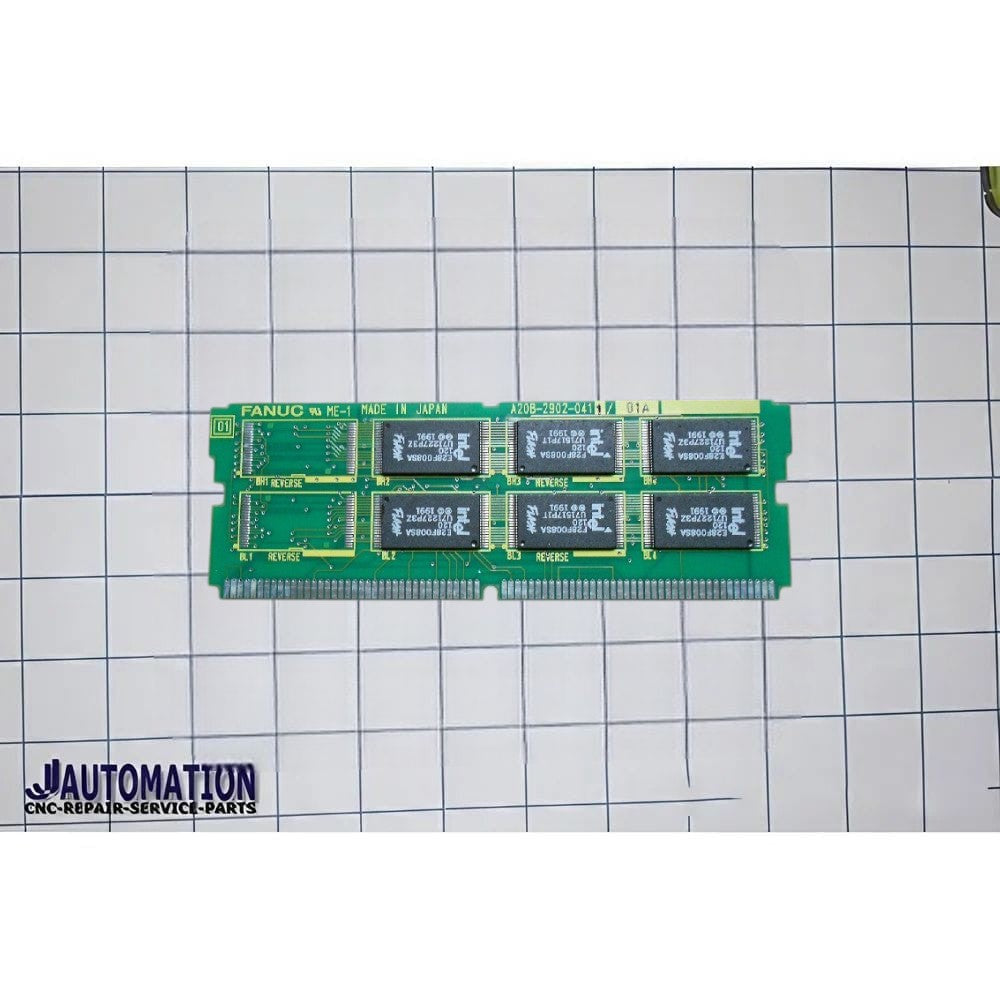

📌 FANUC A20B‑2902‑0411 — 6 MB Flash ROM + 256 KB SRAM Memory Module
Description:
The A20B-2902-0411 is a combined memory module used in FANUC CNC control systems. It includes both Flash ROM (FROM) and static RAM (SRAM) on a single board:
-
🧠 Flash ROM: 6 MB non-volatile memory used to store the CNC controller’s firmware, system code, and essential program storage.
-
💾 SRAM: 256 KB static RAM used as working memory for runtime data, buffering, and parameters.
This memory module is part of the A20B-2902 product family and typically fits into the memory subsystem of FANUC CNC controllers, especially older or mid-generation systems such as Series 16, 18, and 21-series machines.
Function & Use:
-
Acts as core system memory — the controller uses the Flash ROM to load essential firmware and the SRAM as operational memory while the machine is running.
-
Without this module installed and correctly loaded with the required files, the CNC cannot boot or operate normally.
-
This module is commonly replaced or upgraded when the CNC loses stored programs, faults on memory errors, or requires more storage than the original memory board provided.
Important Notes:
-
🔄 After installing or replacing this module, you must reload all FROM files, parameters, and part programs from backup into the CNC — because the SRAM portion is volatile and the Flash ROM may not contain the machine’s specific data.
-
Availability may vary; some suppliers do not accept core exchange or repair on this part, so confirm with your vendor.
