Description

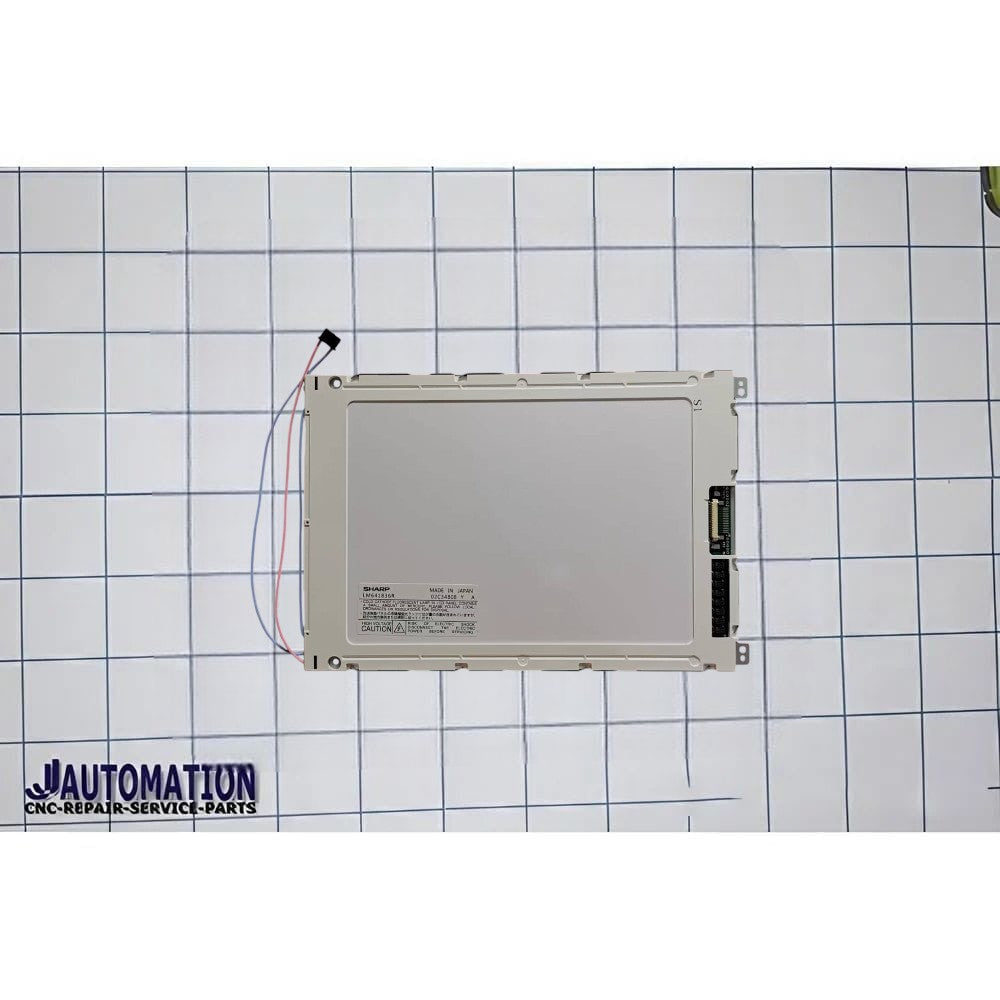

The LM64P1836 is a 9.4‑inch monochrome LCD module built on FSTN (film‑compensated super‑twisted nematic) technology and commonly used in industrial, embedded, or legacy equipment. It’s typically listed under similar model numbers like LM641836 and other LM64P variants from Sharp, offering essentially the same display specs.
🔎 Key Characteristics
-
Panel Size: 9.4 inch diagonal
-
Resolution: 640 × 480 (VGA) – classic industrial resolution
-
Display Type: FSTN monochrome LCD (black & white, transmissive)
-
Backlight: CCFL backlight required (lamp included on panel but driver/inverter often separate)
-
Pixel Configuration: Rectangle (standard orientation)
-
Signal Interface: Parallel Data (4‑bit) often through a multi‑pin connector
-
Active Area: ~191.97 × 143.97 mm
-
Display Mode: STN‑type black/white (high contrast for text/graphics)
