Description

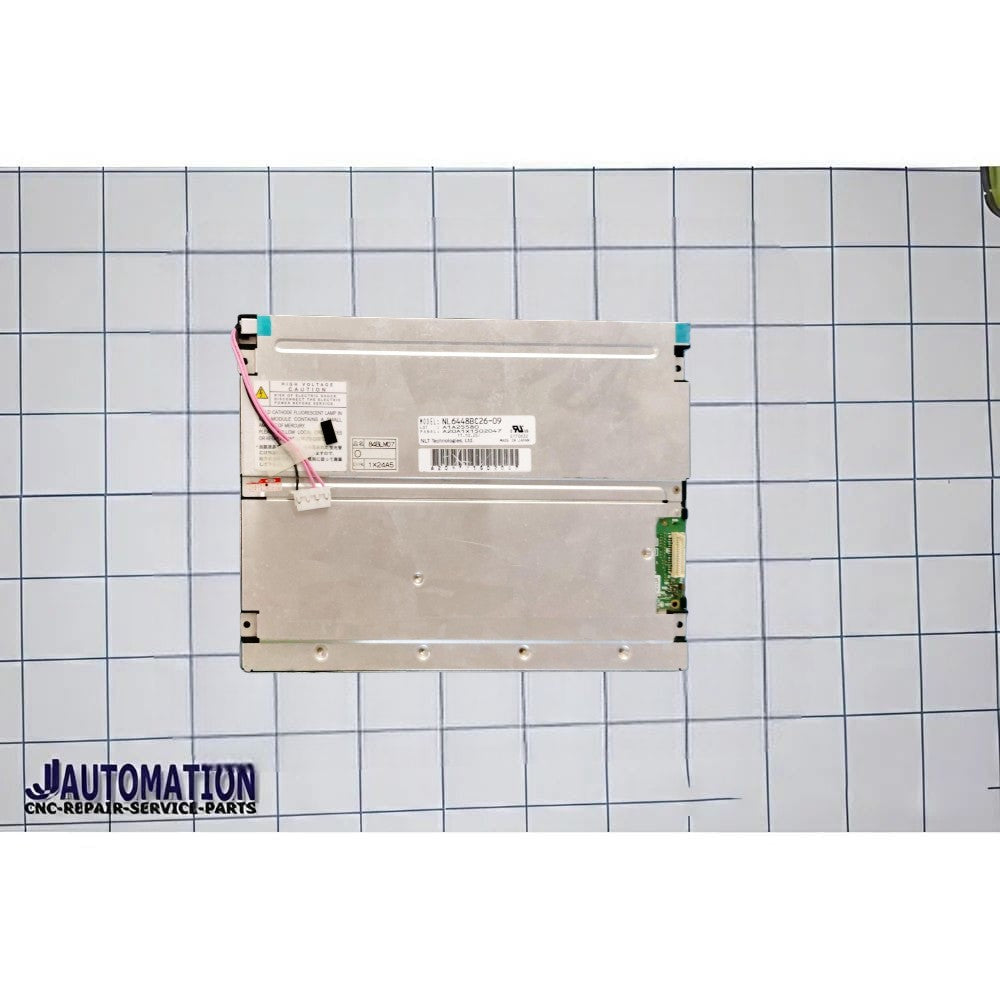

The NEC NL8060BC26‑35C-35D (closely related to the NL8060BC26-35 variant) is a 10.4-inch industrial-grade TFT LCD display module originally from NEC / NLT Technologies. It’s designed for embedded systems, industrial equipment, HMIs, and other professional applications, not as a finished consumer monitor.
📊 Core Specifications
-
Display Size: 10.4 inch diagonal (~26 cm)
-
Resolution: 800 × 600 (SVGA) 4:3 aspect ratio
-
Panel Type: a-Si TFT-LCD, TN (transmissive, normally white)
-
Display Colors: ~262 K (6-bit) / up to 16.7 M with FRC
-
Brightness: ~400 cd/m² (typical)
-
Contrast Ratio: ~900 : 1 (typical)
-
Viewing Angles: ~80° L/R/U/D (CR ≥ 10)
-
Response Time: ~3 ms (rise) / ~15–18 ms (fall)
-
Active Area: ~211.2 × 158.4 mm
-
Module Dimensions: ~243.0 × 185.1 × 11 mm
-
Signal Interface: LVDS (1 ch 6/8-bit), 20-pin
-
Backlight: WLED (3 strings), ~70,000 h life
-
Operating Temp: ~-30 °C to +80 °C
-
Surface: Anti-glare + hard coating (3H)
-
Weight: ~475 – 500 g (typ.)
