📊 Product: NL6448BC26-27 Industrial LCD

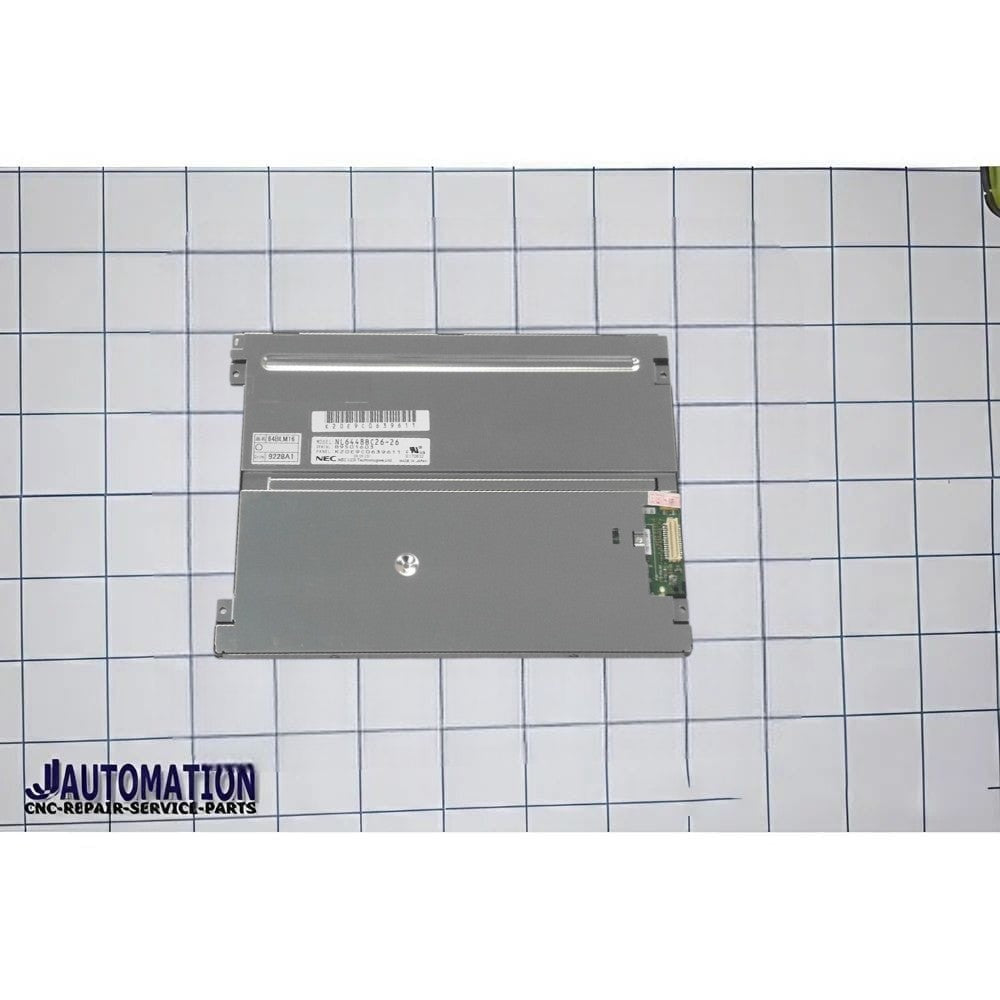

NEC NL6448BC26‑27 LCD Module is an 8.4-inch industrial LCD module widely used in industrial automation, embedded systems, medical instruments and control panels.
📌 Key Features
-
Display Size: 8.4″ diagonal (approx. 170.88 × 128.16 mm active area)
-
Resolution: 640 × 480 pixels (VGA) — standard industrial size for readable graphics and text.
-
Panel Type: a-Si TFT LCD, TN mode (landscape orientation).
-
Brightness: ~500 cd/m² (typical) — readable in moderately bright environments.
-
Contrast Ratio: ~1000:1 — good for clarity and depth.
-
Colors: 262 K / 16.7 M colors (depends on bit-input selection).
-
Interface: LVDS (1-port, selectable 6-bit/8-bit) digital interface.
-
Backlight: White LED with ~70 000 hours lifetime, replaceable.
-
Viewing Angle: ~80° left/right/up/down.
-
Operating Temp: −30 °C to +80 °C for industrial environments.
-
Size & Weight: ~200 × 152 × 8.2 mm, ~260 g.
