Description
Here’s a detailed look at the LQ084V1DG44 industrial LCD panel from Sharp, a commonly used display module in embedded and CNC/automation systems:

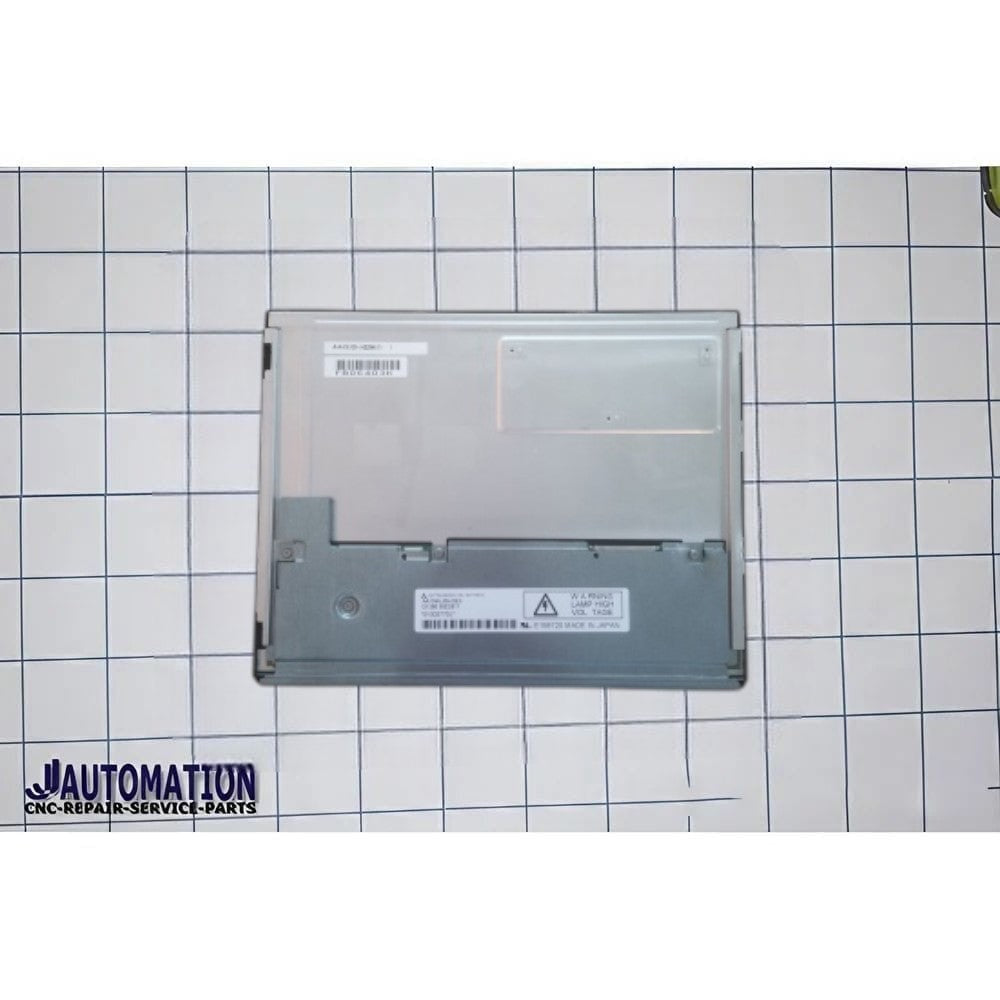

📺 Sharp LQ084V1DG44 – 8.4″ Industrial LCD Panel
The LQ084V1DG44 is an 8.4-inch a-Si TFT-LCD display module intended for industrial and embedded applications. This is a bare LCD panel (no case, controller board, or touchscreen) — ideal for integration into machines, HMIs, CNC panels (e.g., Fanuc), or custom equipment.
🧠 Core Specifications
-
Display Size: 8.4 inch diagonal (landscape)
-
Resolution: 640 × 480 (VGA, 95 PPI)
-
Panel Type: a-Si TFT-LCD (TN, transmissive, normally white)
-
Active Area: 170.88 × 128.16 mm
-
Display Colors: ~262 K colors (6-bit)
-
Pixel Format: RGB vertical stripe
-
Backlight: WLED edge-lit (LED)
-
Signal Interface: Parallel RGB (1 ch, 6-bit)
-
Display Mode: TN / Normally White / Transmissive
-
Touchscreen: ❌ Not included
