Description

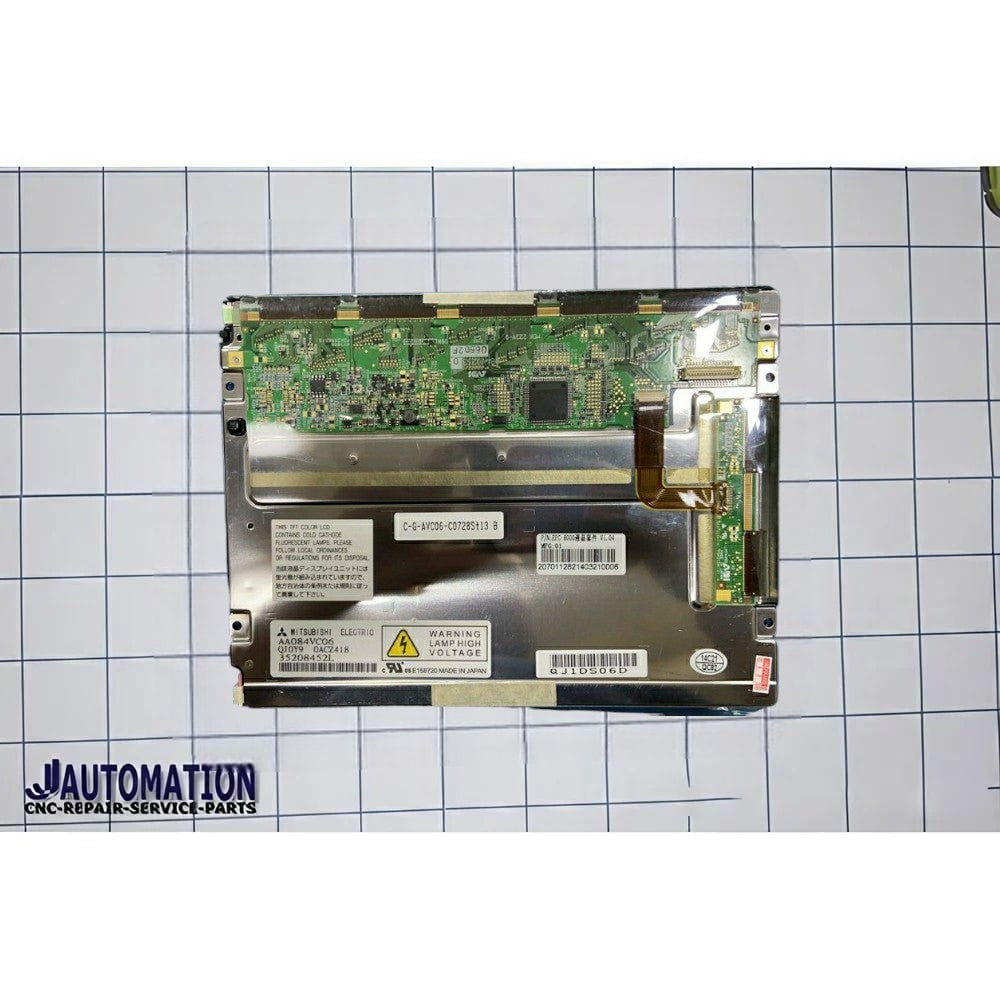

The AA084VC06 is an industrial‑grade LCD module from Mitsubishi (now often supplied through panel specialists). It’s a bare display panel designed to be integrated into embedded systems, industrial machines, HMIs, CNC/PLC panels, and other equipment — not a complete monitor.
🔍 Key Specifications
-
Screen Size: 8.4 inch diagonal (standard 4:3)
-
Resolution: 640 × 480 (VGA)
-
Panel Type: a‑Si TFT‑LCD (TN), transmissive, normally white
-
Display Colors: ~262K (6‑bit)
-
Pixel Format: RGB vertical stripe
-
Active Area: ~170.88 × 128.16 mm
-
Signal Interface: CMOS (1 ch, 6‑bit Parallel RGB), 31‑pin connector
-
Backlight: 1 × CCFL lamp (Cold Cathode Fluorescent; driver not included)
-
Refresh Rate: 60 Hz
-
Display Mode: TN, normally white, transmissive
-
Usage: Industrial PCs, embedded systems, control panels, OEM integrations
