Description

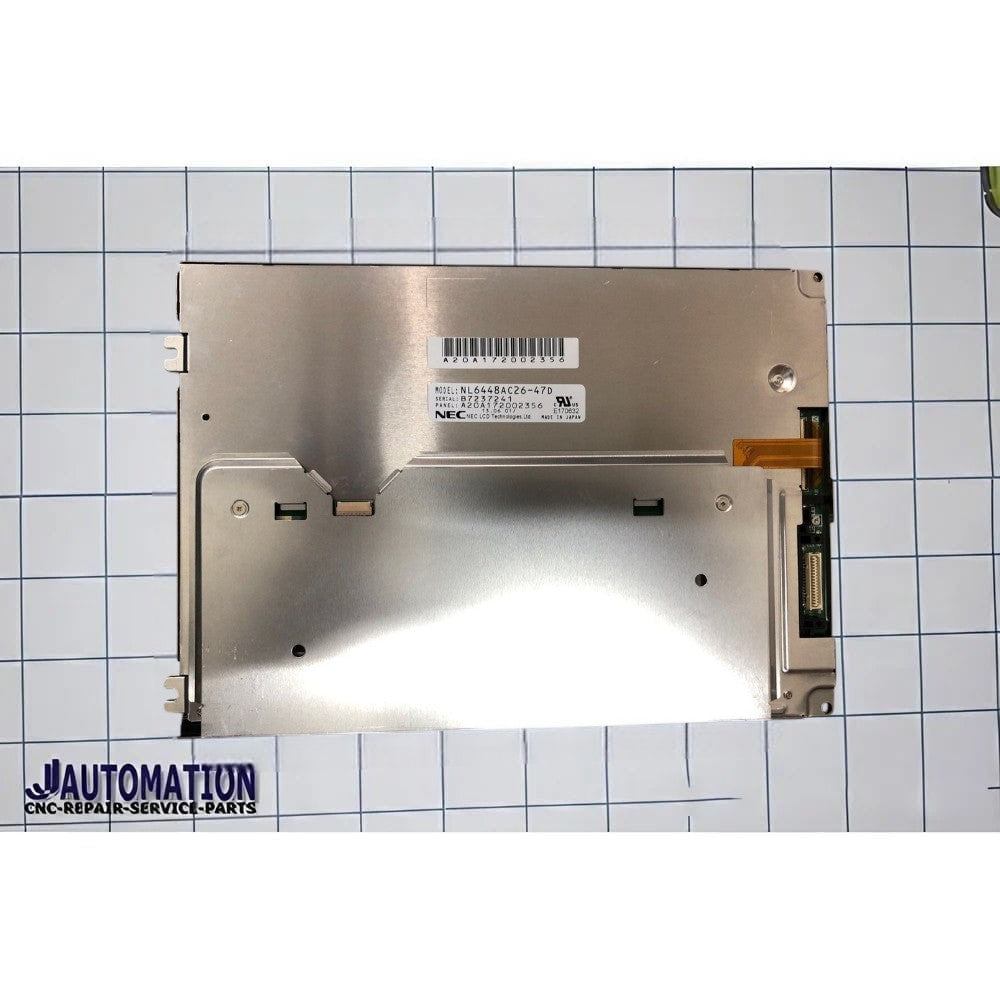

NL6448AC26-47D Industrial LCD Panel
The NL6448AC26-47D is an industrial-grade LCD display module, typically used in embedded systems, machine displays, CNC controllers, industrial PCs, and other specialized equipment where a robust, standalone panel (without a housing or touch interface) is needed.
📌 Core Specifications
-
Screen Size: 8.4 inch diagonal (21 cm)
-
Resolution: 640 × 480 (VGA), 4:3 aspect ratio
-
Panel Type: a-Si TFT-LCD (transmissive, normally white)
-
Display Colors: 262 K (6-bit)
-
Brightness: ~310–380 cd/m² (typical)
-
Contrast Ratio: ~1000 : 1 (typical)
-
Viewing Angles: ~80° left/right/up/down
-
Backlight: White LED with very long life (~100,000 hours) and integrated LED driver
-
Signal Interface: CMOS (1 ch, 6-bit RGB), 31-pin connector
-
Physical Dimensions: ~221 × 152.4 × 9.0–9.5 mm (W×H×D)
-
Active Area: ~170.88 × 128.16 mm
-
Surface: Anti-glare matte finish
-
Operating Temperature: approx. -20 °C to +70 °C (some sources note up to +80 °C)
-
Storage Temperature: approx. -30 °C to +80 °C
-
Weight: ~285 g typical
-
Touchscreen: ✖️ No touchscreen included (panel only)
