Description

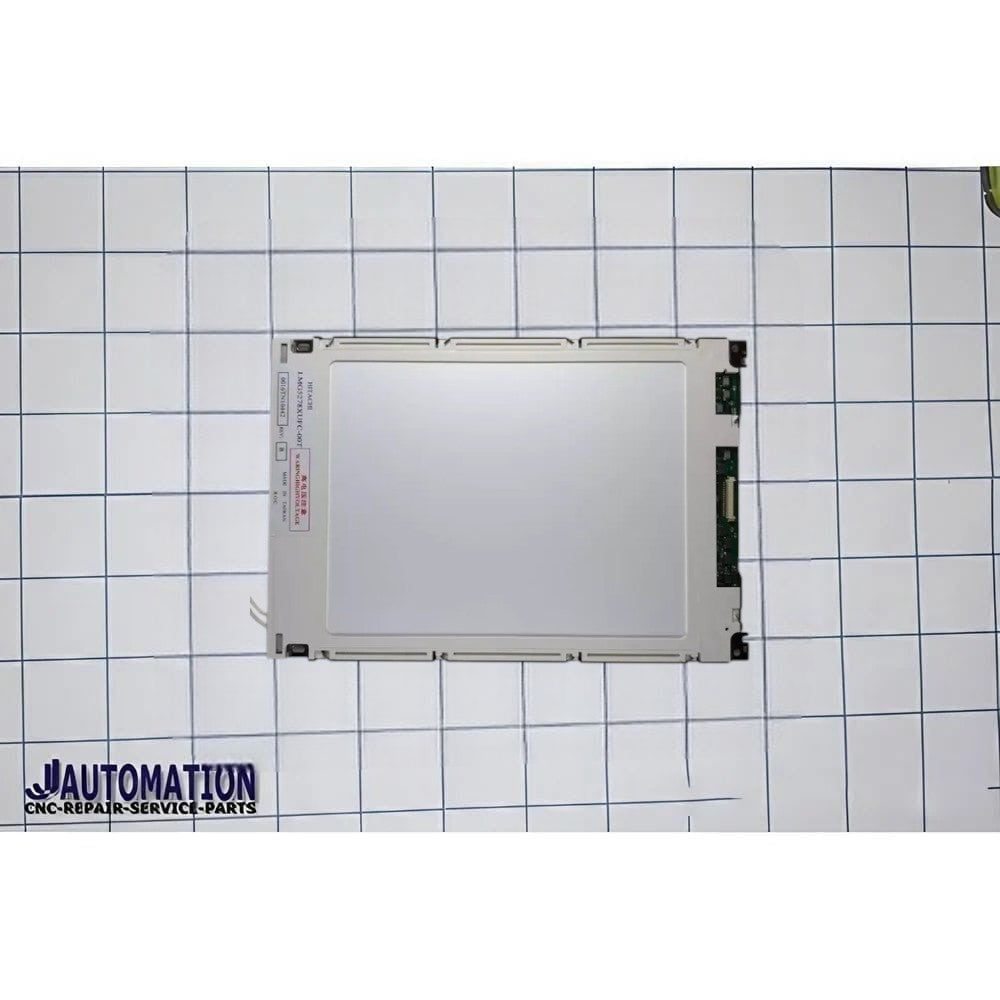

The LMG5278XUFC-00T is a 9.4-inch industrial monochrome LCD module originally produced by Hitachi (later Kaohsiung Hitachi Electronics) and supplied through various industrial parts vendors. It’s designed for use in industrial equipment, embedded systems, HMIs, and legacy hardware — not as a consumer display screen.
🧠 Key Specifications
-
Display Size: 9.4 inch diagonal
-
Resolution: 640 × 480 (VGA) – 84 PPI
-
Display Type: FSTN (Film Super Twisted Nematic) LCD — black & white (monochrome)
-
Display Mode: STN, Black/White (Negative), transmissive
-
Active Display Area: ~191.97 × 143.97 mm
-
Brightness: ~60 cd/m² (typical)
-
Contrast Ratio: ~18 : 1 (typical)
-
Response Time: ~160 ms rise / ~110 ms fall
-
Backlight: 1 × CCFL lamp (Cold Cathode Fluorescent) — backlight driver not included
-
Interface: Parallel Data (4-bit) via 15-pin connector
-
Power Supply: 3.3 V / 5 V typical
-
Surface: Anti-glare, hard coating (3H)
-
Orientation: Landscape
-
Operating Temp: ~0 °C to +45 °C
-
Storage Temp: ~-25 °C to +60 °C
-
Outline Size: approx. 257.5 × 174 × ~7 mm
